ADAM Audio S2V

ADAM Audio S2V – Active Studio Monitor (Nearfield)

Ideal for use in demanding studio environments

High End Precision Studio Monitors

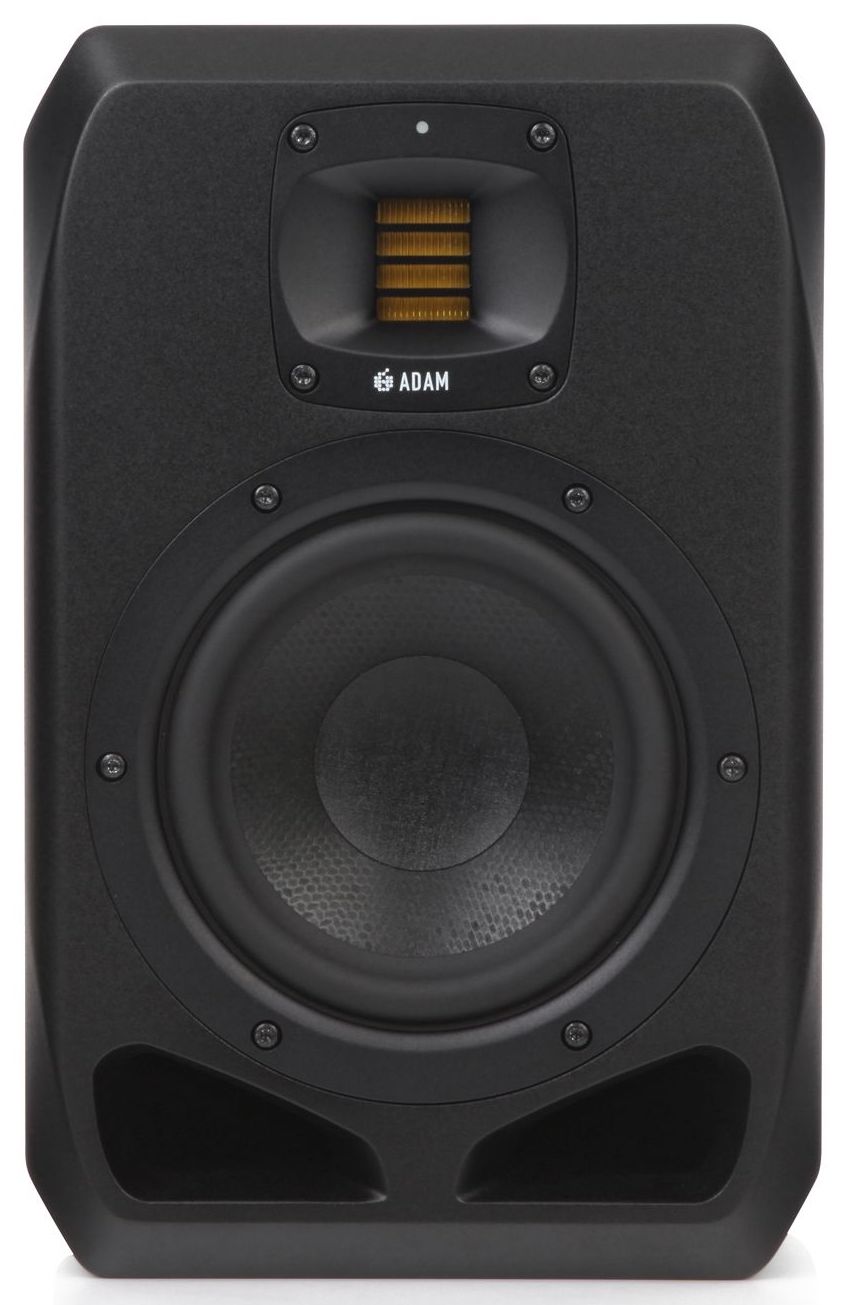

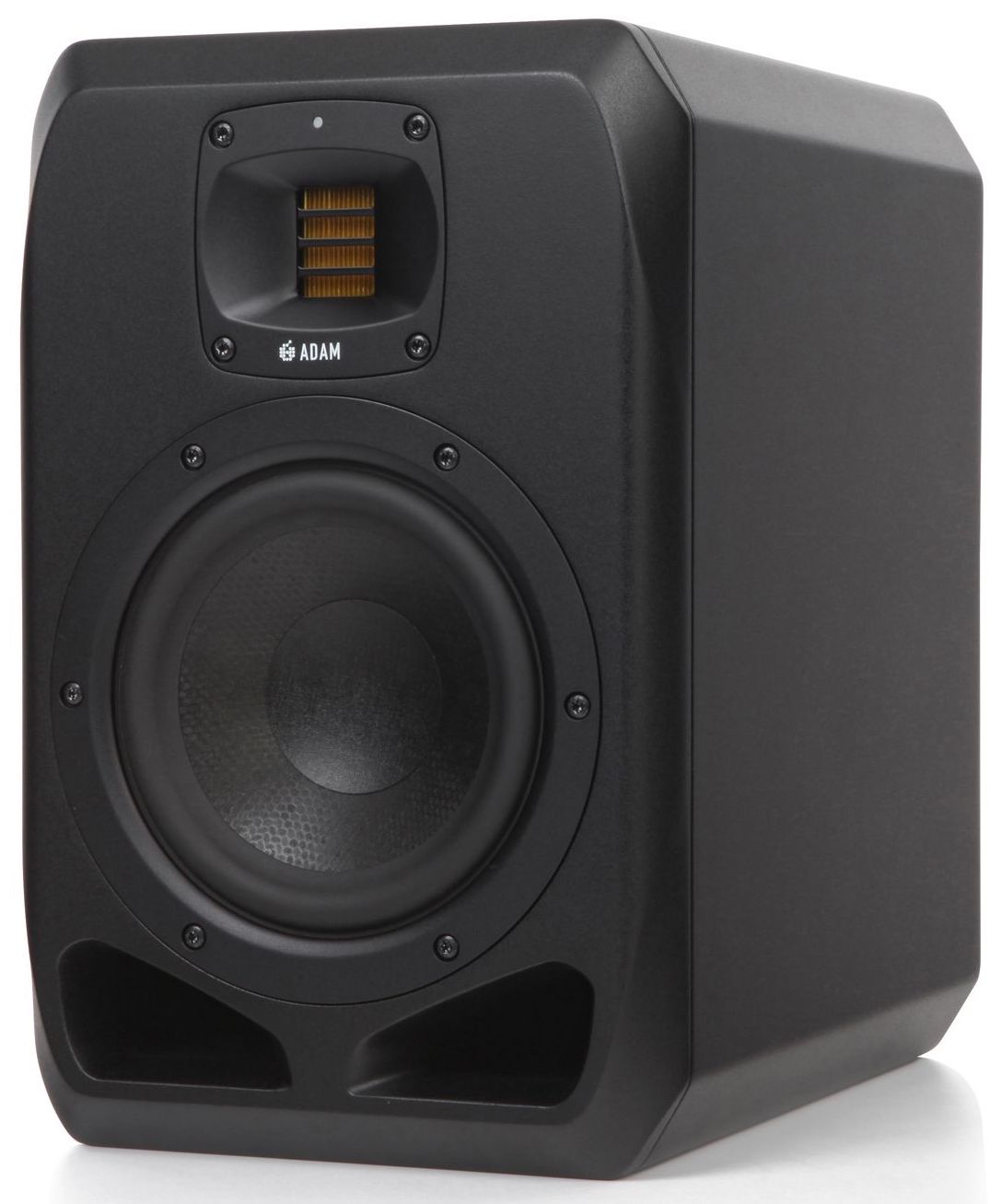

The S2V is a classic two-way nearfield monitor designed for use in small-to-medium-sized control rooms.

The 7-inch bass driver, newly created from the ground up for the S Series, covers frequencies ranging from 35 Hz to 3 kHz and delivers a powerful, distortion-free low-end with a wide dynamic range. The carefully refined S-ART tweeter, handbuilt as ever at the ADAM Audio factory in Berlin, works seamlessly in tandem with the newly developed HPS waveguide, creating absolutely precise imaging within a generously proportioned sweet spot.

The S2V’s compact dimensions belie its impressive power. A 300 W Class D amplifier drives the woofer while a 50 W Class A/B unit handles the S-ART tweeter; the combined output produces SPLs of up to 120dB per pair.

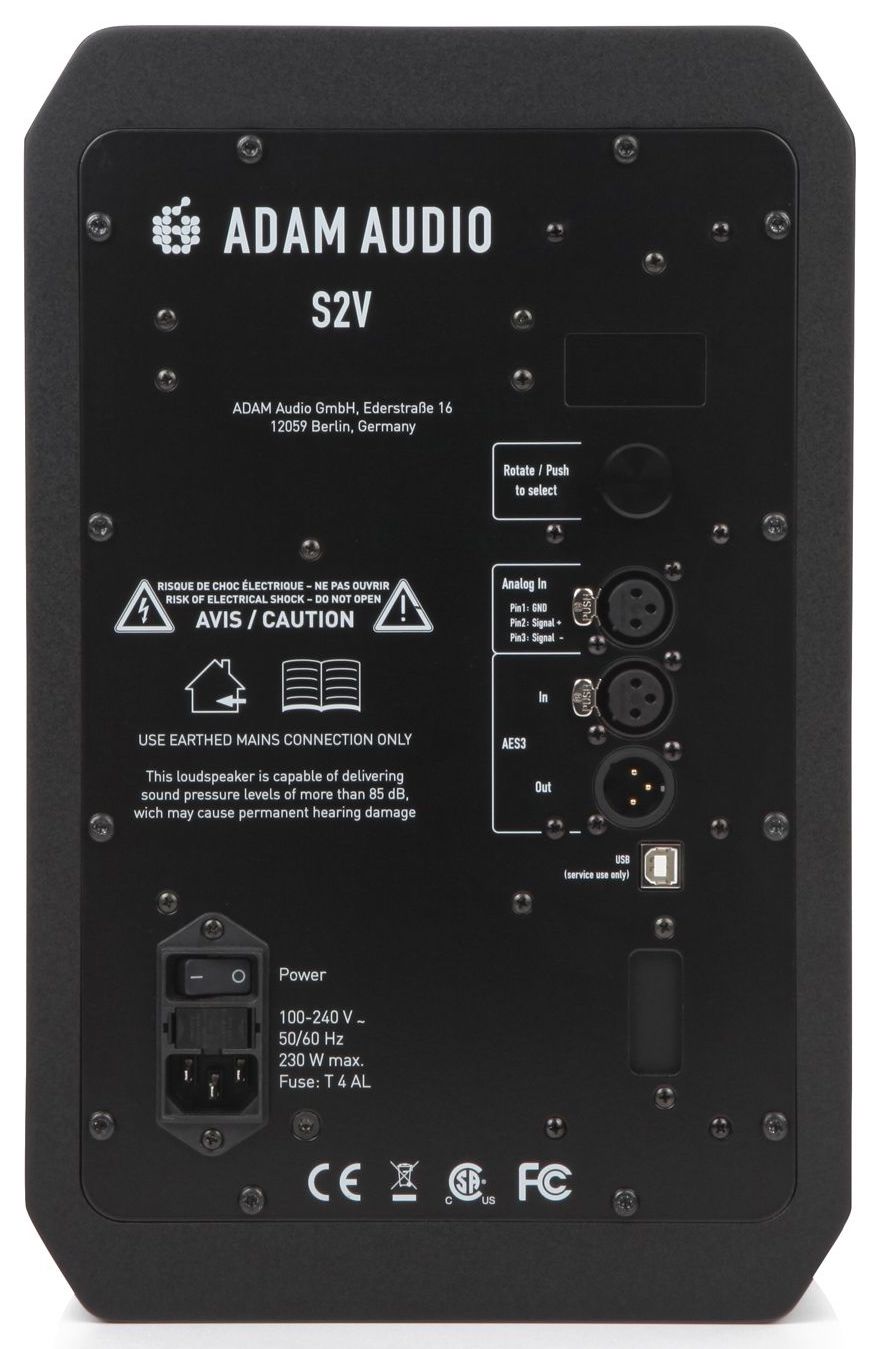

The S Series’ custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers’ DSP functions via a software front-end.

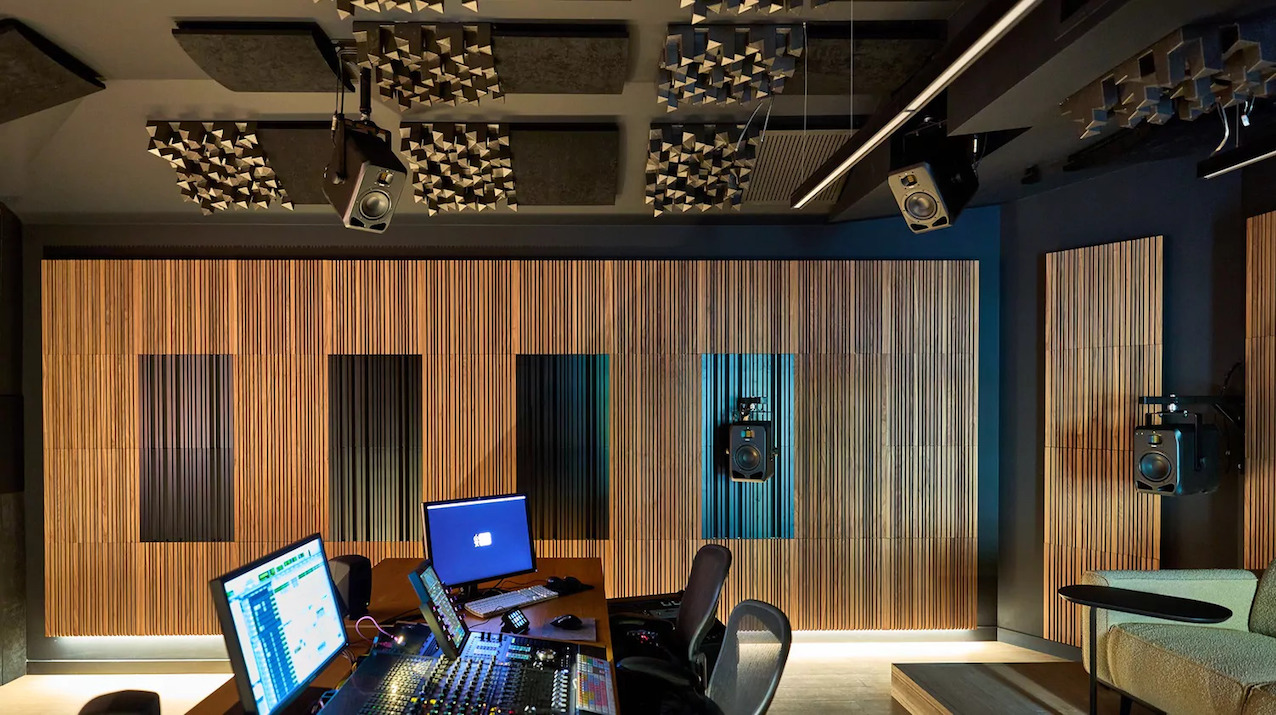

With its highly accurate frequency response and balanced, razor-sharp imaging, the S2V allows users to pinpoint even the most subtle audio details, making it an ideal choice for use in demanding studio environments.

ADAM Audio S Series

The S Series is ADAM Audio’s new flagship reference monitoring range, comprising five models of increasing size: S2V, S3H & S3V and the S5H & S5V (H denotes a speaker designed optimally for horizontal use, V the vertical version). The range is the combination of many years of advanced in-house engineering innovation at ADAM and the latest computer aided design techniques, and does not employ off-the-shelf loudspeaker technology.

Innovations created specifically for the S Series include: completely new woofers and mid-range drivers, newly designed waveguides for the S Series tweeter (and the mid-range driver on the S5 models), and a new DSP engine which provides crossover optimization, voicing options and expansion potential.

The result of all this technical effort is a set of loudspeakers with an accurate frequency response and wide, consistent dispersion, offering enhanced detail in the bass and mid-frequencies, and high overall performance. The range operates over wider frequency ranges compared to previous ADAM Audio designs – so there’s more bass extension and critical mid-range information, with a raised overall maximum output level but reduced distortion. The S Series also offers forward-looking digital connectivity alongside its analog connections.
