Antelope Audio Atlas i8

Antelope Audio Atlas i8

3 weg actieve monitoren

Nieuw

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

A NEW SONIC VOYAGE

Antelope Audio’s first ever studio monitor is designed to provide a cutting-edge modern solution for every studio. Atlas i8 delivers extended low-end frequencies and soaring sound pressure levels thanks to its secret weapon – two 8-inch woofers configured in an isobaric design. Atlas i8 brings sonic accuracy, pinpoint imaging and a fatigue-free listening experience as a result of meticulous acoustical engineering along with decades of research and development in the field of digital signal processing.

Less space, more bass.

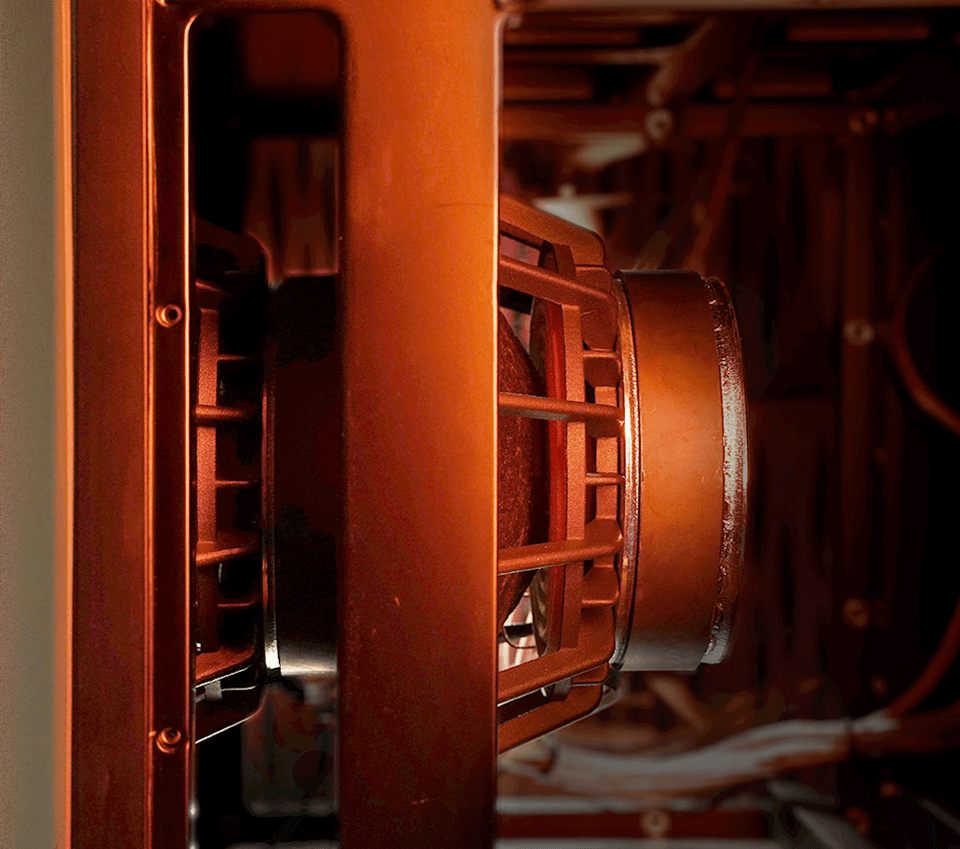

Two 8-inch woofers, one behind another, sealed in an isobaric configuration, deliver unrivaled power and detailed low-frequency response. The isobaric design drastically reduces both cabinet size and air volume without sacrificing performance even when Atlas i8 is pushed to the absolute limit.

Fidelity first.

To achieve flat and time-aligned frequency response a proprietary digital processing system has been developed to run inside FPGA chips with FIR and IIR filters, thus providing a deep and focused stereo image, precise transients and fatigue-free studio sessions. The Atlas i8 is calibrated during the manufacturing process and tested thoroughly to deliver optimal performance.

SOFTWARE
CONTROL PANEL

The software control panel unleashes the full potential of the Atlas i8. Onboard processing allows various workflow enhancement options such as EQ, dim, mute, volume control, delay offset and preset management.

feature in development

COLOR DISPLAY
WITH ADVANCED SETTINGS

A color display alongside a rotary knob to the rear of Atlas i8 provides access to main settings like volume, routing, EQ, bass modes and preset recall with just a couple of steps.

AES I/O
AND ANALOG CONNECTIVITY

Alongside the standard analog connections in both XLR and TRS configurations, an AES/EBU digital input and output provide wider connectivity options: Bypass your interface’s D/A conversion; or daisy chain two monitors with ease.

MOUNTABLE

Optional mounting plate adapter (VESA 100x200mm) standard is available, making wall or ceiling placement for multi-speaker Surround and Atmos™ setups simple and elegant.

4-BAND EQUALIZER

Room matching can be further enhanced using the color display and rotary knob via a user-friendly 4-band EQ. Reduce low frequency band boosts in some room monitoring situations or tailor high frequencies to avoid desktop reflections.

DELAY OFFSET FOR DISTANCE

Atlas i8’s Delay Offset feature allows the distance between the sweet spot of two monitors to be compensated if there is a difference in order to achieve an optimal stereo image.

CLEAN AND ACCURATE LOW-END

• Isobaric bass configuration reduces cabinet size while maintaining optimal performance

• Two 8-inch woofers for precise low-end with minimum distortion even on high SPL

• Custom Class-D amplifier with low noise & harmonic distortion

• Thick 18mm cabinet with extra reinforcement, preventing any unwanted resonance frequencies

SIGNATURE SOUND QUALITY

• Digital calibration using FIR and IIR filters providing time-aligned neutral frequency response

• Coaxial driver for a single point axis response, also allows both horizontal and vertical positioning

• Proprietary 64-bit Acoustically Focused Clocking technology

• Ultra-accurate A/D and D/A conversion ensuring transparent and neutral signal

• 192kHz sample rate ensuring pristine conversion

WORKFLOW ENHANCING FEATURES

• Parametric EQ for frequency adjustments

• Software control panel for easy access to main features

• Color display with settings menu

• Delay offset to compensate for distance from the sweet spot

• AES digital I/O allowing daisy chain

• Optional mounting plate for wall/ceiling mount

TECHNICAL SPECIFICATIONS

• Frequency range: 35 – 20 000 Hz

• Max SPL: 117dB at 1 m with one speaker

• Amp wattage: 400W (200W low + 100W mid + 100W high)

• Input connectors: Analog XLR/TRS; Digital AES/EBU

• Output connectors: Digital AES/EBU

• Driver sizes: LF: 2×8″ isobaric, MF: 5,5″, HF: 1,5″ coaxial

• Speaker configuration: Three-way

• Active

• AD/DA converter: 24-bit/ 192 kHz

• Equalization: Digital parametric

• Enclosure Type: Front ported

• Dimensions: W 292 mm, D 387 mm, H 500 mm

• Weight: 24 kg

ADDITIONAL MEASUREMENTS

Coming soon

IN-THE-BOX CONTENT

• Atlas i8

• Power supply cable

• USB type A to B cable

• Getting Started leaflet

SYSTEM REQUIREMENTS

For minimum system requirements visit the antelope support portal
