Product is toegevoegd aan uw winkelwagenAntelope Audio Pure 2
High end mastering converter met 10 Mhz atomic clock.
2 kanaals mastering converter
Product omschrijving
DIGITAL CLARITY, ANALOG WARMTH
Pure2 is a high-end mastering converter, powered by Antelope Audio’s legendary clocking and pristine analog circuitry
Pure2 is a mastering-grade 24-bit, 192 kHz AD/DA 2-channel converter and master clock that includes a relay-controlled volume attenuator. It features Antelope Audio’s world-renowned Acoustically Focused Clocking (AFC) technology, and also utilizes pristine analog circuitry, driven by a proprietary multi-stage linear power supply for unsurpassed digital clarity and analog realism.
FIVE HIGH-PERFORMANCE COMPONENTS:
A/D CONVERTER WITH OPTIMIZED OVERLOADS HANDLING
The famous Burr-Brown (TI) A/D converter PCM4222 is unsurpassed in terms of sound quality and performance.
D/A CONVERTER WITH DUAL DAC ARCHITECTURE
HIGH-END HEADPHONE AMP WITH A DEDICATED D/A CONVERTER
RELAY-BASED ANALOG VOLUME CONTROL FOR ACCURATE MONITORING
MASTER CLOCK WITH 4TH GENERATION OF ANTELOPE’S AFC JITTER MANAGEMENT
FLEXIBLE CONTROL

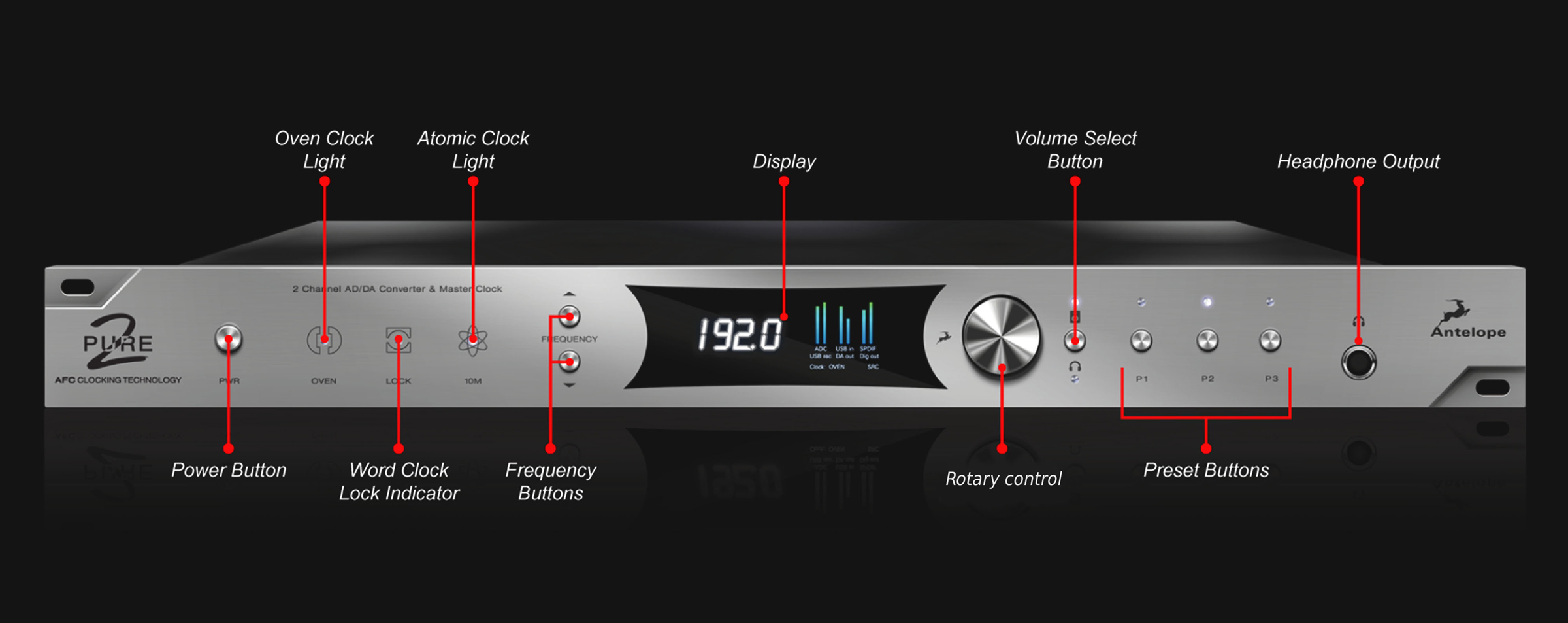

Access all Pure2 features via Mac & PC app or through the front-panel controls
All Pure2 features are available in an intuitive software control panel for Mac or Windows provides users the ability to manage all facets of the device operation. Pure2 is also configurable via the front panel with user-definable presets.
EASY LIFE
We know the engineer’s life is not a glamorous one. So we tried to make it easier.
You can set up Pure2 in a couple of minutes. All you actually need is one USB cable (provided in the box) and a laptop of your choosing (Win 7.1 or higher / Mac OSx 10.9 or higher) and you can start capturing stereo audio at 192 kHz.
After setting it up, just download the Control Panel, a few clicks and you’re set.
Product specificaties
| Analog Inputs | 2 x Combo Balanced Analog (XLR / 1/4 TRS) factory calibrated to +20dBu |
|---|---|
| Analog outputs | 1 x Stereo pair of Balanced XLR Outputs from D/A Converter (Main Output) is factory calibrated to 20dBu 1 x Stereo pair Balanced Outputs for monitors (2 x 1/4 TRS) 1 x 1/4 TRS Front Headphones 20dBu |
| digital inputs | 1 x AES/EBU on XLR (32kHz to 192kHz) @ 110 Ohms terminated 1 x S/PDIF on RCA (32kHz to 192kHz) @ 75 Ohms terminated 1 x TOSLINK on optical fiber: up to 96kHz |
| wordclock inputs | 1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz |
| ad/da converter | Dynamic Range: 122dB THD+N: -105dB, Main DAC Dynamic Range 127dB; THD+N -107dB Monitor DAC Dynamic Range 120dB; THD+N -103dB Headphones DAC Dynamic Range 120dB; THD+N -100dB |
| Clock Specifications | <+/-0.02 PPM, oven controlled at 64.5°C/ 148.1°F |
| Dimensions | 483mm(W) x 44mm(H) x 220mm (D) 19”(W) x 1.75”(H) x 8.66”(D) |
| weight | 3 Kg |
