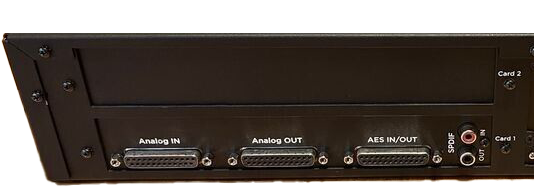

Apogee Symphony 8 x 8 MK 1 Module AES | B-stock

INPUTS

• Analog IN: 8 balanced inputs on 1 DSUB 25-pin connector
• *AES-EBU IN: 8 inputs on 1 DSUB 25-pin connector(192k single wide compatible)
• *Optical IN: Supports ADAT, SMUX & S/PDIF
• ADAT: 8 channels 44.1-48 kHz
• SMUX: 8 channels 88.2-96 kHz
• S/PDIF: 2 channels, up to 96 kHz
• Coax IN: 2 channels of S/PDIF, up to 192 kHz
• *Dig I/O hardware switch selects AES or Optical digital I/O format

OUTPUTS

• Analog OUT: 8 balanced outputs on 1 DSUB 25-pin connector
• *AES-EBU OUT: 8 outputs on 1 DSUB 25-pin connector
• (192k single wide compatible)
• *Optical OUT: Supports ADAT, SMUX & S/PDIF
• ADAT: 8 channels 44.1-48 kHz
• SMUX: 8 channels 88.2-96 kHz
• S/PDIF: 2 channels, up to 96 kHz
• Coax OUT: 2 channels of S/PDIF, up to 192 kHz
