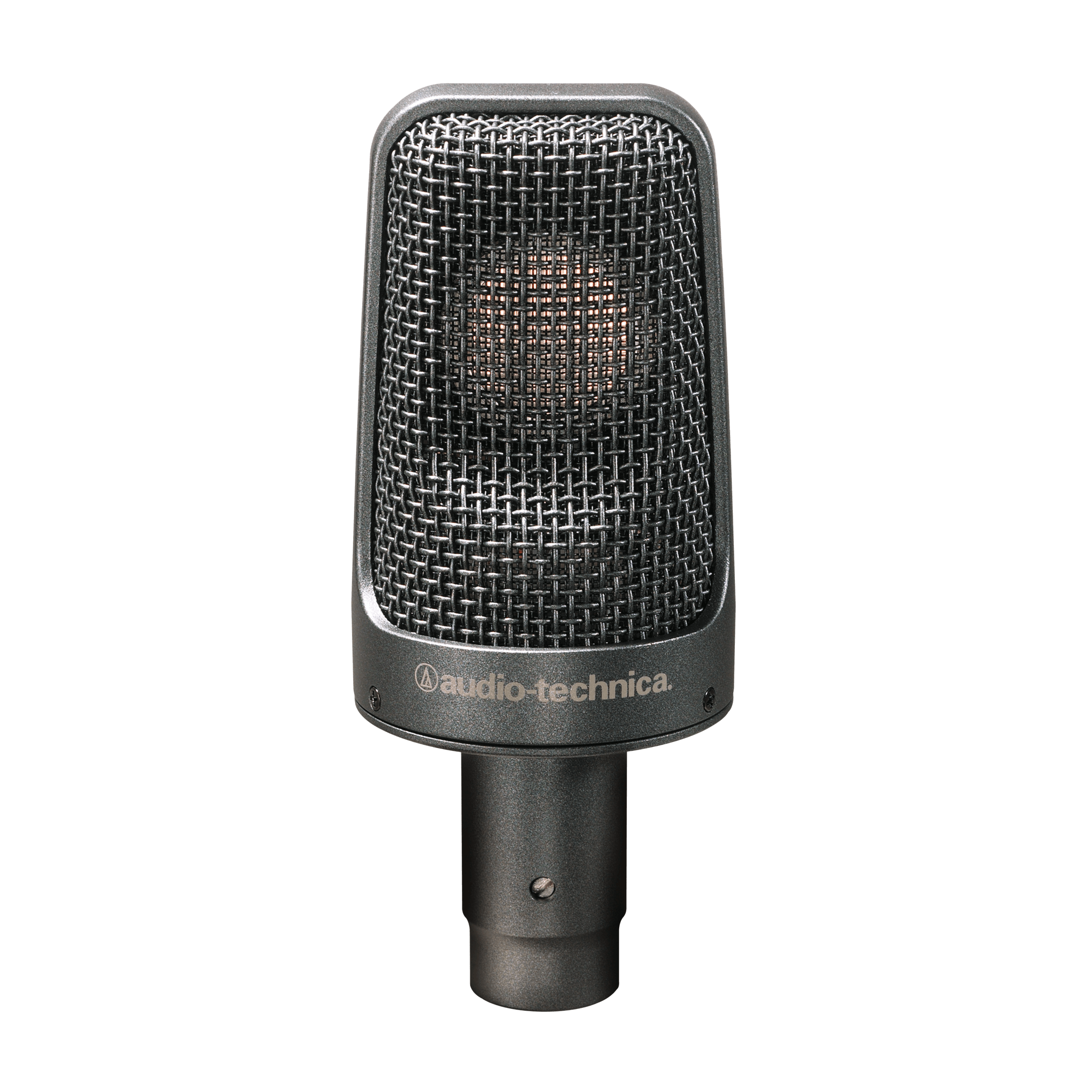

Audio Technica AE 3000

AE3000

the go-to microphone for all percussion instruments

Cardioid electret microphone offering exceptional sound performance on acoustic instruments. Designed to work at high sound pressure levels, the AE3000 proves indispensable for all percussive instruments. Its large diaphragm element excels with acoustic guitars, guitar amps, toms, overheads, percussion, snare, timpani and other acoustic instruments.

Compact, discreet, easy to position microphone

Small (at just 11.5cm), reaching up to 158dB SPL with the pad

10dB and 138dB dynamic low-cut filter at a featherweight 170g

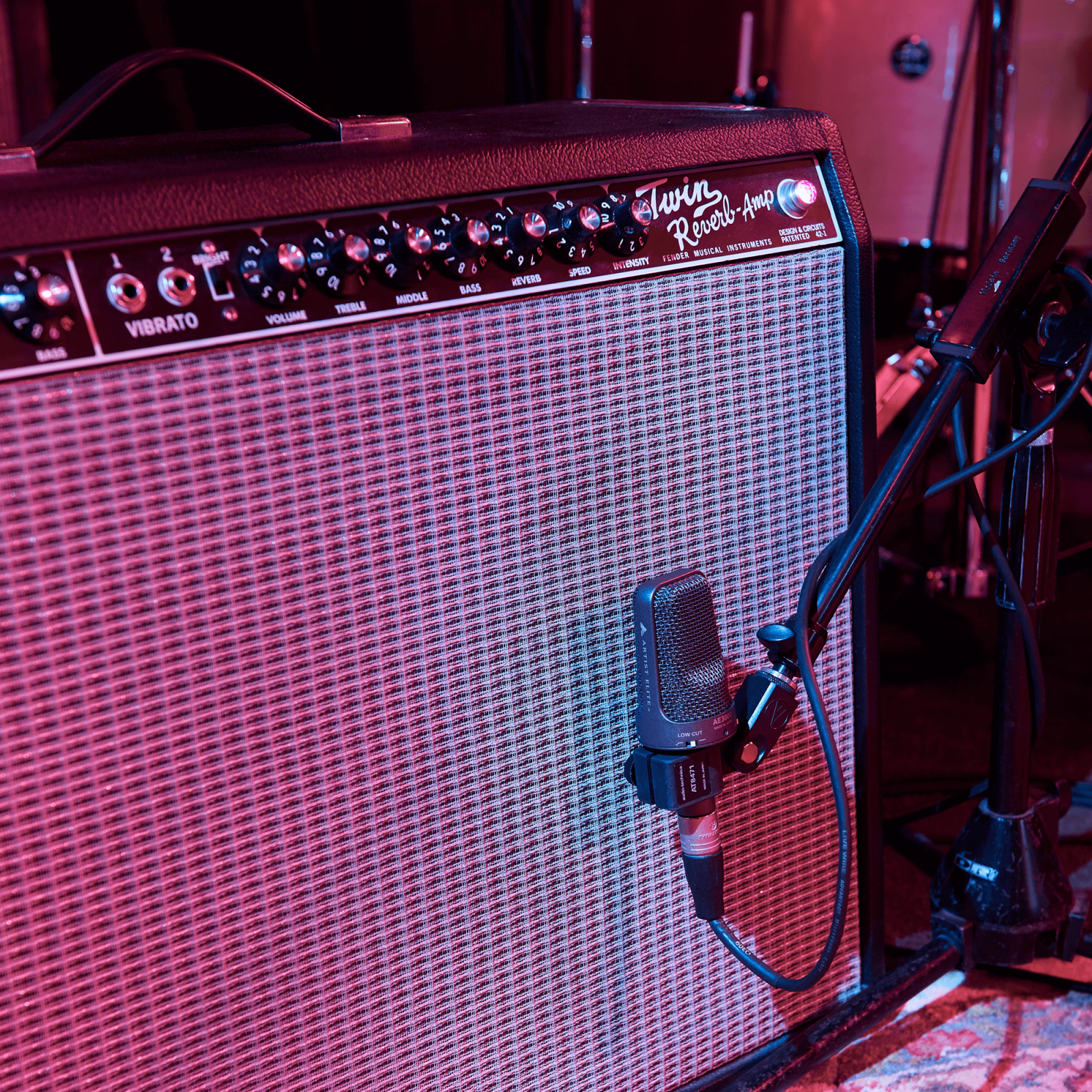

Ideal for acoustic guitar amp, toms, snare, brass and overheads

Low-profile side-address design with tapered grille allows optimal positioning of element vis-à-vis sound source

Robust design for enduring dependability on the road

80 Hz high Pass Filter and 10 dB pad

Product designed and manufactured in Japan, guaranteed for 15 years

“exceptional transparency”

The large diaphragm microphone combined with an "open" head structure provides high accuracy and exceptional sound clarity.

“highly effective but with a low profile”

A microphone that fits comfortably into the palm of your hand; discretion and ergonomics allow optimal positioning of the element relative to the sound source.

“switchable low-cut filter and fader”

The integrated low-cut filter allows for the easy switching of flat frequency response to attenuate the bass. The 10dB attenuator reduces microphone sensitivity, whilst increasing the sound pressure level, thus increasing the versatility of the AE3000.

low-cut FILTeR

The AE3000 is equipped with a filter that suppresses frequencies below 80 Hz, with a slope of 12dB / octave.

tapered Grille

The microphone's large capsule is protected by a tapered grille, allowing you to slide the AE3000 closer to capture instruments.

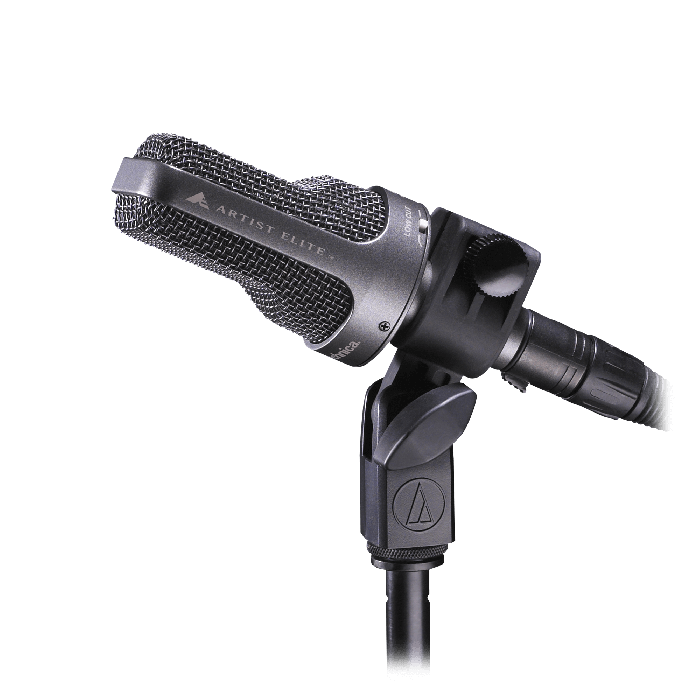

isolation clamp

The AT8471 isolation clamp is included to ensure secure mounting, versatile positioning and to mitigate any unwanted mechanical noise.

protective pouch

The AE3000 comes with a soft protective pouch for easy storage and transport.



Microphones

---

Element Fixed-charge back plate, permanently polarized condenser

Polair patroon Cardioid

Frequentierespons 20 - 20,000 Hz

Lage frequentie roll-off 80 Hz, 12 dB/octave

Gevoeligheid open circuit -43 dB (7.0 mV) re 1V at 1 Pa

Maximaal geluidingangsniveau 148 dB SPL, 1 kHz at 1% T.H.D.; 158 dB SPL, with 10 dB pad (nominal)

Dynamisch bereik 137 dB, 1 kHz at Max SPL

Signaal-ruisverhouding 83 dB, 1 kHz at 1 Pa

Vereisten fantoomvoeding11-52V DC, 3 mA typical

Gewicht 170g

Afmetingen 4.55" (115.5 mm) long, 1.89" (48.0 mm) maximum diameter

Uitgangsconnector Integral 3-pin XLRM-type

Meegeleverde accessoires AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
