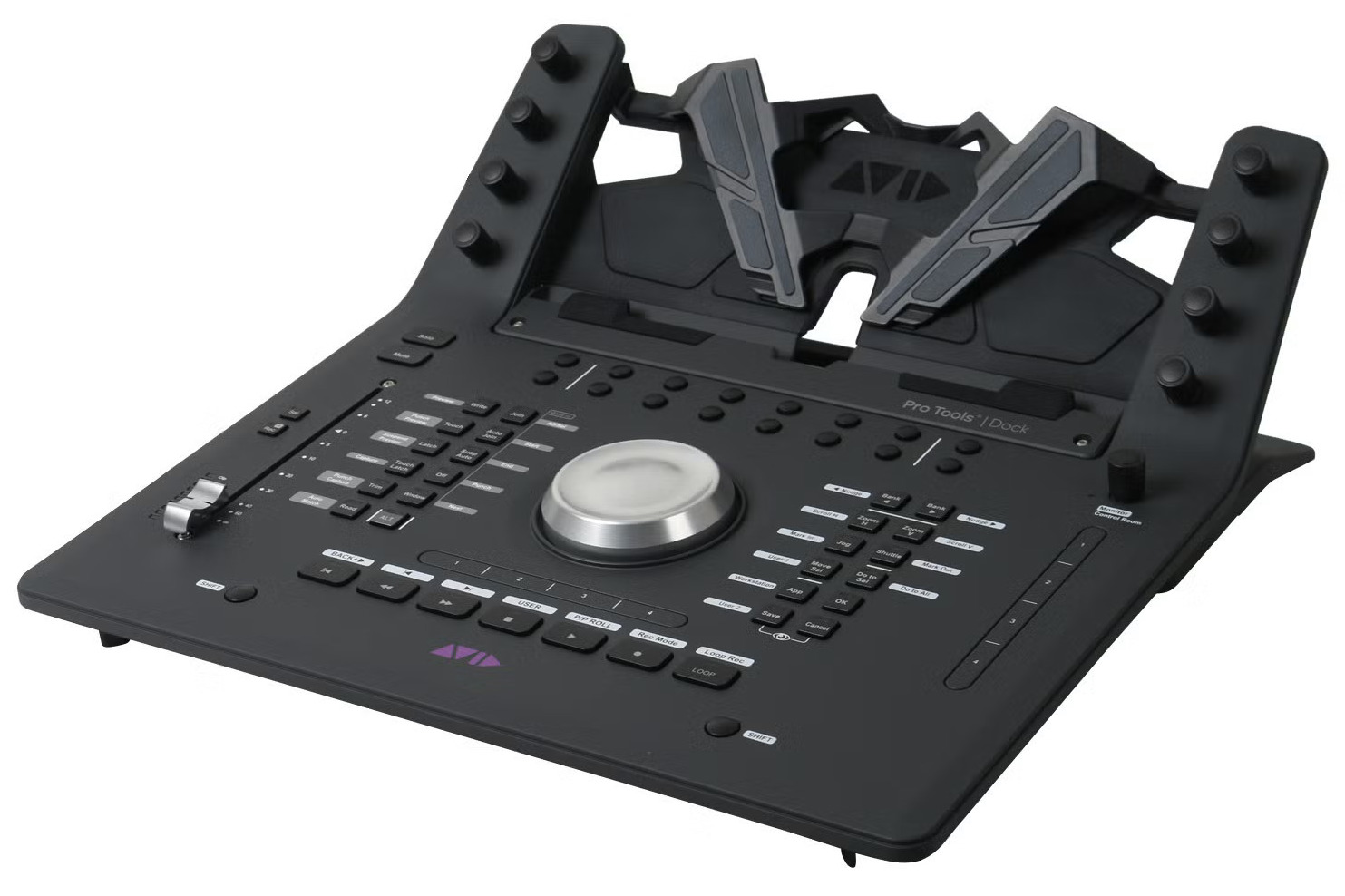

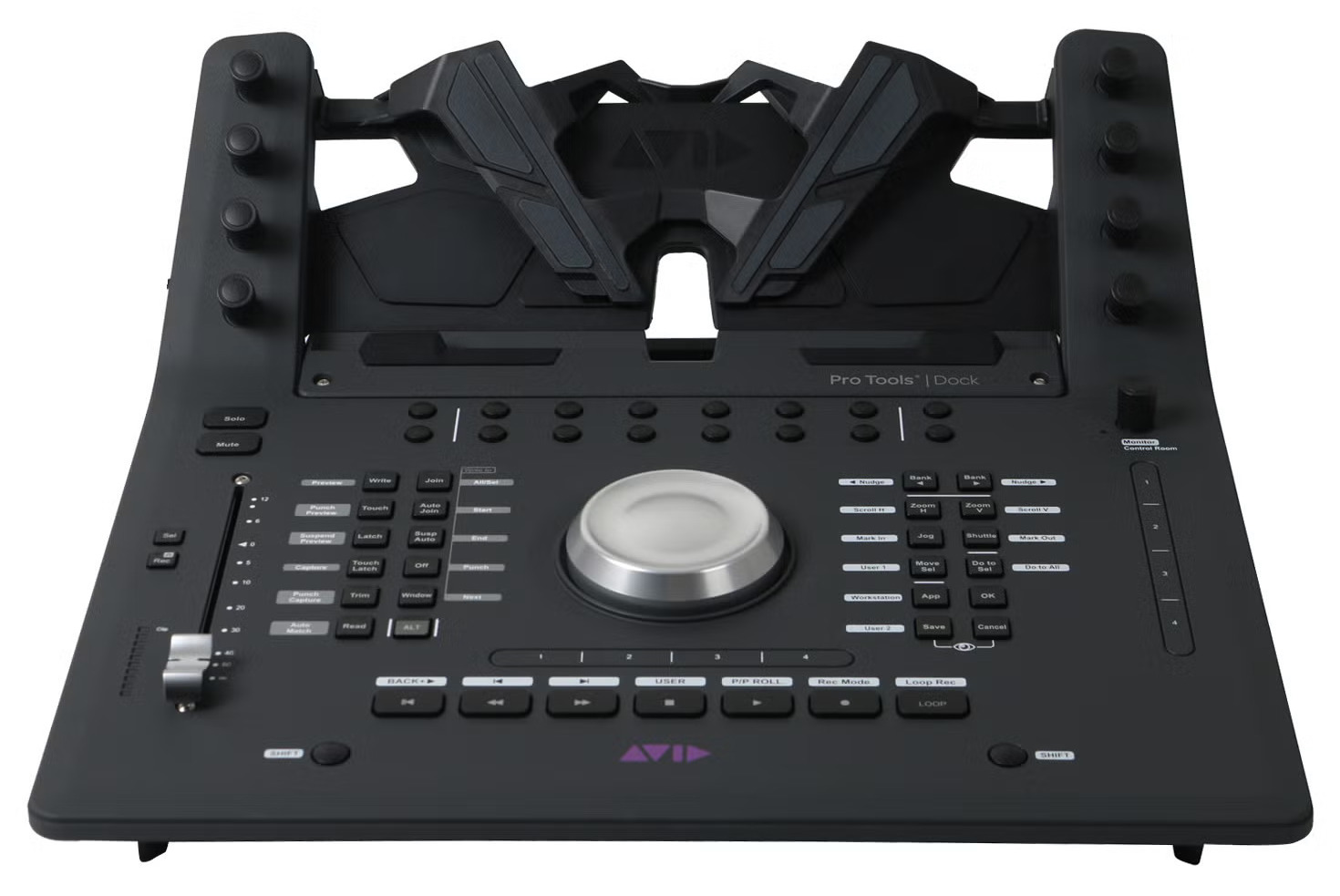

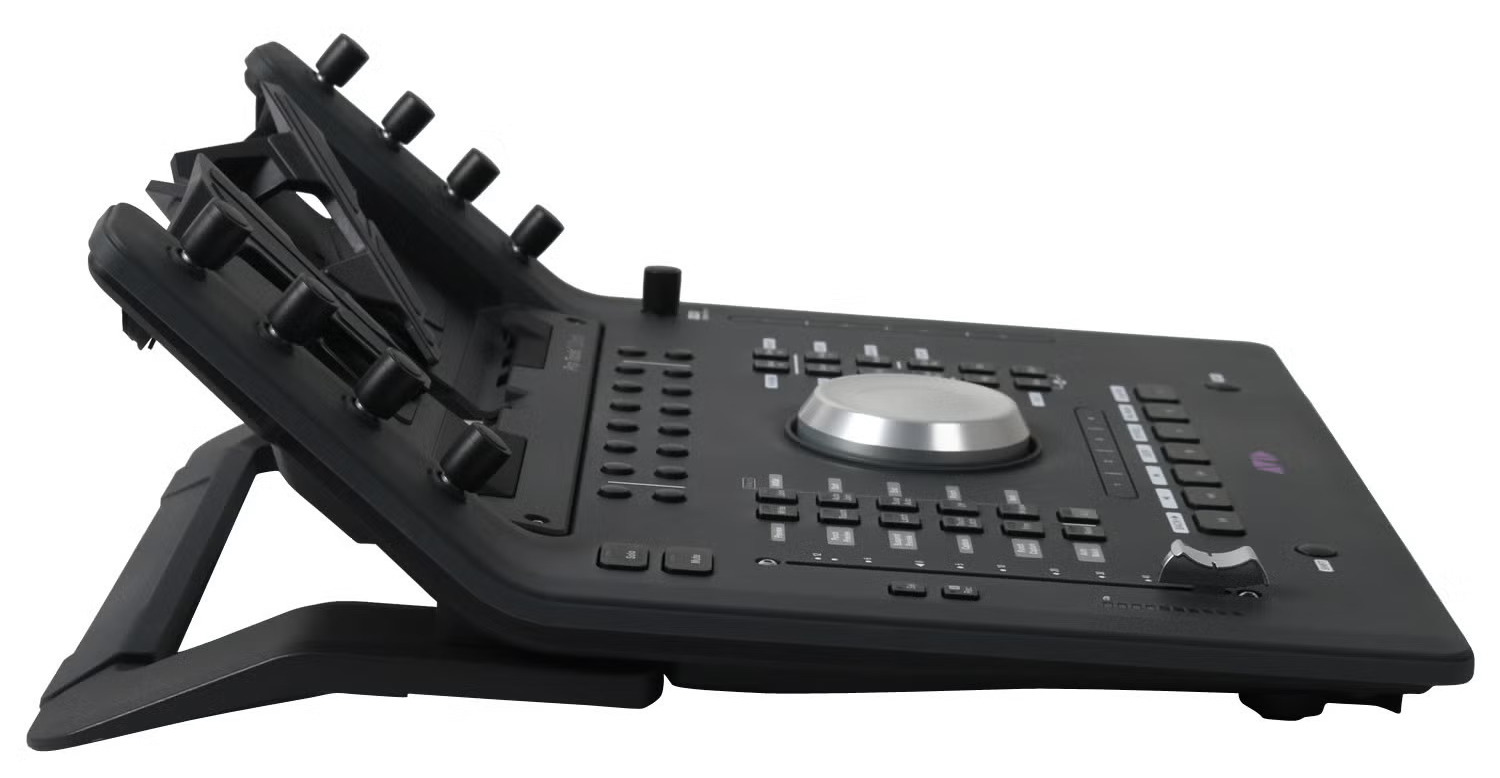

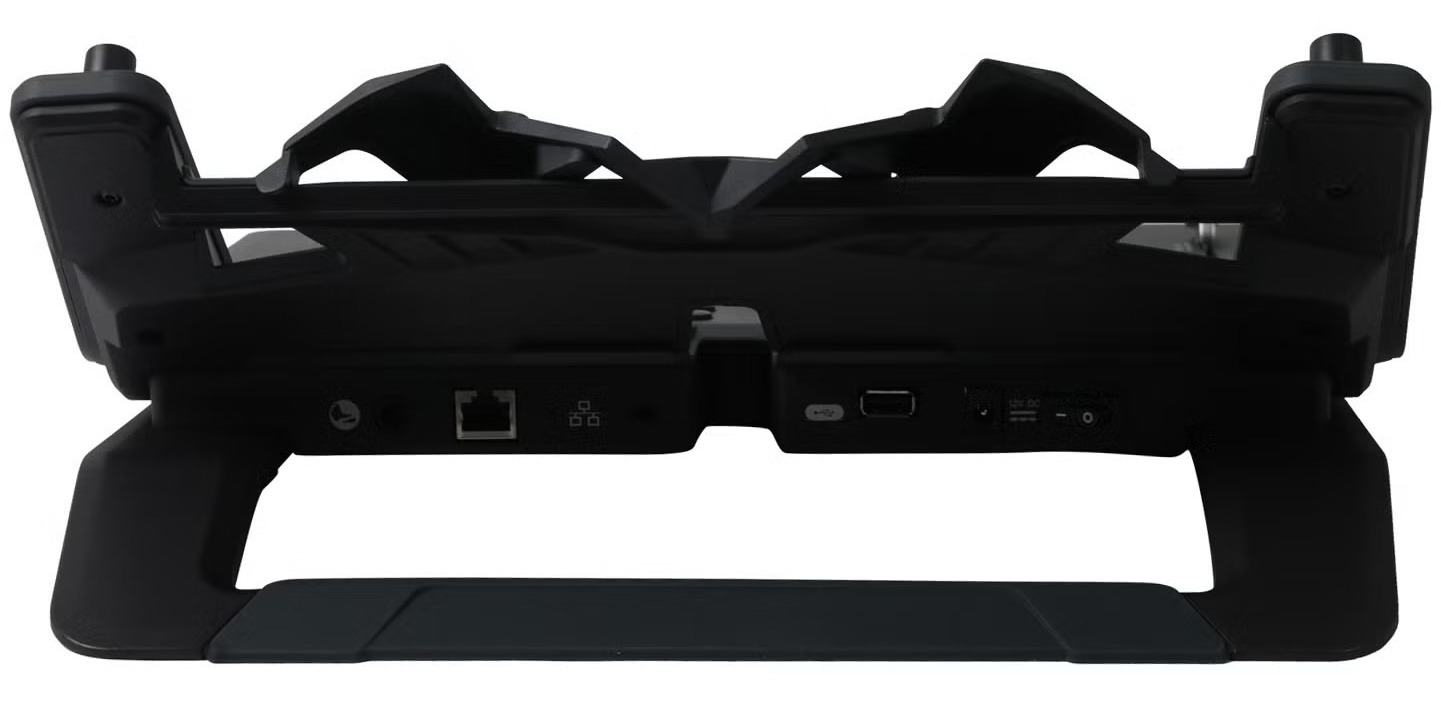

Avid Dock Control Surface

PRODUCT HIGHLIGHTS

Speed up your workflow
Avid Dock features EUCON, a high-speed Ethernet-based technology that enables the hardware to communicate directly with many popular applications, including Pro Tools, Media Composer, Logic Pro X, Cubase, Nuendo, Premiere, and more. From accessing hundreds of software functions and commands, to navigating projects, adjusting plugins, and automating tracks, Dock gives you touch and tactile control right from the surface.

Get hybrid touch and tactile control

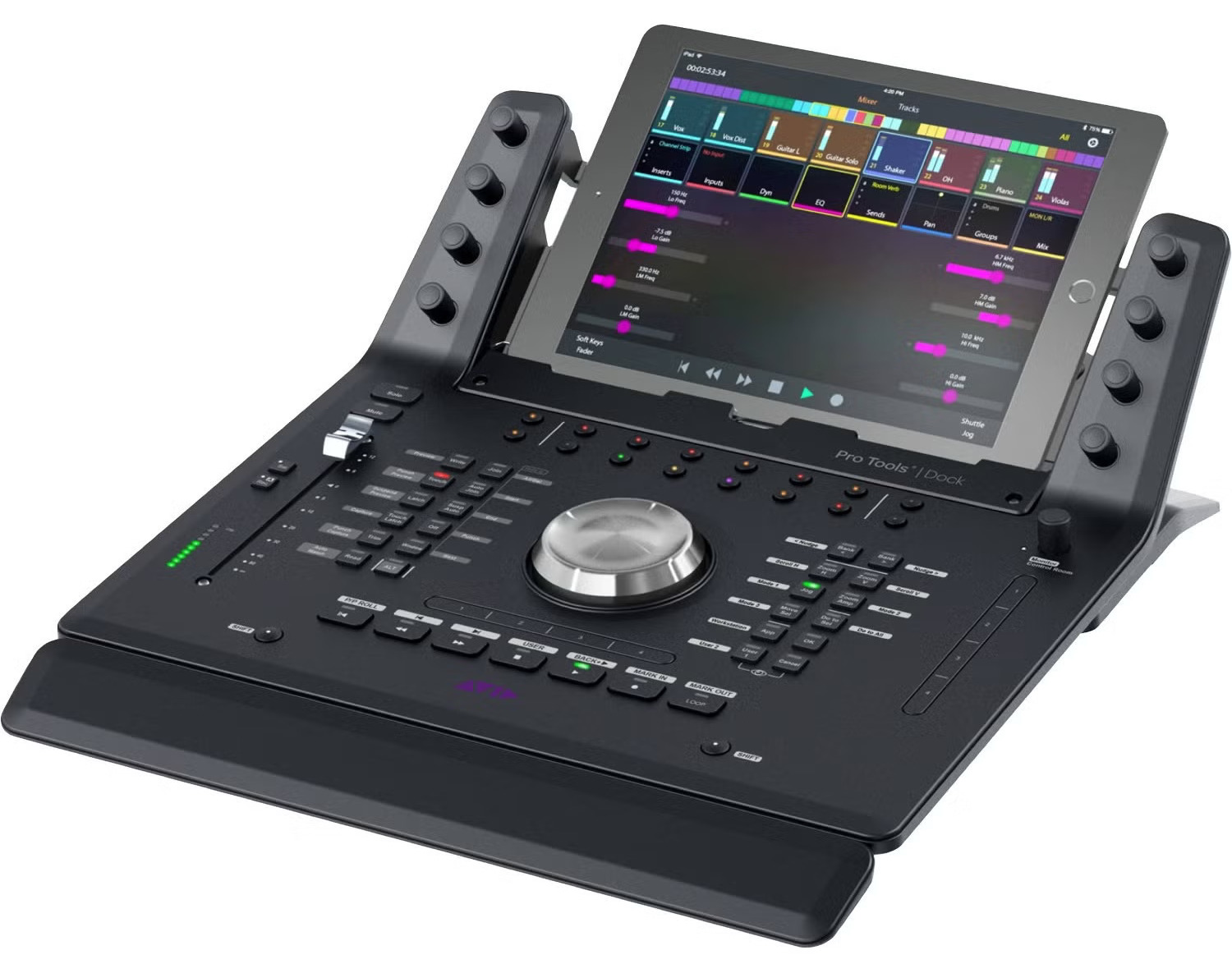

While Avid Dock can be used standalone, it provides deeper control of your software when used with the free Avid Control app on your tablet. The app offers a host of views, controls, and visual feedback to speed up your efficiency. Navigate huge sessions with the Universe Scroller. See up to 96 tracks at a time and bring a track immediately to the surface in Tracks view. And make tweaks to tracks, EQ, dynamics, and plugins in the Mixer and Channel views.

Navigate your project your way
Get full transport controls, an assignable weighted jog wheel, and right-side switches to navigate, jog, shuttle, zoom, bank, switch workstations, and more. Scroll through projects or perform custom tasks with the two programmable touch strips. Get ICON-favorite “Scroll to Track” and “Scroll into View” features when using Pro Tools. And quickly access any channel in Tracks view or the Universe Scroller in Avid Control—no matter how huge the session.

Gain full monitoring control
Take control of any EUCON-enabled monitoring system—including Pro Tools | MTRX, Pro Tools | MTRX Studio, D-MON, XMON, and monitor sources in your DAW—right from the Dock surface or in the Avid Control app on your tablet. Control source selections, speaker cuts, talkback, and cues. You can even lock parts of the Dock to your monitoring application for dedicated monitor control while controlling another DAW with the rest of the surface for mixing.

Automate tracks with ease
With 12 dedicated automation switches, you can toggle modes and write automation directly from the surface. Press the ALT key and you have access to additional Pro Tools Ultimate functions using the same keys, including Preview, Join, Punch Capture, and Write to Punch. You can even attach a footswitch to the Dock to control punch recording.

Bring enhanced touch workflows to S1 and S3
Pair Avid Dock with an Avid S1 or S3 control surface and you gain even more timesaving workflows. Speed up tasks with physical transport, jog, shuttle and focus fader capabilities. Enable more flexible touchscreen workflows. Customize and recall layouts quickly. Work with VCA groups more easily. And trigger frequently performed functions and macros with dedicated Soft Keys as you continue mixing on S1 or S3.

Adjust parameters with a twist
Edit and mix tracks with eight push-top, touch-sensitive Soft Knobs that interact with whatever knobset you’ve chosen in the Avid Control app. Select an EQ, plugin, send, pan, or other item, and all parameters instantly map to the knobs for tweaking. And because you’re making adjustments with physical controls, you don’t have to focus on your computer screen and can instead really listen to how your adjustments impact your mix.

Speed up tasks with Soft Keys
You can click-click-click your way through frequently performed editing and mixing tasks. Or you can assign the 16 surface Soft Keys or the Avid Control Soft Keys to do the tedious work for you. Trigger menu commands and other software functions and recall layouts at the press or tap of a button. You can also adapt the Dock to your unique workflow by grouping Soft Keys and programming macros to perform more complex tasks.

Get your hands on important channels
When you need to focus on a specific track—or want more tactile precision—a single “attention” channel awaits. Select any track from the touchscreen and the channel maps directly to the Dock’s surface controls. Adjust levels with the touch-sensitive, motorized fader. Select, record-enable, solo, and mute the track. And keep an eye on your levels with the 10-segment meter.

NEW FEATURES

Create custom knob and meter layouts—NEW
With the latest EUCON update, you can now map the controls of an inserted plugin to your surface—for any plugin, from any EUCON-enabled DAW. This makes it easy to create custom knob layouts for all of your favorite plugins, so you always have your favorite parameters at your fingertips exactly where you want them. You can also design your own meter layouts, independently, in both the Avid Control mobile and desktop apps.

Work with your favorite devices
Avid Control works with a variety of tablets and smartphones running iOS, iPadOS, Android, and Fire OS, giving you a wide range of choices and cost flexibility. It also comes as a desktop app for macOS and Windows, enabling you to display the Meters view on your computer screen—in conjunction with your DAW—ideal when using Avid Dock with one or more S1 surfaces.
