Avid Pro Tools MTRX II
Volledig aanpasbare interface met geïntegreerde DigiLink, Dante en MADI I/O en SPQ Speaker Processing, van monitoring tot Dolby Atmos kwaliteit
Vragen? Betere prijs gezien?
Bel 0512 - 340457 of neem contact op!
Product omschrijving
Avid Pro Tools | MTRX II
The most flexible, scalable box for high end audio workflows and multiple DAW support. Get extensive routing and monitoring control with I/O customization that supports Thunderbolt, Dante, Pro Tools | HDX, and more.
Much more than an audio interface
CREATE AND MONITOR AUDIO UP TO FULL THEATRICAL ATMOS®
MTRX II is built for today’s demanding audio workflows, ideal for multi-room facilities with complex setups. MTRX II provides high-quality mic preamps and renowned AD/DA conversion with immense I/O, routing, and monitoring flexibility. MTRX II adapts to your needs with its massive 4,096 x 4,096 router, 384 channels of built-in low latency I/O and onboard DigiLink, Dante, and MADI I/O. Plus, built-in SPQ Speaker Processing ensures the best sound for your space for monitoring up to full theatrical Dolby Atmos®.

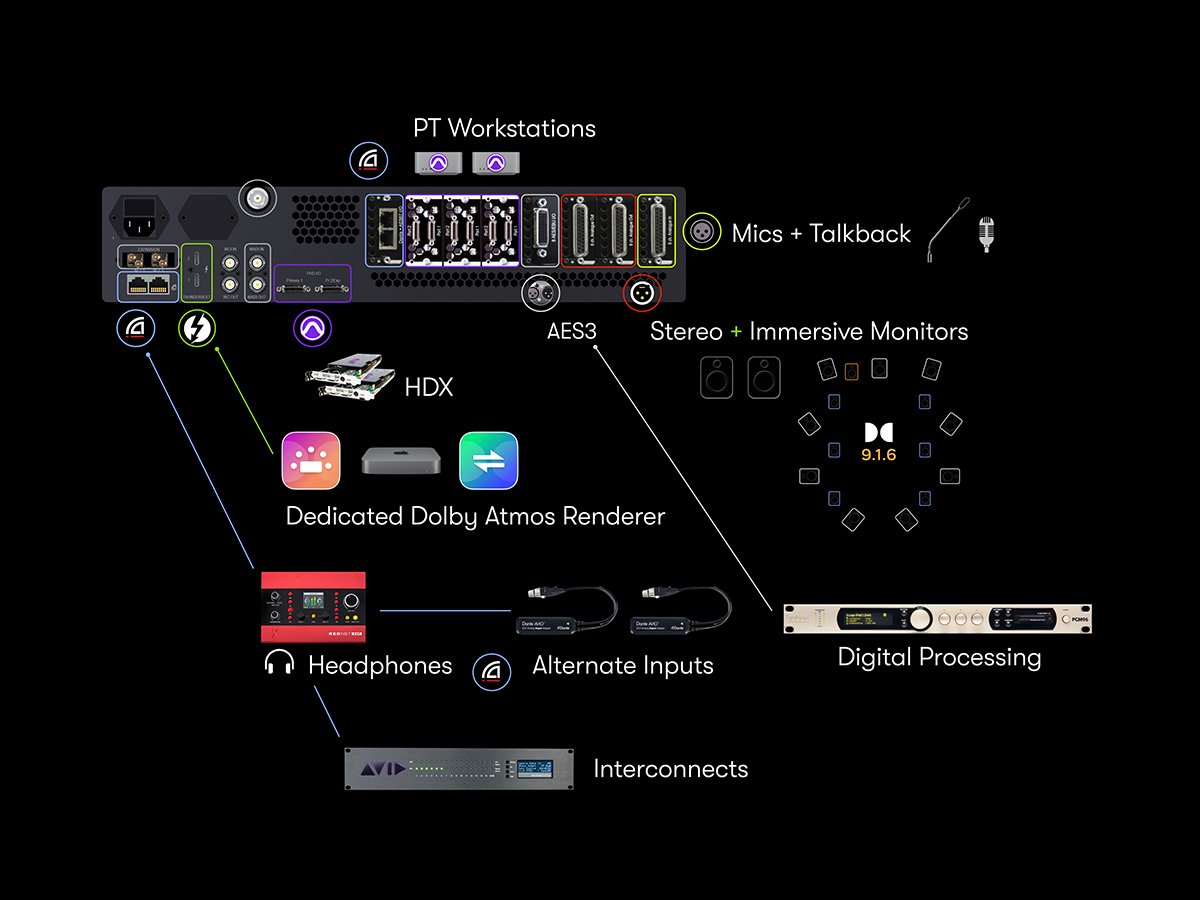

Customize your interface to any audio workflow
The MTRX II offers 64 DigiLink I/O channels, 256 Dante channels, and 64 MADI channels, plus eight option card slots and a Thunderbolt 3 option slot. With one interface, connect to Pro Tools | HDX with a Mac or PC, use other DAWs, route audio over IP with Dante, and add and reconfigure I/O as needed. Say goodbye to old gear and simplify your setup with a MTRX II.
Built to scale spectacular sound with Dante
Configure MTRX II with up to 1,280 Dante channels to distribute audio over IP. Easily integrate Dante-enabled devices and support multiple audio networks running on individual clocks and sample rates in one MTRX running multiple Dante cards. Get impeccable transparency with AD/DA converters that support sample rates up to 384 kHz PCM and DSD. Hear every sonic nuance of 128 dB of dynamic range with less than -120 dB harmonic distortion.
Work with Dolby Atmos®
MTRX II delivers the most comprehensive solution for immersive audio with Pro Tools Ultimate and Pro Tools | HDX. One MTRX II can achieve the 128-channel immersive audio requirement for connecting to the Dolby Atmos® Renderer, streamlining hardware, complexity and cost. Its 512 x 64 summing mixer accommodates a full theatrical Dolby Atmos® configuration allowing you to:
- Connect a multi-card HDX system or multi-workstation system to a single interface.
- Route audio to the Dolby Atmos® Renderer while maintaining full HDX DSP power.
- Control playback sources, stems, rendering, and monitoring outputs across multiple workstations.
Audio monitoring and calibration
MTRX II has a massive 512 x 64 summing mixer for full Dolby Atmos® theatrical monitoring or simple cue mixes. It includes SPQ Speaker Processing for calibration up to 9.1.6, DADman Pro | Mon control and supports Sonarworks room calibration. Calibrate speakers with up to 16 filters per channel totalling 1024 filters across 64 channels for precise room correction, with adjustable delay and filters.
Control MTRX II with EUCON
Remotely control all sources, inputs, fold-downs, cue mixes, and monitoring directly from any EUCON-enabled control surface. Create multiple monitor profiles to switch multichannel audio formats— from stereo up to 64-channel Dolby Atmos®, for the most flexible routing and monitoring at scale.
See the AVID Pro Tools | MTRX II product page for more information and technical specifications.
CUSTOMIZE YOUR MTRX II
See available option cards and suggested configurations for professional applications.
Pro Tools | MTRX II features 64 channels of DigiLink I/O, 256 channels of Dante, and 64 channels of MADI in the base unit to get you started, with eight option card slots to configure the audio interface with the I/O you need. It also includes built-in SPQ Speaker Processing for easy room calibration to optimize your monitoring environment. Mix and match up to eight analog I/O cards to support up to 64 analog channels per MTRX II interface, design an all-digital box with up to eight digital I/O cards (supporting up to 576 DigiLink channels, 1,280 Dante channels, or 1,088 MADI channels when maxed out with all available cards and modules), or configure it with any combination of analog and digital I/O.
Take a look at all of the Pro Tools | MTRX II option cards available for you to choose and use.
