Avid Pro Tools Sync X

THE ULTIMATE SYNC FOR POST

Sync up all your devices

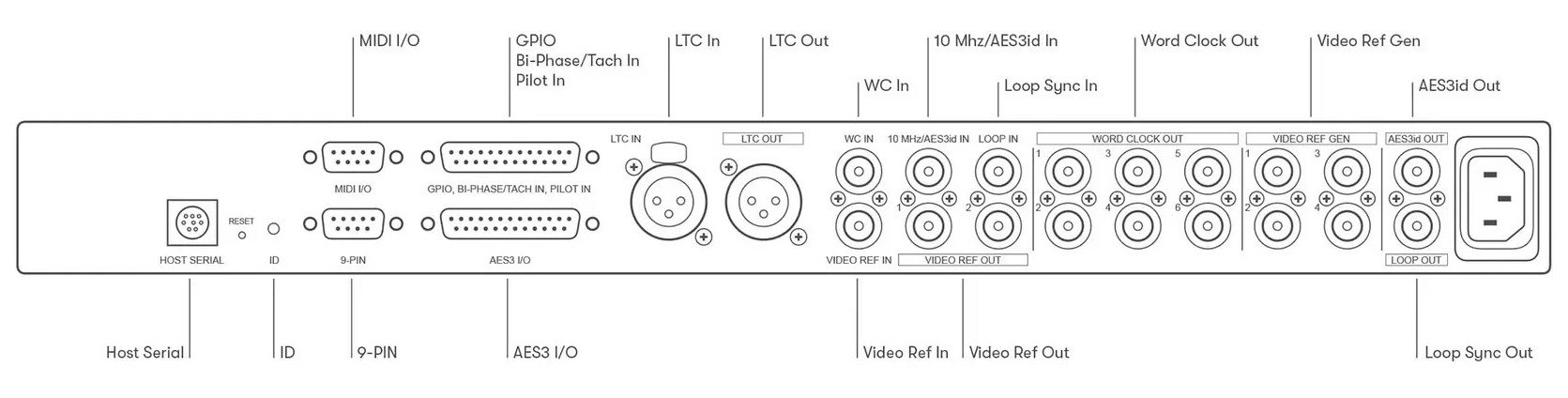

With support for all industry-standard clock sources (including Word Clock, Loop Sync, and AES3), positional reference formats (including LTC, Serial Timecode, and Bi-Phase/Tach), SD and HD reference formats, and pull-up/pull-down rates for film and video, Sync X is an easy fit into any studio environment. Plus, six Word Clock outputs make syncing to Pro Tools interfaces and devices easy.

Cut costs with the built-in video reference generator
No need to rely on video reference from an external device. Sync X provides an onboard video reference generator with four outputs to distribute signals to other peripherals, cutting complexity and costs. If you already have an external video reference generator, Sync X can receive video reference too, with automatic format detection.

Streamline dual operator workflows
Sync X enables each Satellite-linked Pro Tools system to sync in tandem to support multi-operator mixing environments, where dialogue, music, and sound effects are handled by separate systems. This eliminates any possible drift to maintain near sample-accurate lock to frame edge.

Control Sync X and other devices from Pro Tools
From configuring your audio clock and video reference sources, to selecting pull down rates and fine-tuning device speeds, all Sync X settings can be controlled directly in Pro Tools Ultimate. It also offers a 9-pin connection, enabling you to control other devices from Pro Tools, like a video deck.

QUALITY AND RELIABILITY

Lock to sources fast and flawlessly
With exceptionally low jitter JetPLL clocking technology, Sync X locks to external sources faster and more accurately than its predecessor, Pro Tools | SYNC HD. Its master oscillator runs at 100 MHz—a double resolution implementation that’s twice as fast as typical JetPLL-based clocks. And twice as accurate.

Get flexibility with 10 MHz and AES3id I/O
When working on scoring stages and other demanding recording situations where immaculate sound is a mandate, Sync X easily locks to high-end atomic master clocks through its 10 MHz clock input. In environments that require long cable runs, such as across large post facilities, you can send or receive AES3 or AES3id signal to supported devices, giving you greater flexibility.

Keep cool when production gets hot
Temperature fluctuations can affect a device’s pitch. With a temperature-compensated oscillator, Sync X always provides reliable clocking—even as temperatures vary—maintaining frequency accuracy to within ±1 part per million over its rated temperature range to keep things pitch perfect. And it can be racked up with other gear without fear that the heat will cause it to drift.

See the AVID Pro Tools | Sync X product page for more information and technical specifications.
