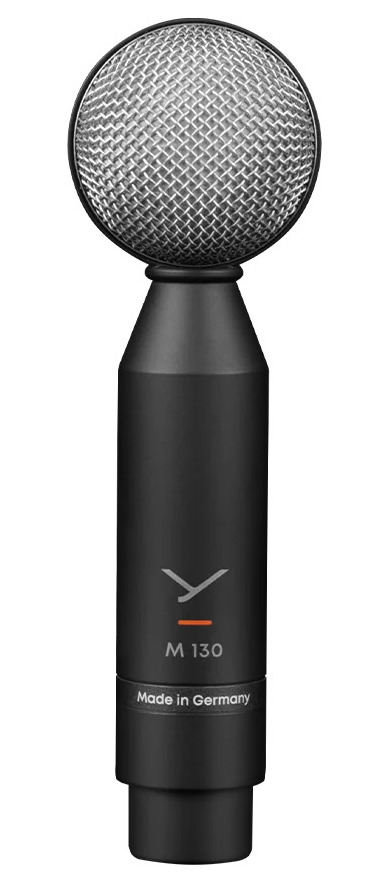

Beyerdynamic M 130

DYNAMIC DOUBLE-RIBBON MICROPHONE (FIGURE-EIGHT)

The M 130 is ideal for stereo, room and instrument recordings and brings a popular and special ribbon sound that is characterised by warmth and precision. Depending on positioning and spatial situation, the M 130 can be used for studio recordings of drums, electric guitar amps, piano, acoustic guitars, orchestras, choirs or for all kinds of atmospheric recordings.

As a stereo microphone system, two M 130 can be used to create a Blumlein stereo system for an excellent sounding room recording. M/S recordings can be made together with a hypercardioid or supercardioid microphone such as the M 160 dynamic double-ribbon microphone or the MC 950 true condenser microphone.

FEATURES

• Dynamic double-ribbon microphone
• Figure-eight polar pattern
• Ideal for stereo, ambience and instrument recordings
• Excellent suppression of lateral noise
• High impulse fidelity and good transient response
• Handcrafted in Germany

SUPPLIED ACCESSORY

• MA-CL 25 Microphone clamp with 3/8" internal thread, with internal diameter of 25 mm

TECHNICAL SPECIFICATIONS

• Transducer type: Dynamic
• Operating principle: Pressure gradient
• Frequency response: 40 - 18,000 Hz
• Polar pattern: Figure-eight
• Rear attenuation at 1 kHz: > 30 dB at 90°
• Sensitivity (0 dB = 1 V/Pa): 1.3 mV/Pa (= -57.5 dBV)
• Nominal impedance: 200 Ω
• Load impedance: ≥ 1000 Ω
• Diaphragm: Pure aluminium
• Case/finish: Brass
• Connector: XLR, 3-pin, male
• Dimensions: length 128 mm, shaft diameter 23 mm, head diameter 38.5 mm
• Weight: 160 g
