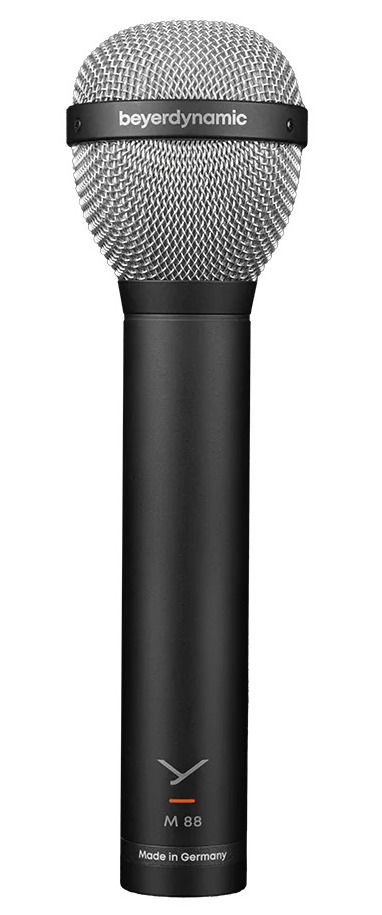

Beyerdynamic M 88

DYNAMIC MOVING-COIL MICROPHONE (HYPERCARDIOID)

The M 88 is a dynamic moving-coil microphone for the highest demands convincing with flexible application options. It can be used for miking vocals or instruments in the studio or on stage. Its directional properties are close to the theoretically possible values reducing the risk of acoustic feedback to an absolute minimum. Due to the balanced frequency response, the most diverse sound sources are exactly reproduced, and a signal is created that can be processed easily and at will.

When miking the kick drum, the WS 59 wind shield should be used.

FEATURES

• Wide, balanced frequency response for natural sound reproduction
• Good bass response
• Well-defined hypercardioid polar pattern
• Hum-bucking coil for eliminating background noise

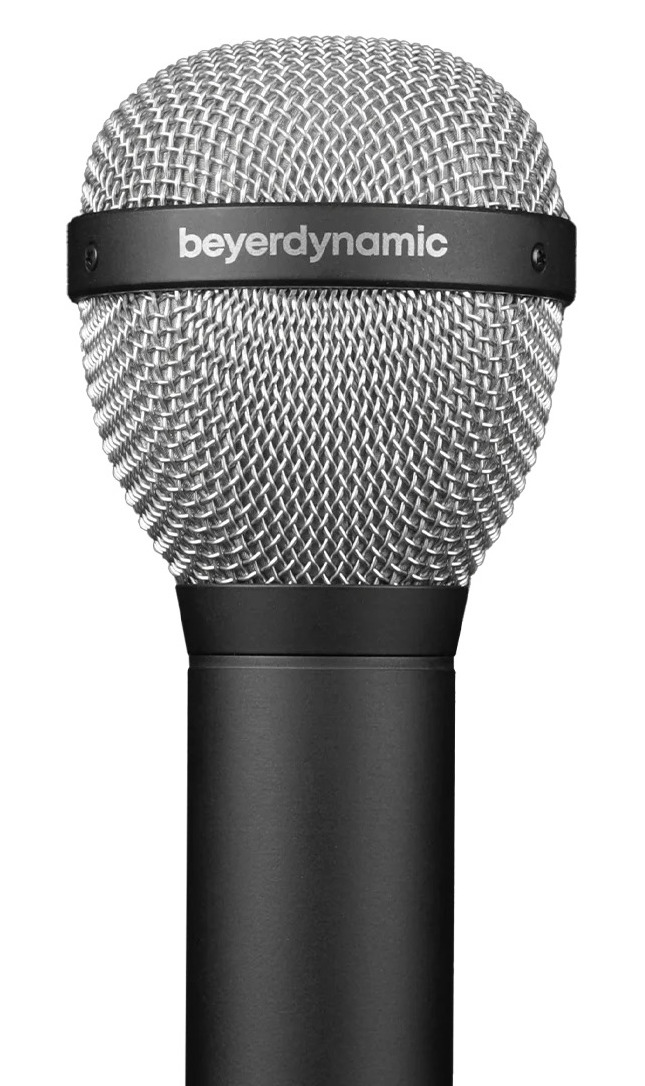

• Microphone grille made of 3-layer stainless steel mesh
• Handcrafted in Germany

SUPPLIED ACCESSORY

• MA-CL 25 Microphone clamp with 3/8" internal thread, with internal diameter of 25 mm

TECHNICAL SPECIFICATIONS

• Transducer type: Dynamic
• Operating principle: Pressure gradient
• Polar pattern: Hypercardioid
• Frequency response: 30 - 20,000 Hz
• Rear attenuation at 1 kHz: > 23 dB at 120°
• Sensitivity (0 dB = 1 V/Pa): 2.9 mV/Pa (= -51 dBV)
• Magnetic field suppression: > 20 dB at 50 Hz
• Nominal impedance: 200 Ω
• Load impedance: ≥ 1000 Ω
• Diaphragm: Hostaphan®
• Casing: Brass
• Connection: XLR, 3-pin, male
• Dimensions: length 173 mm, shaft diameter 25.5 mm, head diameter 48.5 mm
• Weight: 331 g
