Beyerdynamic TG D57

CONDENSER DRUM MICROPHONE (CARDIOID)

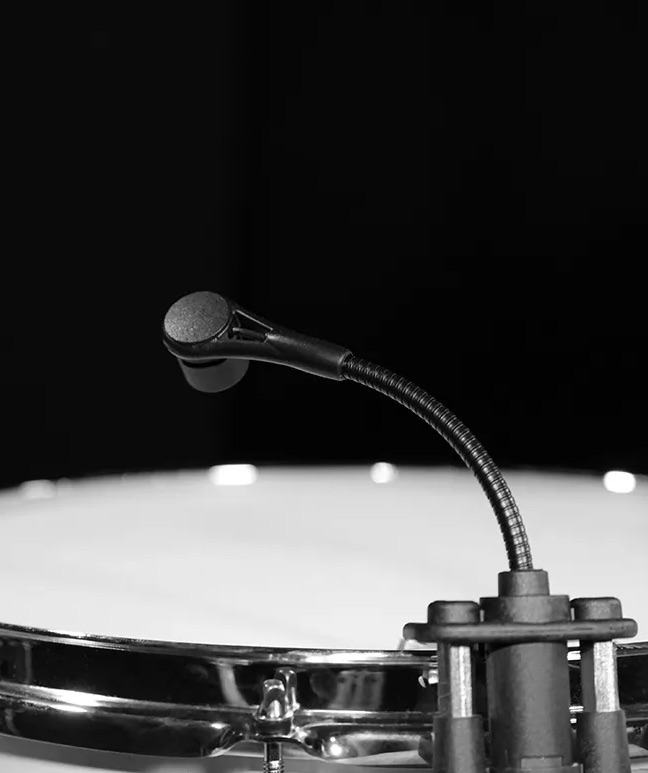

Whether with standing toms, snare drums or percussion instruments - with its patented clip-on mount and integrated pre-amplifier, the TG D57 condenser microphone is mounted and ready in a flash. The expanded frequency range ensures faithful reproduction of all drum types and the 72 mm long flexible gooseneck allows it to be optimally positioned relative to the sound source. An elastic capsule suspension on the capsule housing protects against damage from drumstick strikes.

FEATURES

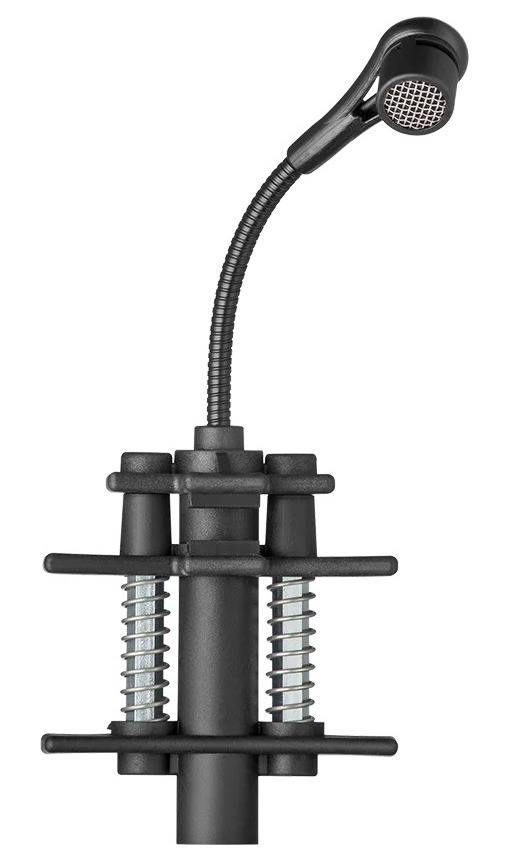

• Patented microphone clamp with integrated preamp
• Functional design
• Cardioid polar pattern for high gain before feedback
• 12 - 48 V phantom powering
• Rugged construction

TECHNICAL SPECIFICATIONS

• Transducer type: Condenser (back electret)
• Operating principle: Pressure gradient
• Polar pattern: Cardioid
• Frequency response:
  Close miking 20 - 20,000 Hz
  Distant miking (measured at 1 m) 35 - 20,000 Hz
• Open circuit voltage: 5 mV/Pa (-46 dBV) ±2.5 dB
• Nominal impedance: 200 Ω
• Load impedance: ≥ 1 kΩ
• Max. SPL at 24 V and 48 V phantom power: 140 dB
• S/N ratio: 59 dB [CCIR; Q-Peak], 70 dB [A; RMS]
• Equivalent SPL: 35 dB [CCIR; Q-Peak], 24 dB [A; RMS]
• Power supply: Phantom power: 12 - 48 V (recommended: 48 V)
• Power consumption: 4.7 mA
• Connection: XLR, 3-pin, male
• Dimensions: clamp (w x h) 85 x 118 mm, gooseneck length 72 mm
• Weight: approx. 145 g
