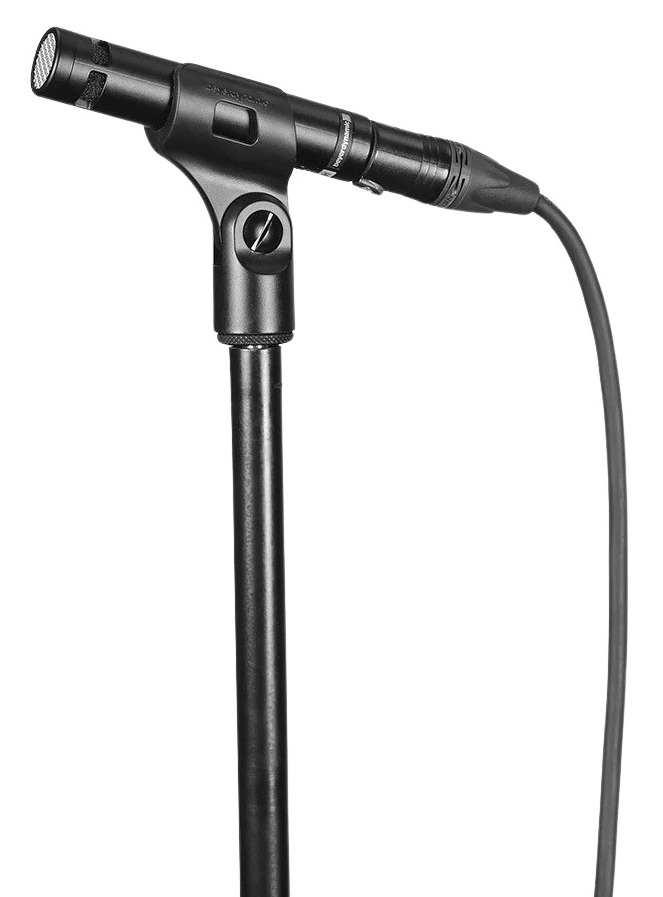

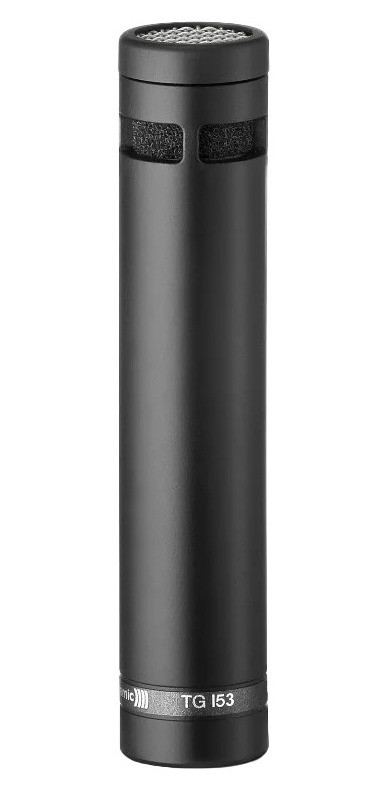

Beyerdynamic TG I53

CONDENSER INSTRUMENT MICROPHONE (CARDIOID)

The very wide frequency response of the TG I53 opens up a variety of possible applications. From hi-hats and overheads to percussion, string and brass instruments and even choir singing – this condenser microphone with its subtle treble boost and excellent detail reproduction really excels. Because of its high sensitivity, it is also suitable for larger microphone placement distances, for example for large sound sources with complex radiation patterns. Further advantage: it is both light and rugged due to the carbon fibre reinforced housing.

FEATURES

• Cardioid polar pattern
• High SPL capability
• Casing strengthenend with carbon fibres
• Rugged construction
• Slim design

TECHNICAL SPECIFICATIONS

• Transducer type: Condenser (back electret)
• Operating principle: Pressure gradient
• Polar pattern: Cardioid
• Frequency response:
  Close miking 20 - 20,000 Hz
  Distant miking (measured at 1 m) 35 - 20,000 Hz
• Open circuit voltage: 6.8 mV/Pa (-43.4 dBV) ±2.5 dB
• Nominal impedance: 200 Ω
• Load impedance: ≥ 1 kΩ
• Max. SPL at 24 V and 48 V phantom power: 140 dB
• S/N ratio: 61 dB [CCIR; Q-Peak], 71 dB [A; RMS]
• Equivalent SPL: 23 dB [A; RMS], 33 dB [CCIR; Q-Peak]
• Power supply: Phantom power: 12 - 48 V (recommended: 48 V)
• Power consumption: 4.7 mA
• Connection: XLR, 3-pin, male
• Dimensions: 100 x 19.5 mm
• Weight (without clamp): 36 g
