Black Lion Audio Revolution Clock

Black Lion Audio Revolution Clock

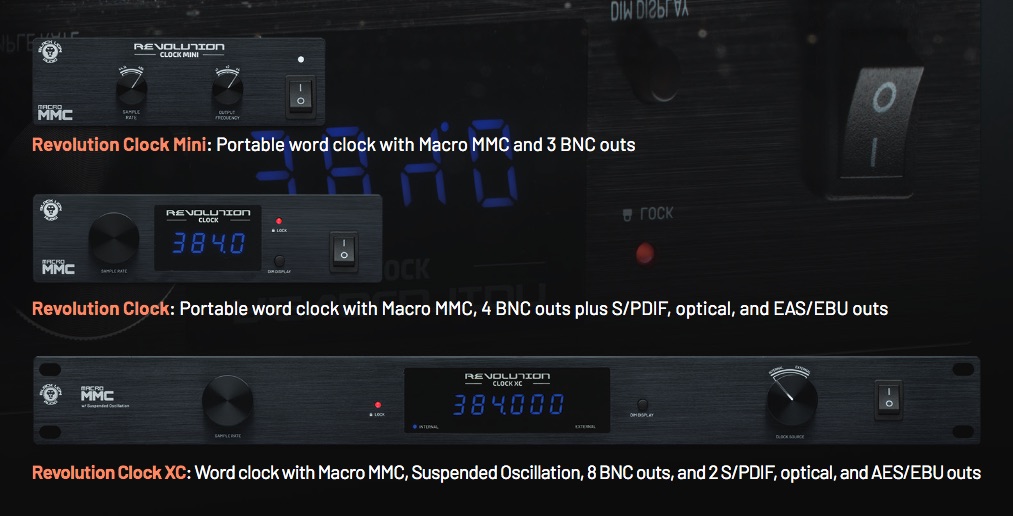

Portable word clock with Macro MMC, 4 BNC outs plus S/PDIF, optical, and EAS/EBU outs

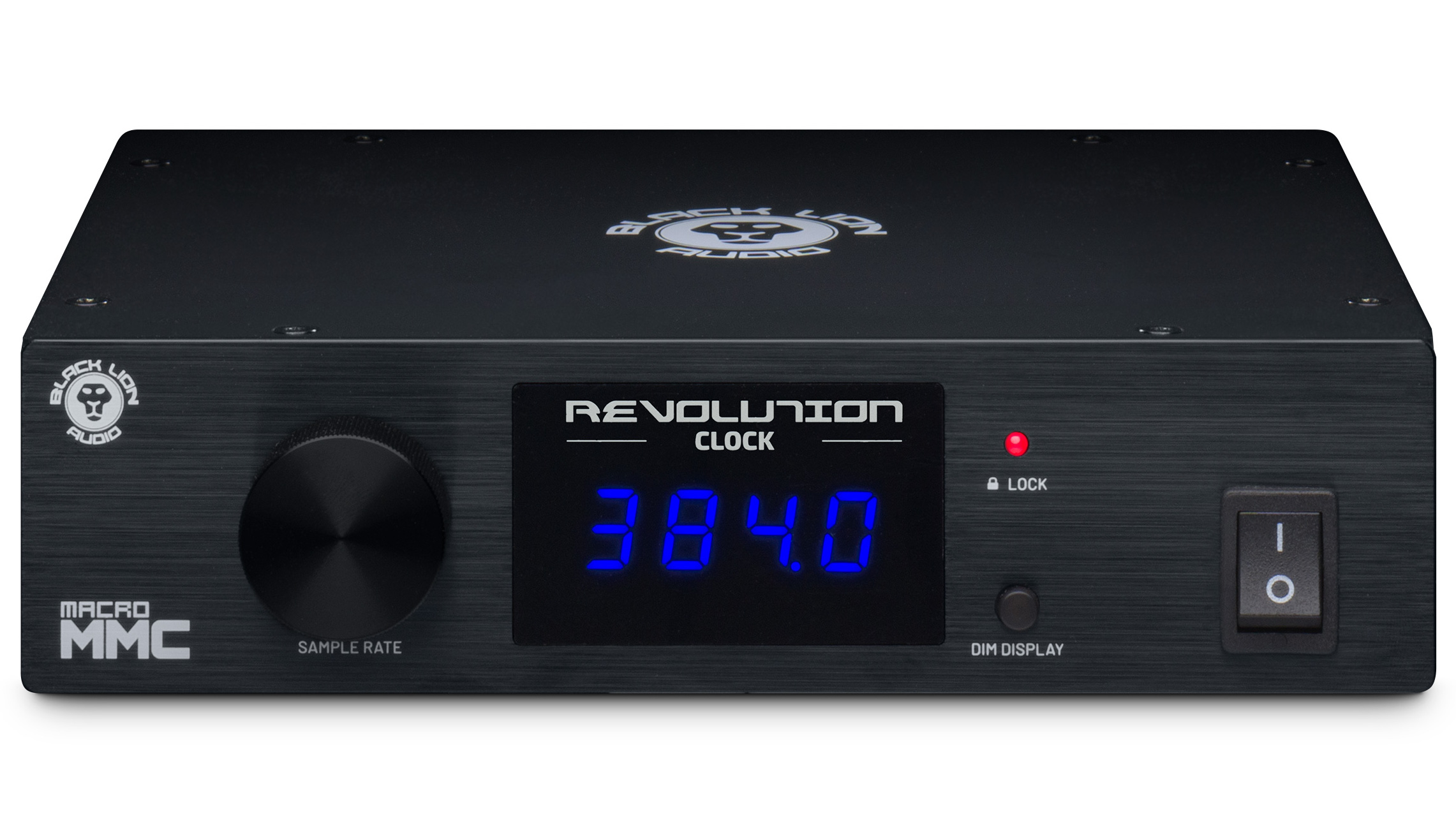

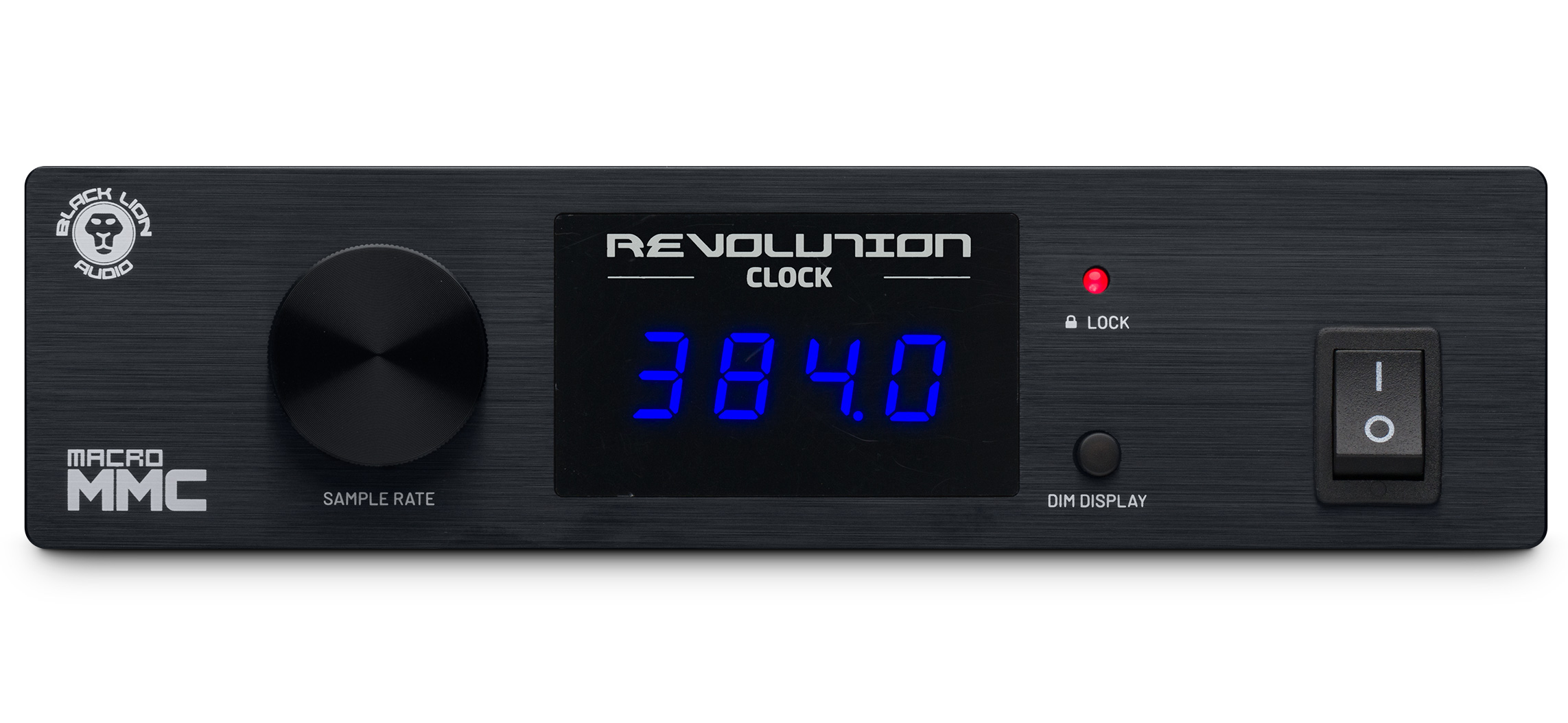

Revolution Clock is a world-class word clock with seven ultra-stable, low-jitter outputs. You get 4 BNC outputs for clocking your external devices, plus S/PDIF, optical, and AES/EBU outputs. Patented Macro MMC tech ensures minimal jitter and low noise at sampling rates from 44.1 kHz to 384 kHz.

Your music deserves the best

Revolution Clock delivers rock-solid clocking to keep all of your digital audio devices running in perfect sync over BNC, S/PDIF, optical, and AES/EBU at even the highest sampling rates; 44.1kHz – 384kHz sample rates are supported over BNC. With only 0.5pS RMS of jitter at the BNC outputs, your devices will be running in perfect sync, and your productions will sound their absolute best. Once a system is set up and clocked correctly, many users observe a greater sense of space and depth thanks to more accurately-reproduced reverbs and stereo imaging. Some even notice elements of their mixes they didn’t even hear prior to synced clocking!

Why clock?

Short answer: For supreme audio fidelity when using multiple digital audio devices.
Long answer: When running multiple digital audio devices simultaneously without clock sync, clocking jitter can result in smearing of the stereo field, and is particularly noticeable in transients and higher-frequency material like cymbals and lengthy reverb tails. It’s also worth noting that the effects of superior clocking are cumulative. Noise reduction and jitter may be hard to discern on a two-track recording of vocals and guitar. But if you record a 64-track production through poorly clocked hardware, all that noise and jitter begins to stack up!

Features

• Portable Word Clock with Patented Macro-MMC technology for jitter and phase noise reduction
• Supports sampling rates of 44.1 kHz – 384 kHz

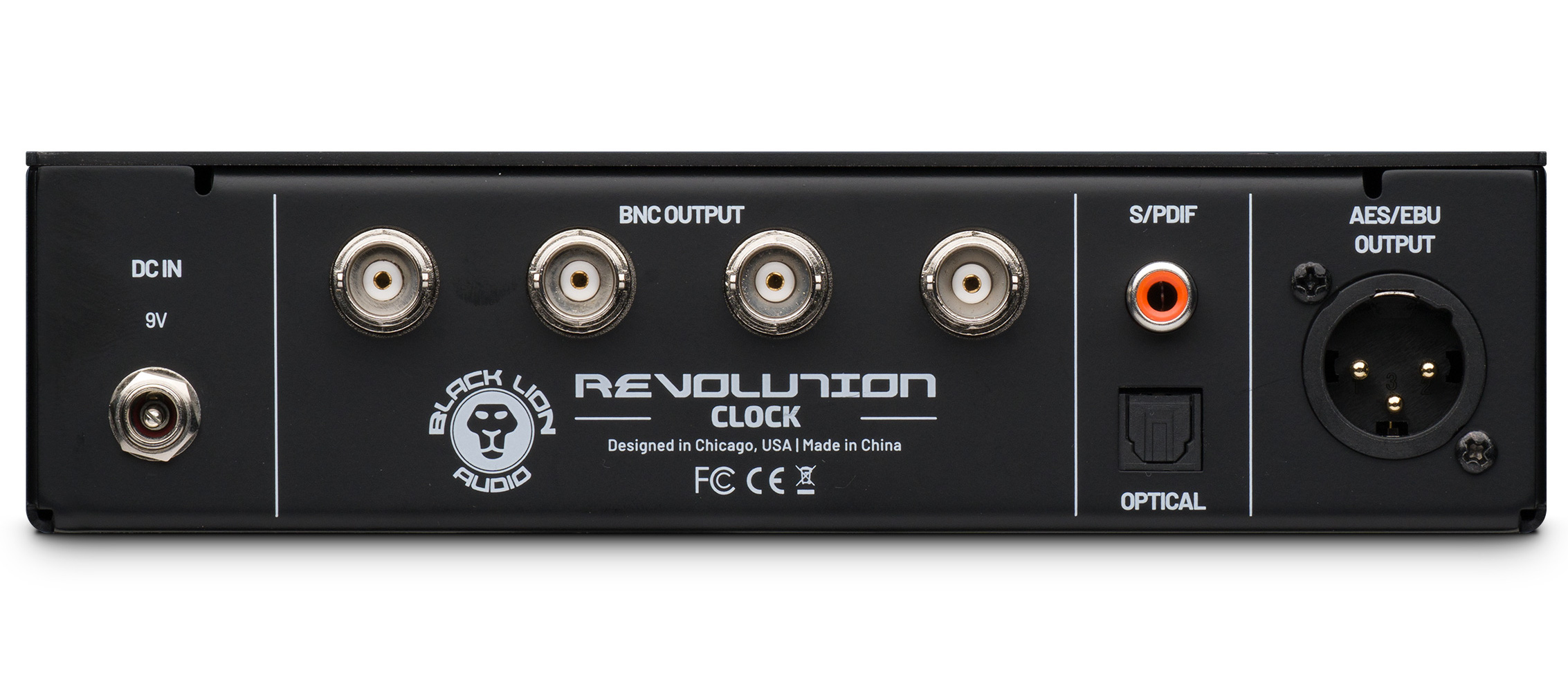

• Diverse connectivity:
  • 4 BNC outputs
  • 1 S/PDIF output
  • 1 ADAT optical output
  • 1 AES/EBU output
• Removable rack ears included
• Built rugged and road-worthy; Black Lion tough

Click here for technical specifications, downloads and more...
