![](/images/uploads/BDA4-Web-F_B-181002.png)

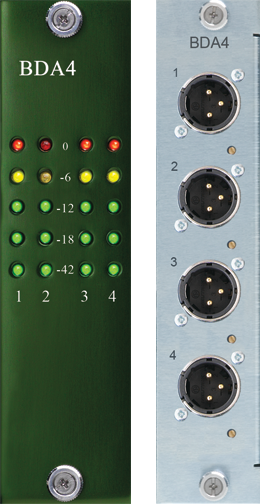

BDA4 Daughter Card Features:
• 4-channel DAC
• 4-channel XLR connectivity
• All class-A, discrete signal path
• BURL NextGen Analog BOPA14 OP-AMP
• BX5 nickel core output transformers
• Avid delay matching
• DAC filter select
• Frequency response at 48kHz sample rate is 10Hz to 22kHz, +/- 0.1dB
• Frequency response at 96kHz sample rate is 10Hz to 30kHz, +/- 0.1dB, -0.3 dB @ 40kHz
• Frequency response at 192kHz sample rate is 10Hz to 30kHz, +/- 0.1dB, -1.5 dB @ 90kHz
• 115dB Dynamic Range
• -96dB THD+N, full scale output = +22dBU
• Rugged, Made in USA design
![](/images/uploads/BDA4-Edit-181024.png)

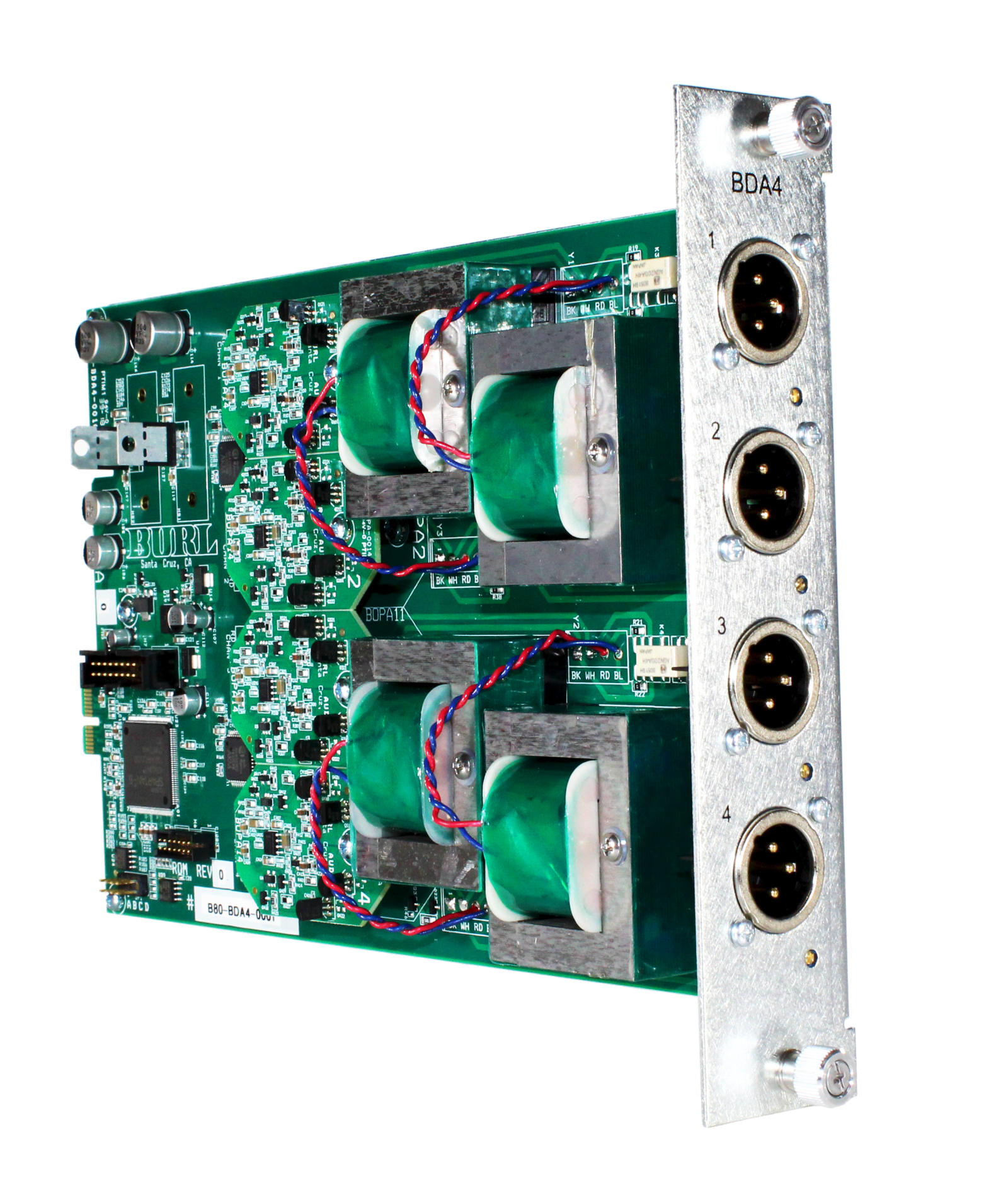

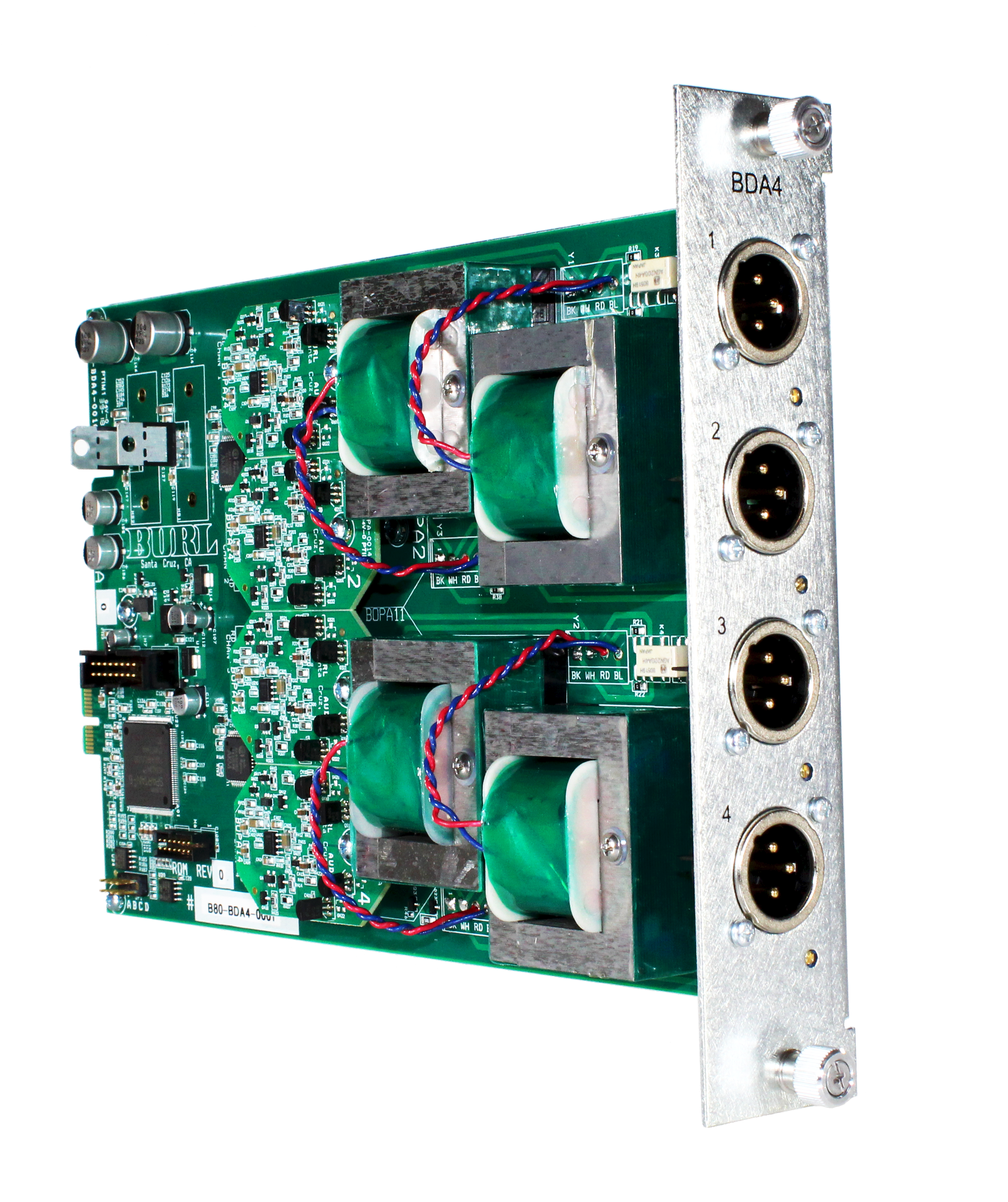

The BDA4, transformer coupled, 4-channel digital-to-analog converter Daughter Card for the B80 and B16 MOTHERSHIP is the result of over 25 years of R&D experience in pro audio digital and analog design. Following on the success of the B2 BOMBER DAC and the BDA8 for the MOTHERSHIP, the BDA4 utilizes the newly developed BOPA14 with BURL Audio’s NextGen Analog. The BOPA14 is followed by the renowned BX5 output transformer used in the B32 VANCOUVER MIX BUS.
The new BOPA14 with BURL NextGen Analog is the result of hundreds of hours of listening tests. It boasts stunning clarity and definition and raises the bar of excellence in pro audio analog electronics fidelity. The BOPA14 is an all discrete, class-A op-amp with a minimal number of transistors. If you thought the original BOPA4 sounded good, this new analog design will blow your mind with tighter bass and higher definition throughout the audio spectrum.
The BURL BX5 output transformer is the same large, BURLY beast used in BURL Audio’s renowned B32 VANCOUVER MIX BUS. Anyone who has tried B32 for the first time and engages the BX5 usually says “WHOA! That’s amazing!”. Forget about technical jargon, the BX5 transformer simply makes things sound bigger, phatter, deeper…better.
Couple the BOPA14 with the BX5 and you have sound that is truly HUGE! Kick, Snare, Bass, Guitar, Vocals, Mix… you name it, it will sound bigger, better and more pleasing.
For years, engineers have taken their fully digital projects and run them through a 2-track analog tape machine to make them sound “less digital”. The BDA4 with the BX5 output transformer routed to a BAD8 or BAD4 with the BX1 input transformer does something very similar, but better, in that there is no tape hiss and there is higher dynamic range and more headroom.
On the digital side, the BDA4 employs a couple of new features; a switchable DAC filter and AVID delay matching. Switching the DAC filter allows you to change the tone from the classic BURL sound to a more aggressive tone with a more forward mid-range. The AVID delay matching allows you to perfectly match the output delay of an AVID IO which is crucial for hardware inserts.
If you already own a B80 MOTHERSHIP or if you are buying a new B16 or B80 MOTHERSHIP, the BDA4 is awesome by itself or as a compliment to the super clear BDA8. Adding even just one BDA4 to your MOTHERSHIP will be a big step up. The BDA4 is truly BURLY.
“When the music needs to sound FAT, the BURL BDA4 is my go-to DAC. Feeding an analog loop with this beast enhances 3D depth and weight with a smooth clear top end and sweet midrange!”
– Justin Weis, Trakworx
“It completes the musical instrument called the Mothership. When returning mixes or prints, it’s just delightful. When compared to other super high-end converters, the AD has won my praise. I was shocked at how much it added, and how clean it was. It added sonic clarity across the spectrum. Clarity in all frequencies. Printing digital tracks… print them through the BDA4. the result is stellar!”
– Colin Liebich, BAE Audio/Plastic Dog Recording
