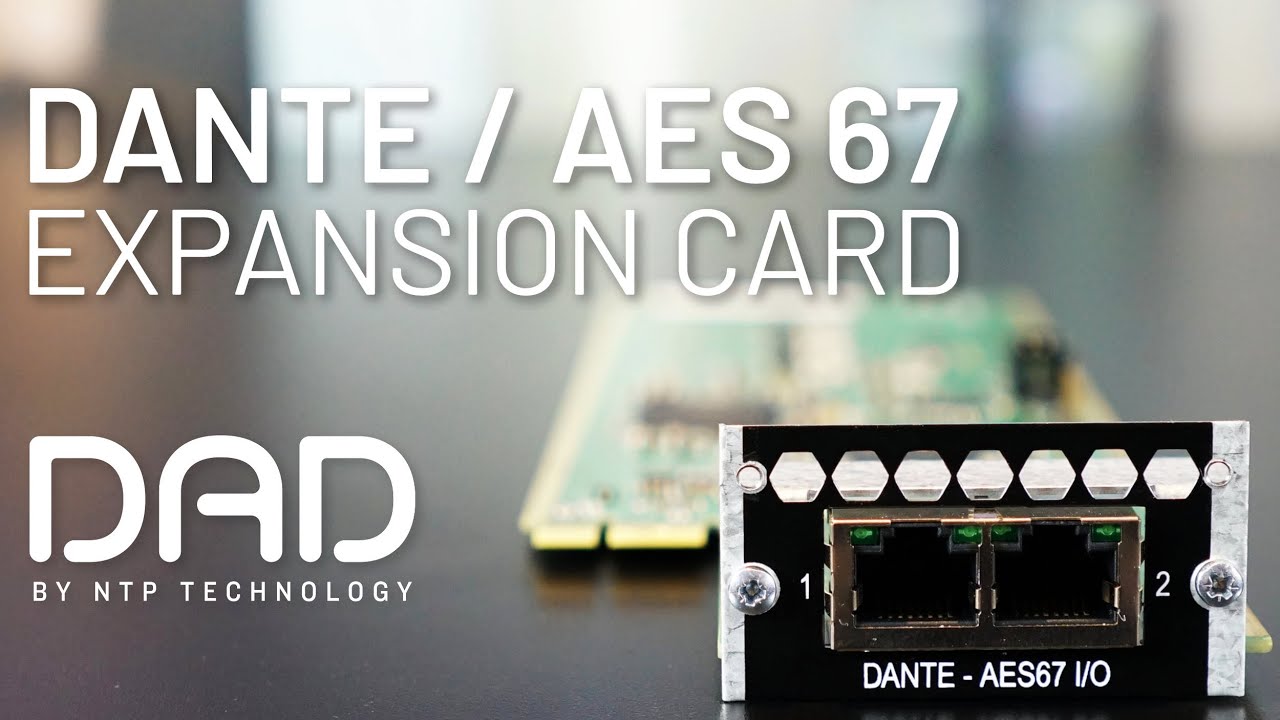

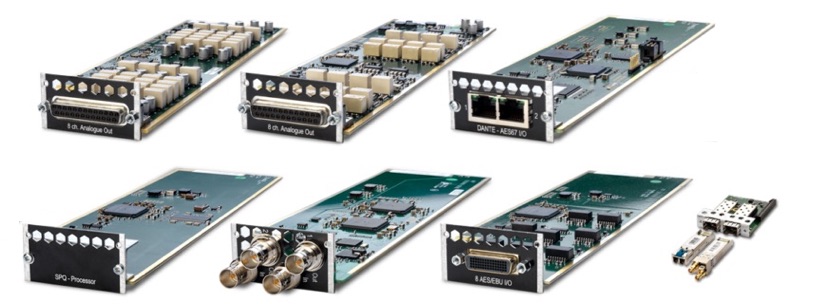

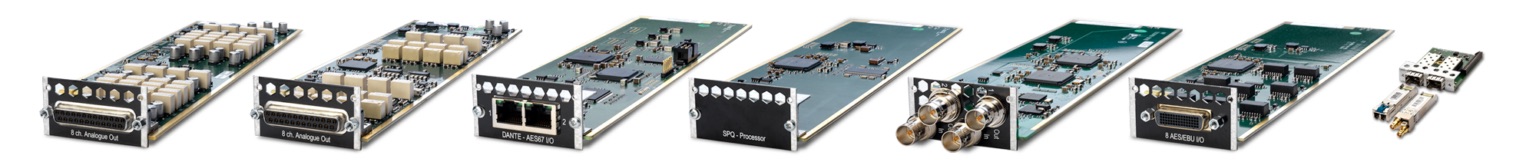

DAD Thunder Core, Penta & AX32 Expansion Options

128 ch Dante/AES67 Interface

• 128 Channels in and out
• Sample rates: 44.1 to 192 kHz
• Channel count scales down with the sample rate
• Bi-directional sample rate conversion for bridging between different networks
• Enables connection between unsynchronized Dante/AES67 networks
• Up to 128 bidirectional Dante flows
• Dual Ethernet connectivity – switched or redundant
• AES67 compatible with SAP discovery
• SKU: CARD-DANTE

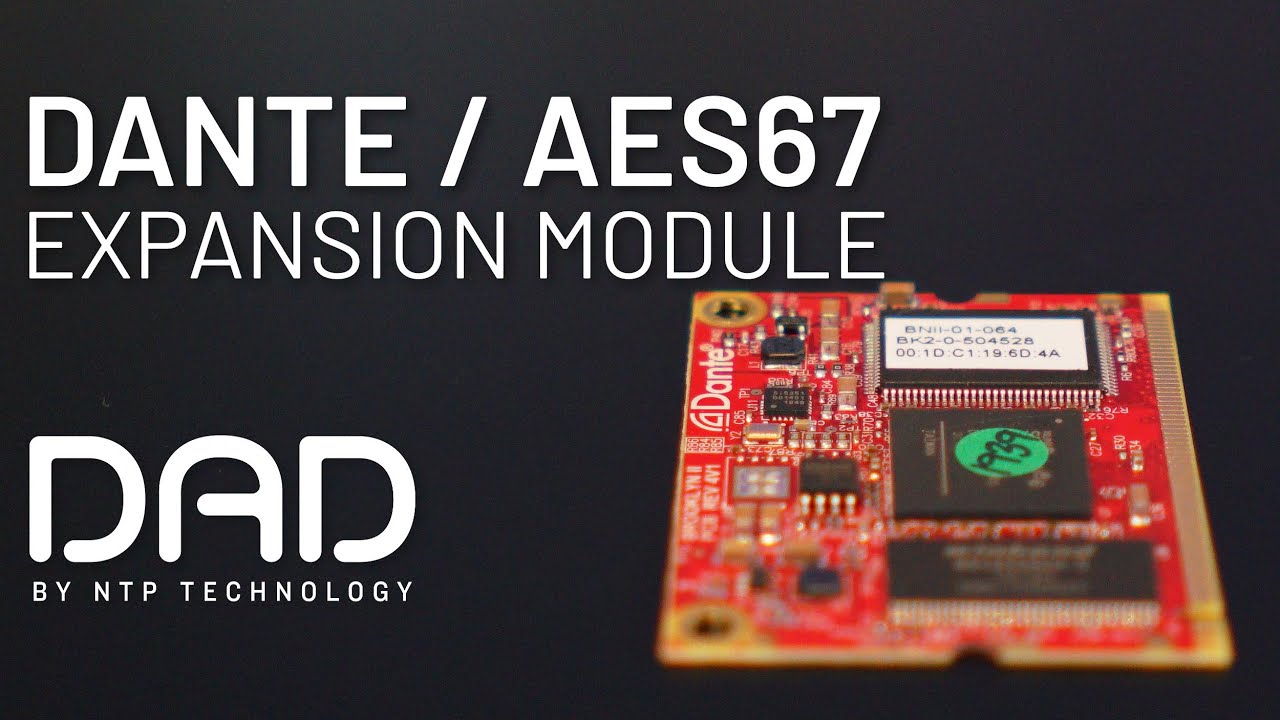

Dante/AES67 Module

• 64 ch. Dante interface
• Sample rates: 44.1 to 192kHz
• Dual Ethernet connectivity, switched or redundant
• AES67 compatible with SAP discovery
• SKU: MOD-DANTE-BK3

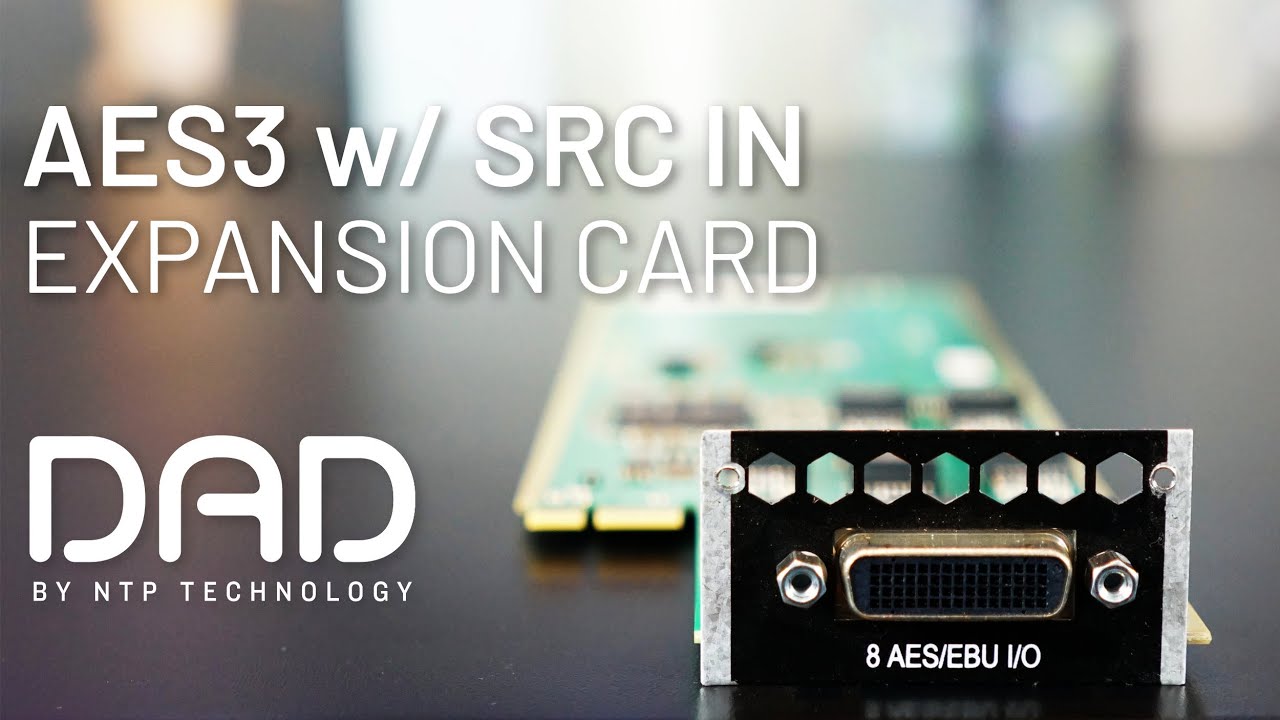

AES3 Interface w/ SRC In

• 8 x AES3 I/O
• 16 audio channels in and out
• Sample rates from 44.1 to 384 kHz
• Channel count scales down with the sample rate
• Sample Rate Converter on input
• SKU: CARD-8AES

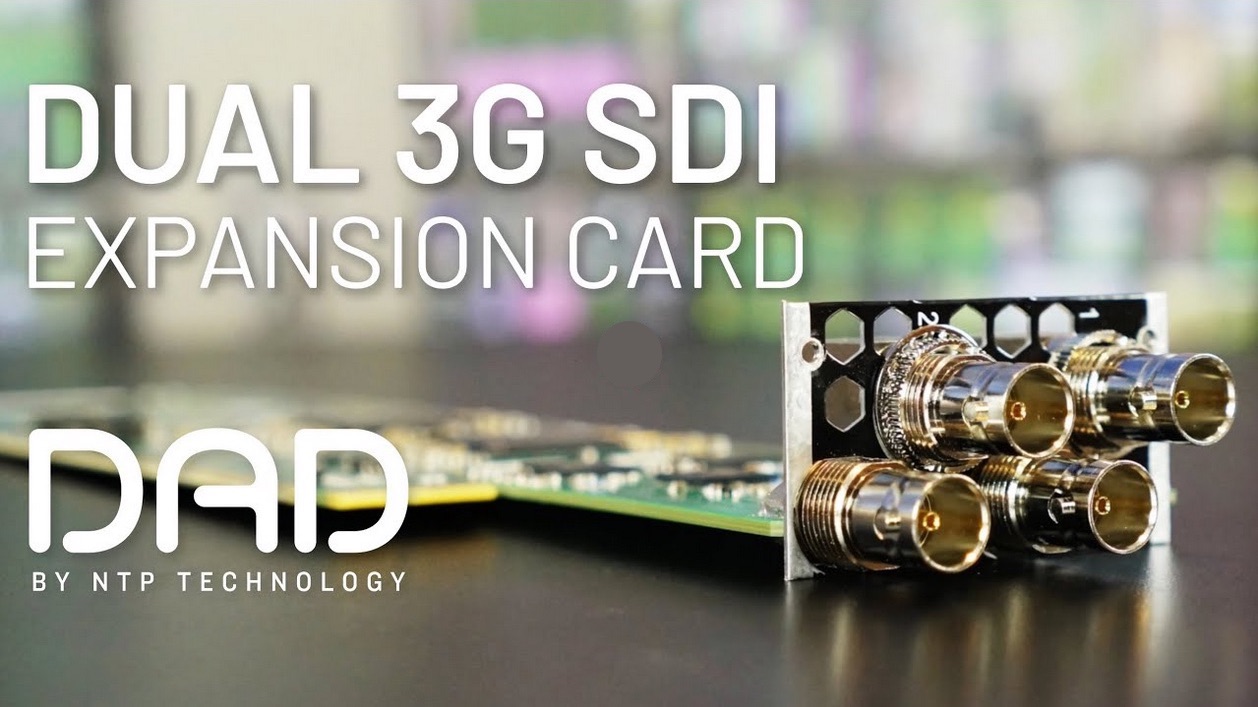

Dual 3G SDI Embedder/De-Embedder

• 2 x 3G SDI Embedder/de-embedder
• 16 channels pr. SDI stream
• Supports SD, HD and 3G SDI
• Sample Rate Converter on input and output
• SKU: CARD-2SDI

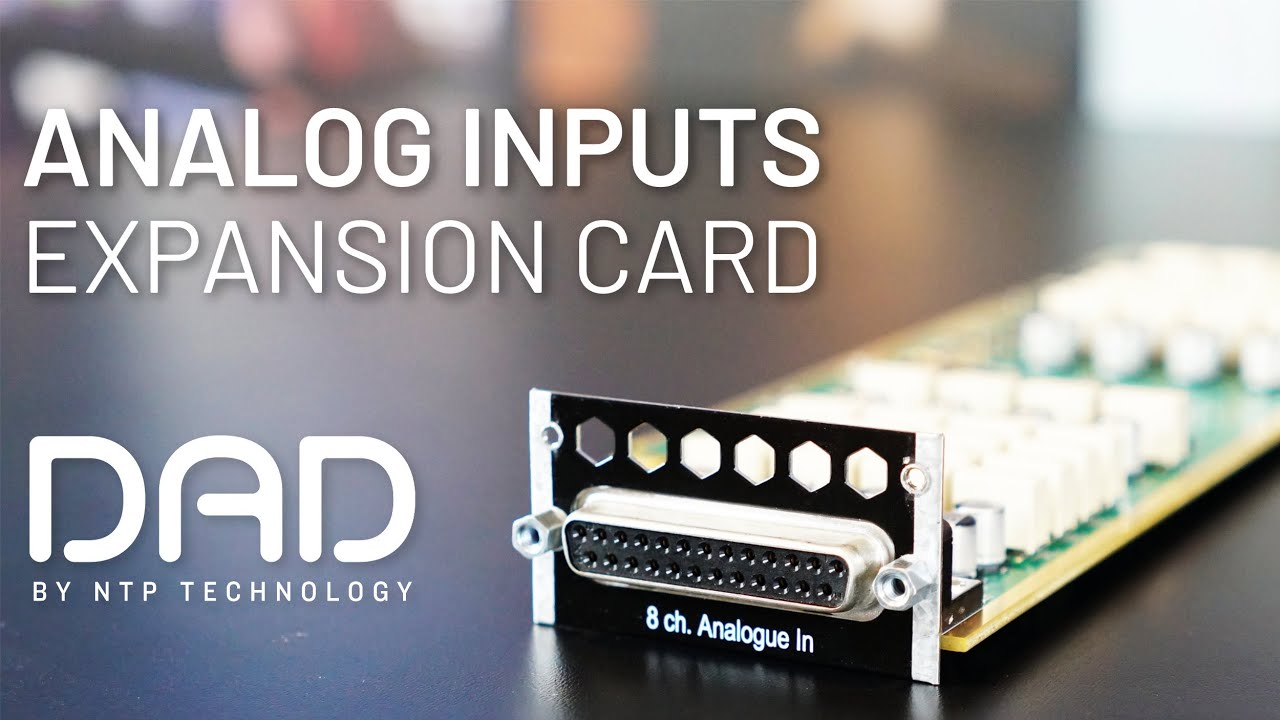

Analog Inputs

• 8 input channel pristine A/D conversion
• Card available with microphone and line level inputs or line level only
• Sample rates: 44.1 to 384kHz and DSD 64/128
• Dynamic Range > 125 dB
• THD+N < 120 dB @-3db FS
• MIC equivalent noise < 132 dB @100 Ohm
• Gain staging made with relays
• LINE card can be upgraded to MIC/LINE by license
• SKU: CARD-L8 (LINE only)
• SKU: CARD-M8 (MIC/LINE)

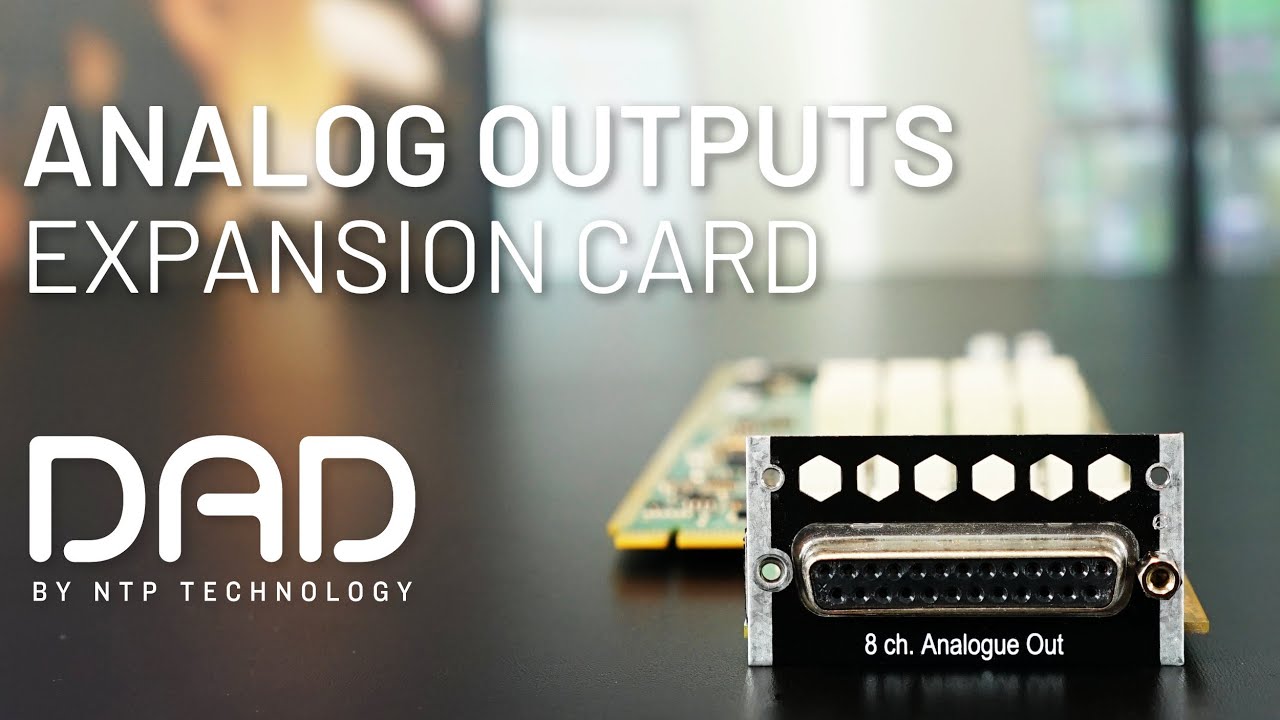

Analog Outputs

• 8 output channel pristine D/A conversion
• Sample rates: 44.1 to 384kHz and DSD 64/128
• Dynamic Range > 125 dB
• THD+N < 115 dB @-3db FS
• Gain staging made with relays
• SKU: CARD-DA8

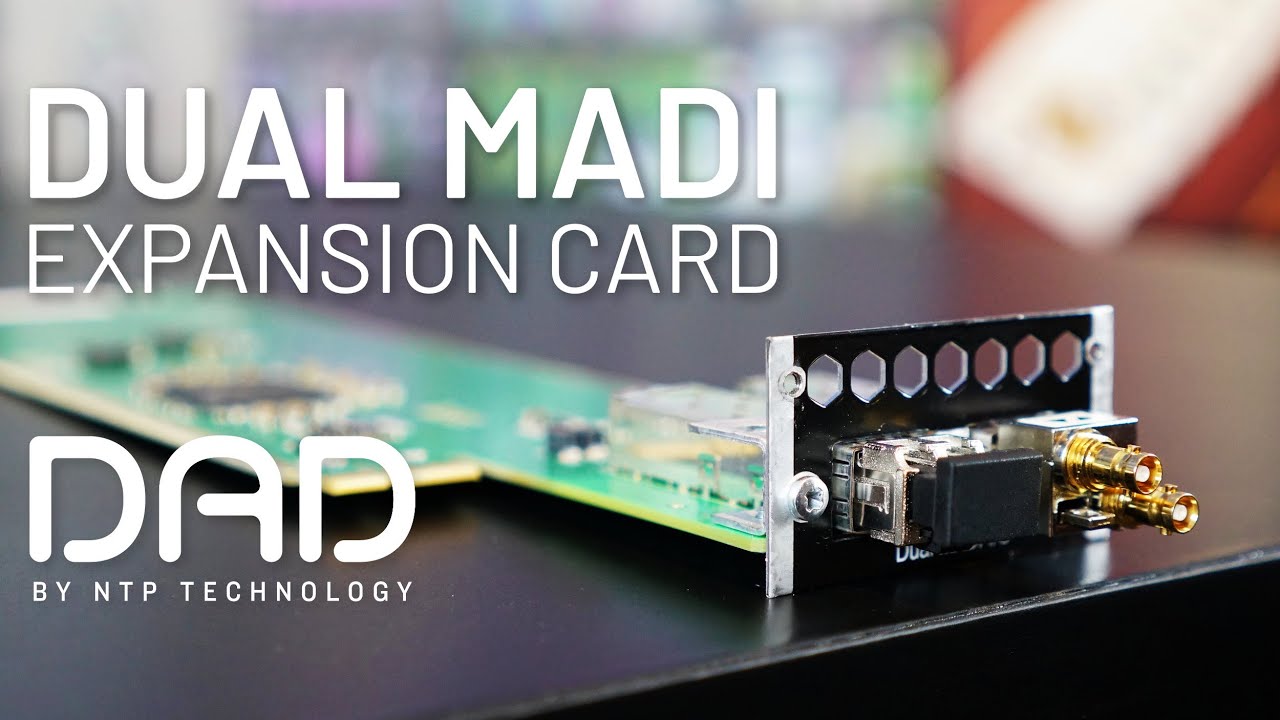

Dual MADI Interface w/ SRC In & Out

• 2 x 64 channels in and out
• 2 x MADI I/O ports via SFP modules
• Sample rates: 44.1 to 384kHz
• Channel count scales down with the sample rate
• Sample Rate Converter on inputs and outputs
• Compatible with Optical LC and HD-BNC SFP modules
• Support for redundant switching on the two MADI ports
• SKU: CARD-2MADI-SO

Dual MADI Interface w/ SRC In

• 2 x 64 channels in and out
• 2 x MADI I/O ports via SFP modules
• Sample rates: 44.1 to 384kHz
• Channel count scales down with the sample rate
• Sample Rate Converter on inputs
• Compatible with Optical LC and HD-BNC SFP modules
• Support for redundant switching on the two MADI ports
• SKU: CARD-2MADI

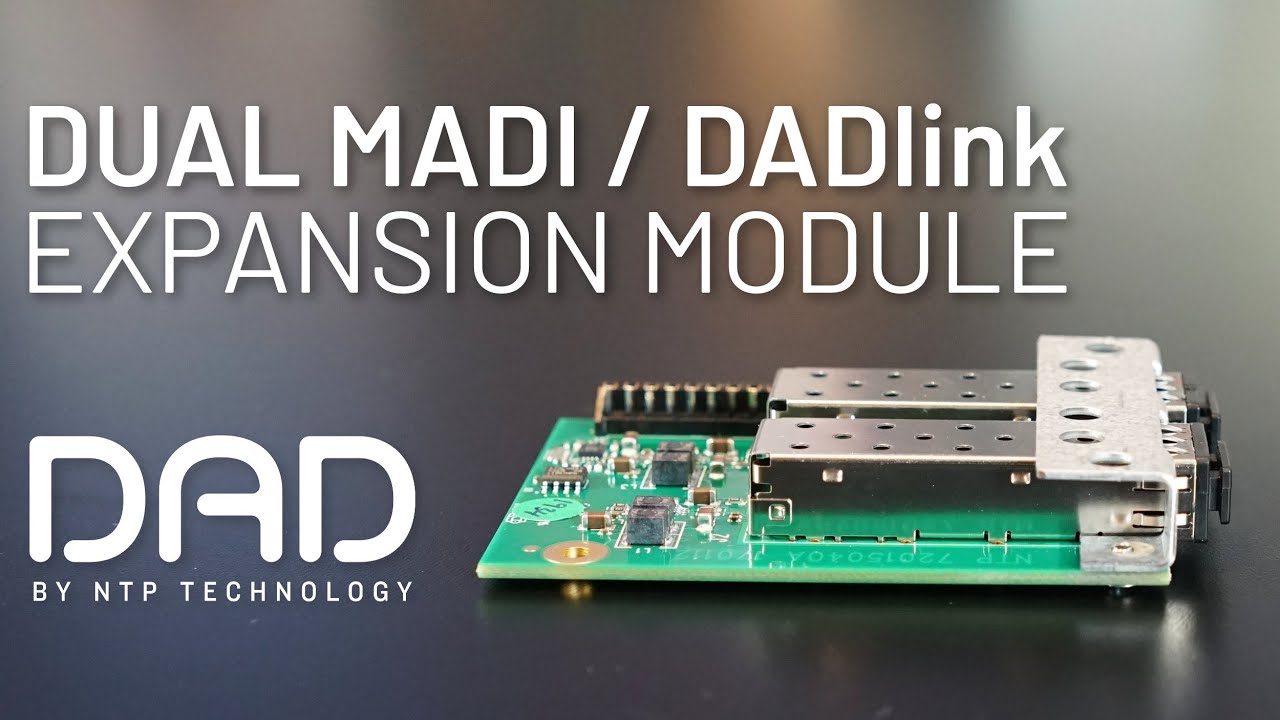

Dual MADI & DADlink Module

• 2 x MADI I/O with 2 x 64 channels via SFP
• 2 x DADLink I/O with 2 x 128 channels via SFP
• Sample rates: 44.1 to 384kHz
• Channel count scales down with the sample rate
• MADI Compatible with Optical LC and HD-BNC SFP modules
• DADLink Compatible with Optical LC SFP modules
• Support for NTP HotLink
• SKU: MOD-MADI-DADLNK

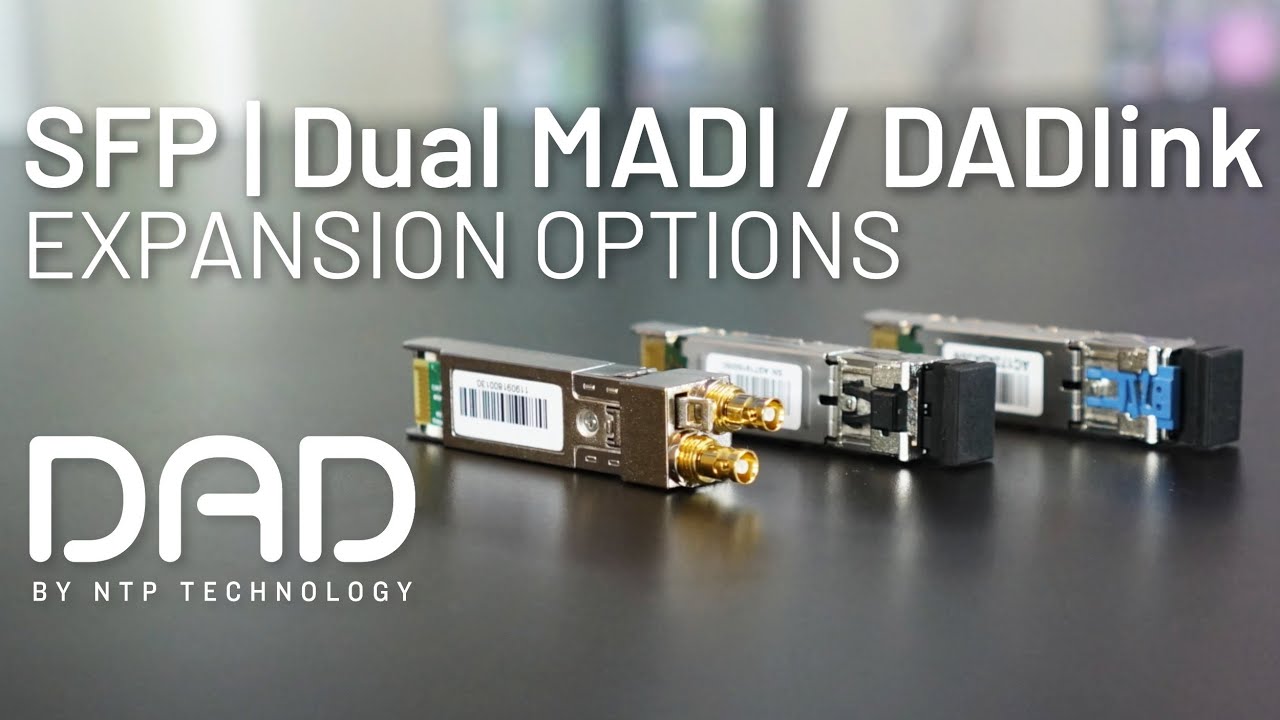

SFP Electrical Tranceiver Module for MADI

• HD / Mini BNC connectors
• For MADI, compatible with other brands
• Recommended cable length < 75m
• NTP P/N: MOD-SFP-COAX

SFP Optical Tranceiver Module for MADI

• 1310nm 100Base multi-mode type
• For MADI, compatible with other brands
• Operates with 50/125 μm and 62.5/125 μm multi-mode fiber
• Recommended cable length < 500m
• NTP P/N: MOD-SFP-1300-LD

SFP Optical Tranceiver Module for DADLink

• 1310nm 1000Base single-mode / multi-mode type
• For DADLink and (MADI long haul)
• Operates with 9/125 single-mode fiber and 50/125 and 62.5/125 μm multi-mode fiber
• Recommended cable length < 500m on multi-mode fiber, < 2km on single-mode fiber
• NTP P/N: MOD-SFP-1300-LZ

See the DAD Expansion Options product page for downloads and videos
