DAV Electronics Monitor Pre-Amplifier

D.A.V. Electronics Monitor Pre-Amplifier

Monitor Studio Pre-Amplifier

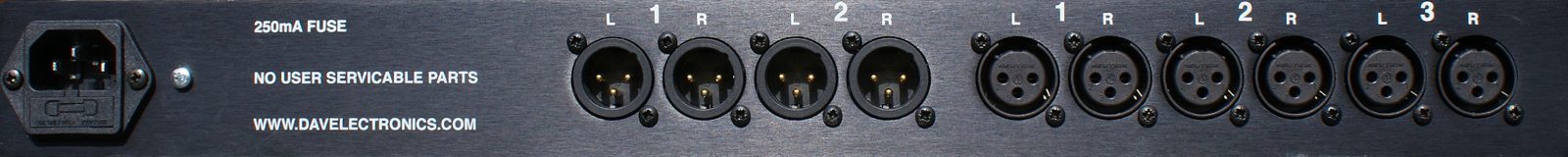

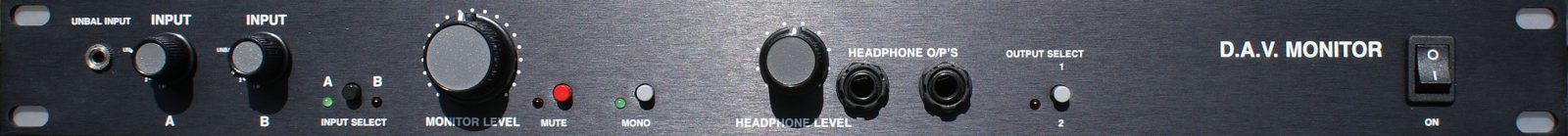

The Monitor Pre-Amplifier has 3 stereo inputs on the rear panel (XLR) and 1 stereo unbalanced input on the front panel (3.5mm jack). The outputs include 2 balanced pairs (XLR). Features include A/B input switching, mono button, mute button and a high quality headphone amp.

Features

INPUTS
3 stereo, electronically balanced [Rear panel XLR], 1 stereo unbalanced input [Front panel 3.5mm jack]

OUTPUTS
2 stereo electronically balanced [Rear panel XLR]

• A >> B input switching [For direct source comparison]
• Mono button [For stereo position / phase check]
• Mute button [Effects outputs only, primarilly for headphone use]
• High quality discreet headphone amplifier
• Low noise / distortion

Specifications

Dimensions: 19" 1U rack mount. Depth = 150mm
