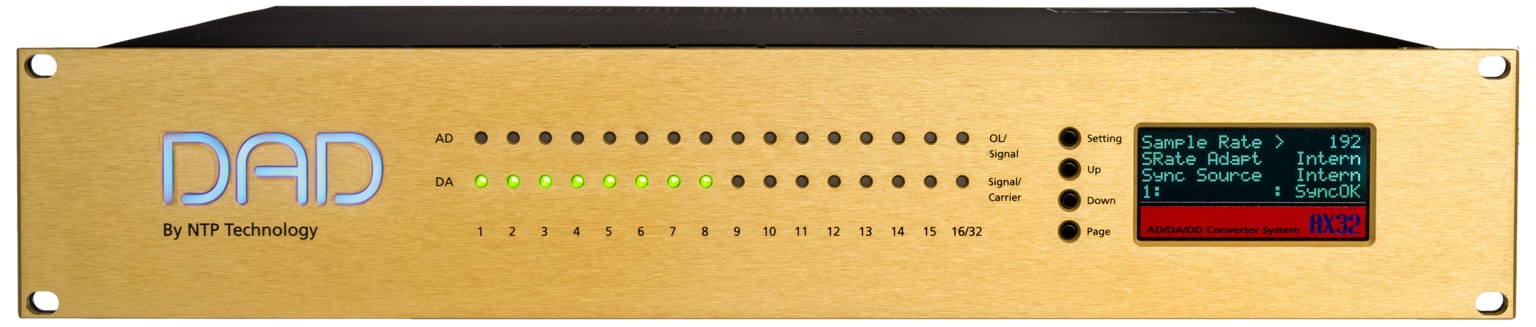

DAD AX32 AD/DA Converter

8-48 Channel AD/DA Converter & Digital Audio Matrix

AX32 is your audio routing centerpiece, digital format converter, world-class AD/DA converter and monitor controller. Quite simply, AX32 changes seamlessly between workflows in seconds, optimizing your production time and efficiency.

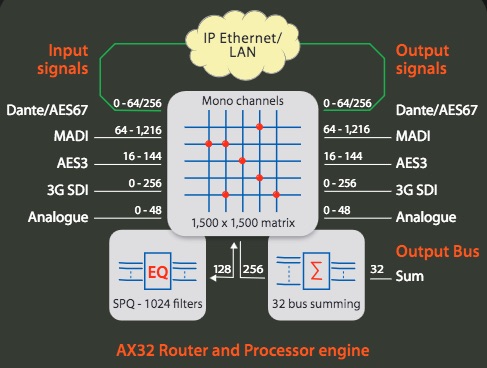

With the AX32you get pristine AD and DA conversion with superb sonic quality, versatile I/O structure and IP Audio via Layer 3 Ethernet (Dante) that follows the track of the AX24 with an enhanced performance in terms the sonic quality of the AD and DA conversion, up-to 48 analogue audio channels and a flexible digital signal interface, routing and distribution structure. With all I/O card and options installed, you can control a 1,500 x 1,500 matrix of audio channels. 8 I/O cards and 2 I/O modules can be installed. Just imagine the flexibility and swift change between workflows you would have right at your fingertips.

All operation and functional control is managed via the DADman control software.

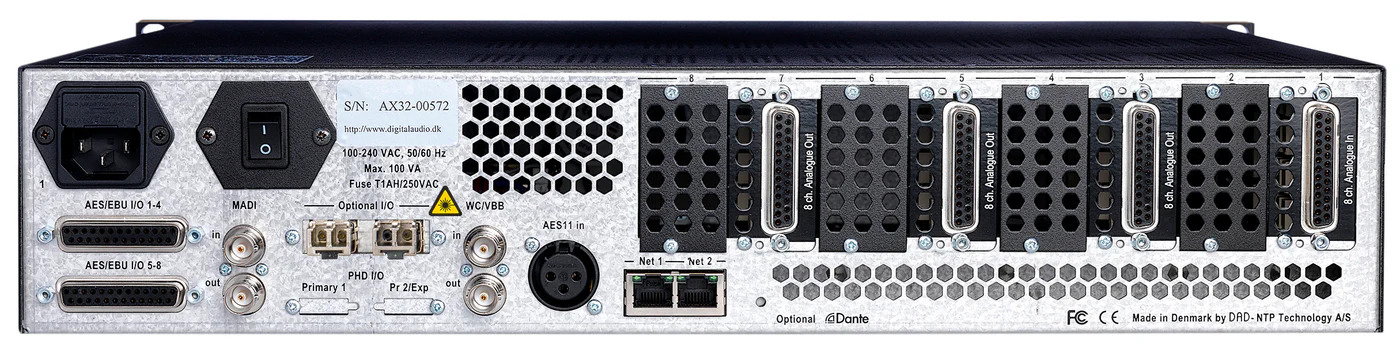

Versatile Digital Interface Structure

• Dante 128 ch. I/O Card w/ SRC
• 8 AES3 I/O interfaces
• MADI coax and optical I/O
• 3G SDI embedded audio I/O
• Ethernet IP audio interface for 64 I/O channels using Dante(TM)
• Sync via word clock, AES11, Video, and all digital I/O
• Adapt to incoming sample rate

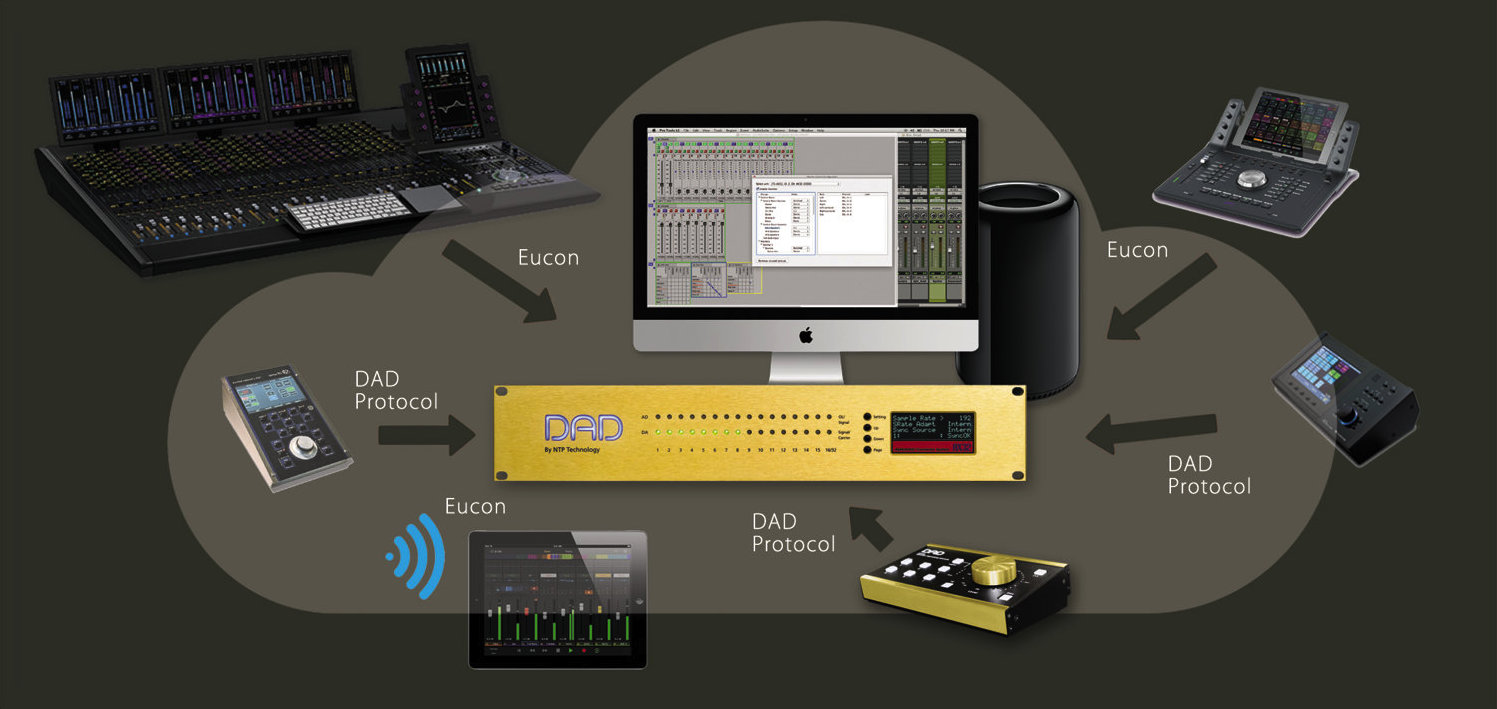

Easy Control of Converter Parameters

• Operation via DADman control software for Windows and macOS
• Ethernet control interface
• Compliant with the Dante Ethernet controller
