DAD AX64 Modular Audio Interface

Modulaire multi-format audio interface met 8 slots voor audio I/O cards

Thunder | Core Series

Prijs op
aanvraag

Voeg dit product toe aan uw offerte

In offerte
Leverings- en Retourbeleid

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

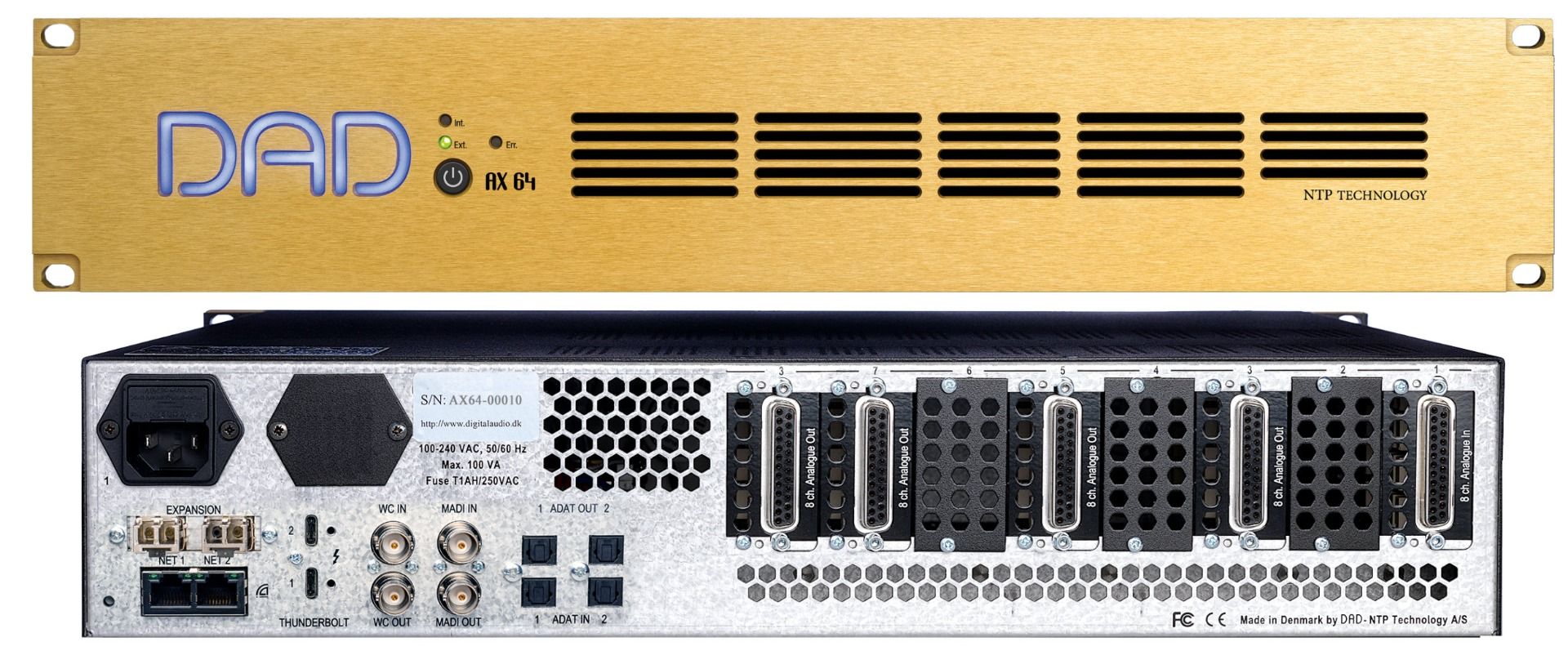

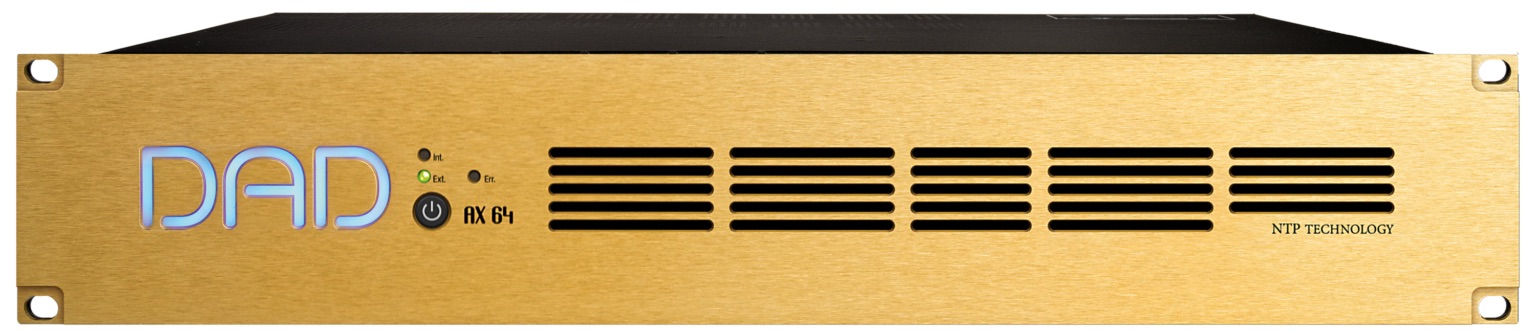

DAD AX64 Modular Audio Interface

NEXT-GEN AD/DA/DD & AUDIO ROUTING

AX32: “I made a dent in the pro audio universe.”

AX64: “Hold my beer!”



The AX64 is a versatile and modular multi-format audio interface with 8 slots for the acclaimed audio I/O cards known from the AX32 and Penta product family. Up to 8 analogue cards can be installed, providing 64 analogue input or output audio channels with the renowned DAD high-end sonic quality.

With tons of channels, a wide palette of digital connectivity, built-in SPQ processing, Eucon control compatibility, internal summing engine, Control | Pack and drivers for macOS and Windows 10, it is a pristine digital audio interface by any measure and is suited for just about any application. In short, AX64 is the ultimate modular multi-format interface, which is ready to take on a wealth of tasks in the Post Production, Studio, Live Music and Installed Audio spheres.

Overview

  • 1,872 Input and Output Channels
  • Multi-Format Audio A/D, D/A and D/D Converter
  • Digital Router and Monitoring Interface (Analog expansion available, but not included)
  • Thunderbolt 3 I/O (256 Ch.)
  • Dante AoIP I/O (256 Ch.)
  • MADI I/O (64 Ch.)
  • MADI SFP I/O Module Option Available (128 Ch. – SFP not included)
  • ADAT I/O (16 Ch.)
  • 8 Slots for Optional Multi-Format DAD I/O Cards

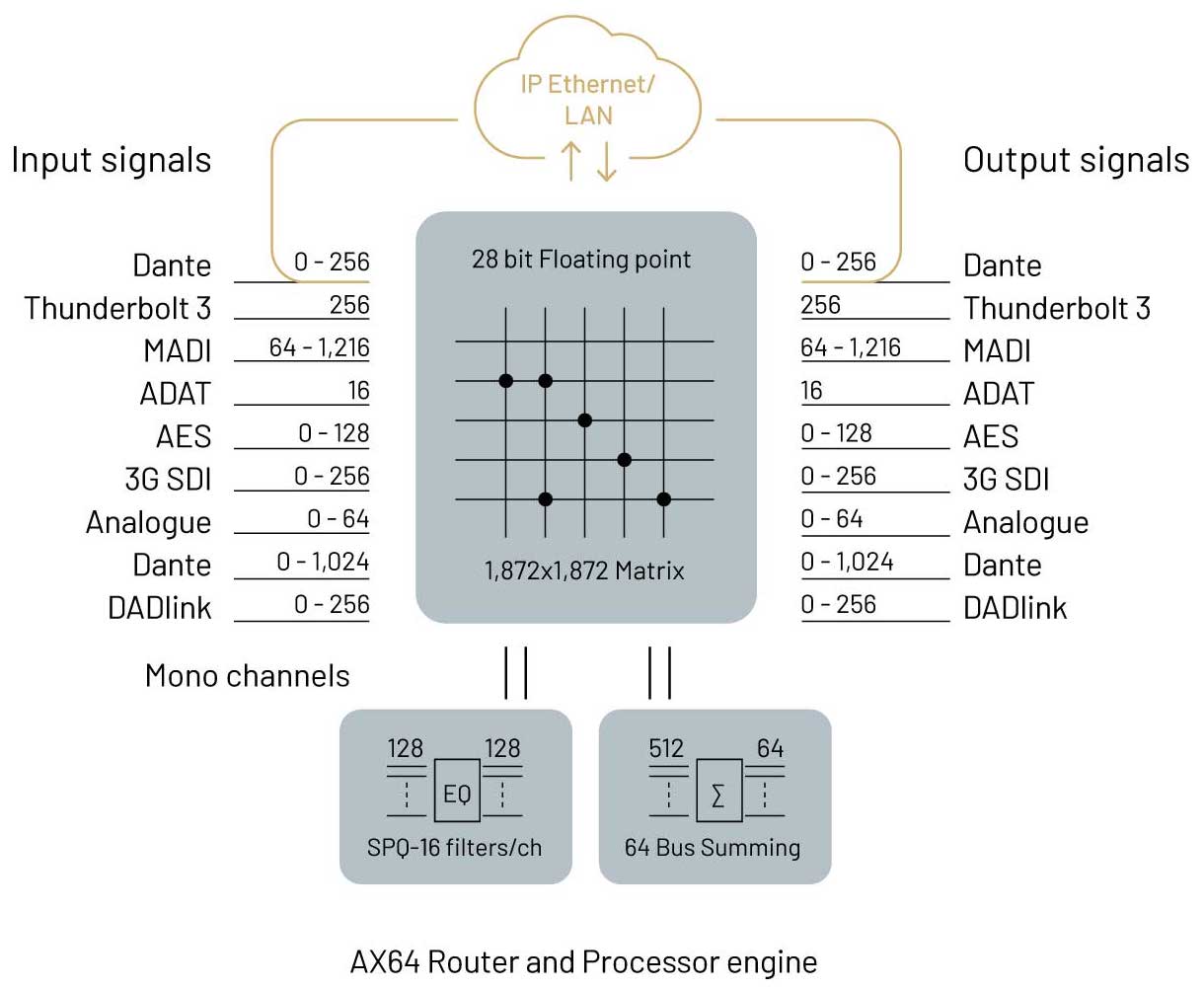

  • 512×64 Ch. PRO | MON Summing and Speaker EQ Processing

Features

  • Thunderbolt 3 I/O (256 channels at 48 & 96 kHz)
  • Dante AoIP I/O (256 channels at 48 kHz, 128 channels at 96kHz)
  • MADI I/O (64 channels at 48 kHz)
  • ADAT I/O (16 channels) / SPDIF (2 channels)
  • Up to 1024×1024 channels I/O via optional cards
  • Up to 256×256 channels I/O via optional module
  • 512×64 channel PRO | MON monitor control
  • Speaker EQ 128 channel w 16 filters
  • Control | Pack Preset management
  • 28bit floating point processing
  • Avid Eucon enabled devices via DADman
  • Apple macOS and Windows compatible software
  • Control via Ethernet or Thunderbolt connection
  • Word Clock I/O
  • Also available in a version with Dual 110/240V AC Power connection

Specifications

  • 2 x Thunderbolt 3 Ports w. 15W Power Source Each
  • 256 Bidirectional Channels at 44.1/48 kHz
  • 256 Bidirectional Channels at 88.2/96 kHz
  • 128 Channels at 192 kHz
  • 64 Channels at 384 kHz

Audio Drivers

macOS

  • Core Audio Thunder|Core Audio Driver
  • Compatible with Intel and Apple Silicon processors, as well as Big Sur macOS and forward
  • Core Audio Aggregates for More Applications I/O Control Connection for DADman
  • Control Connection for DADman

Windows

  • ASIO Thunder|Core Audio Driver
  • Compatible with Windows 10 and forward
  • One Application Can Connect to the Asio Driver
  • Control Connection for DADman

Key Applications

  • Music Production
  • Immersive Audio
  • Post & Film
  • Live Sound
  • House of Worship
  • Location Recording

DAD AX64 Modular Audio Interface product page
DAD Thunder | Core brochure
