DAD Core 256 Digital Audio Interface

Compacte maar krachtige digitale audio interface, perfecte Dante en MADI interface

Thunder | Core Series

Prijs op
aanvraag

Voeg dit product toe aan uw offerte

In offerte

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

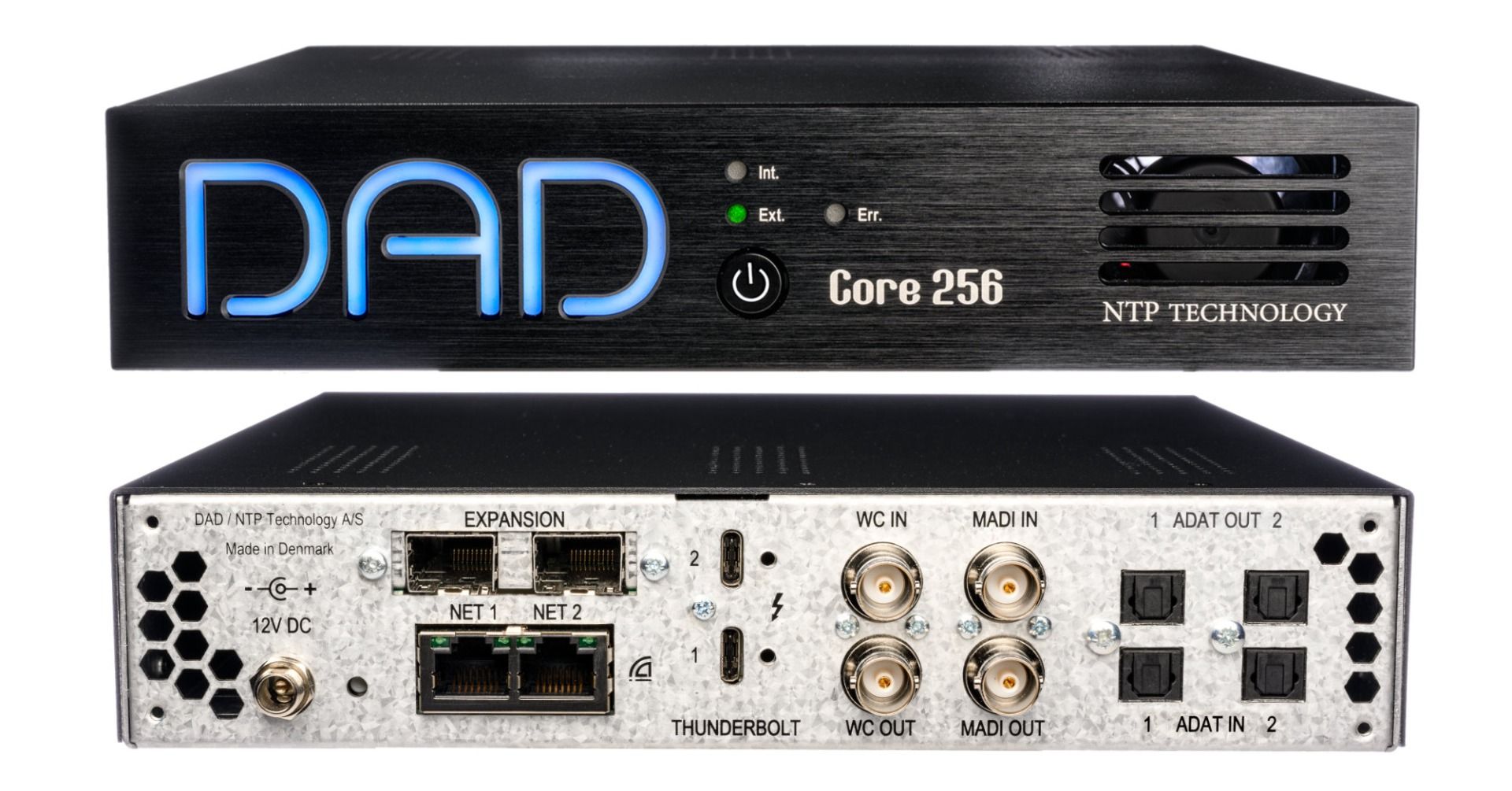

DAD Core 256 Digital Audio Interface

THE TINY LIVE SOUND HERO

Front of House. Monitor. Playback.

Core 256 may not take up much space, but the power you can squeeze out of this little box might just make your jaw drop to the floor. With tons of channels, a wide palette of digital connectivity, internal summing engine and drivers for macOS and Windows 10, it is a pristine digital audio interface by any measure and for just about any application.

However, there is one application that should be emphasized in particular: Core 256 is simply the perfect Dante and MADI interface for any demanding live sound application – be it FOH, Monitor Mix or redundant Playback Station powered by the DAD Control | Pack functionality.

But of course, it can also do other things such as sharing a 1U rack shelf with a Mac Mini running Dolby Atmos® Renderer, Dolby Atmos® Production Suite or Dolby Atmos® Mastering Suite.

For live sound, as well as immersive audio post production facilities, Core 256 will represent the missing link that streamlines and optimizes any multichannel workflows seamlessly.

Overview

  • 848 Input and Output Channels

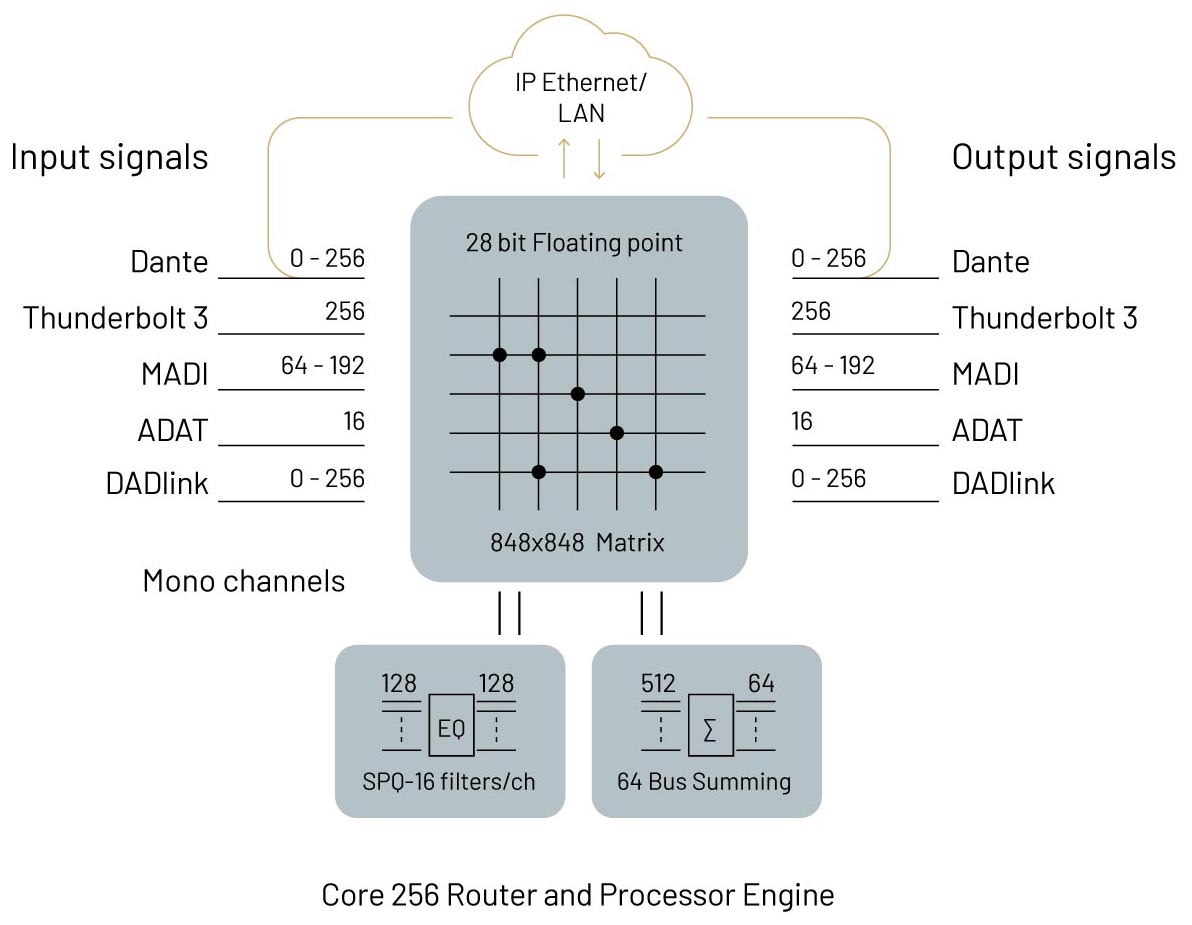

  • Digital Router and Monitoring Interface
  • Thunderbolt 3 I/O (256 Ch.)
  • Dante AoIP I/O (256 Ch.)
  • MADI BNC I/O (64 Ch.)
  • MADI SFP I/O Module Option Available (128 Ch. – SFP not included)
  • ADAT dual TosLink I/O (16 Ch.)
  • 512×64 ch. PRO | MON Summing and Speaker EQ Processing
  • Sample rates supported from 44.1 to 384 kHz

Features
The basic I/O configuration for the Core 256 interface is:

  • 2 Thunderbolt 3 Ports (each w. 15W power)
  • 256 Bidirectional Channels at 48 & 96 kHz
  • ASIO / Core Audio Thunderbolt PCIe drivers
  • MADI/BNC-Optional 2 x SFP (LC fiber or HD/BNC coax)
  • ADAT /Lightpipe (16 Ch.)
  • DANTE: 256 Ch. at 48 kHz, 128 Ch. at 96 kHz, 64 Ch. at 192 kHz (IP Core)
  • WC I/O
  • SPQ: 64 Ch. with 16 Filters
  • PRO | MON Support
  • Summing Processor 64 Output / 512 Input Busses
  • Internal Router: 1500 x 1500
  • 28 bit Floating Point Processing
  • Avid Eucon Enabled Devices via DADman
  • APPLE Silicon M1 and Intel Compatible Software
  • Control via Ethernet or Thunderbolt Connection
  • 12V DC External Power (Max 60W)
  • ½ Rack Unit 1U Height

Specifications

  • 2 x Thunderbolt 3 Ports w. 15W Power Source Each
  • 256 Bidirectional Channels at 44.1/48 kHz
  • 256 Bidirectional Channels at 88.2/96 kHz
  • 128 Channels at 192 kHz
  • 64 Channels at 384 kHz

Audio Drivers

macOS

  • Core Audio Thunder|Core Audio Driver
  • Compatible with Intel and Apple Silicon processors, as well as Big Sur macOS and forward
  • Core Audio Aggregates for More Applications I/O Control Connection for DADman
  • Control Connection for DADman

Windows

  • ASIO Thunder|Core Audio Driver
  • Compatible with Windows 10 and forward
  • One Application Can Connect to the Asio Driver
  • Control Connection for DADman



Key Applications

  • Live Sound
  • House of Worship
  • Immersive Audio
  • Post & Film
