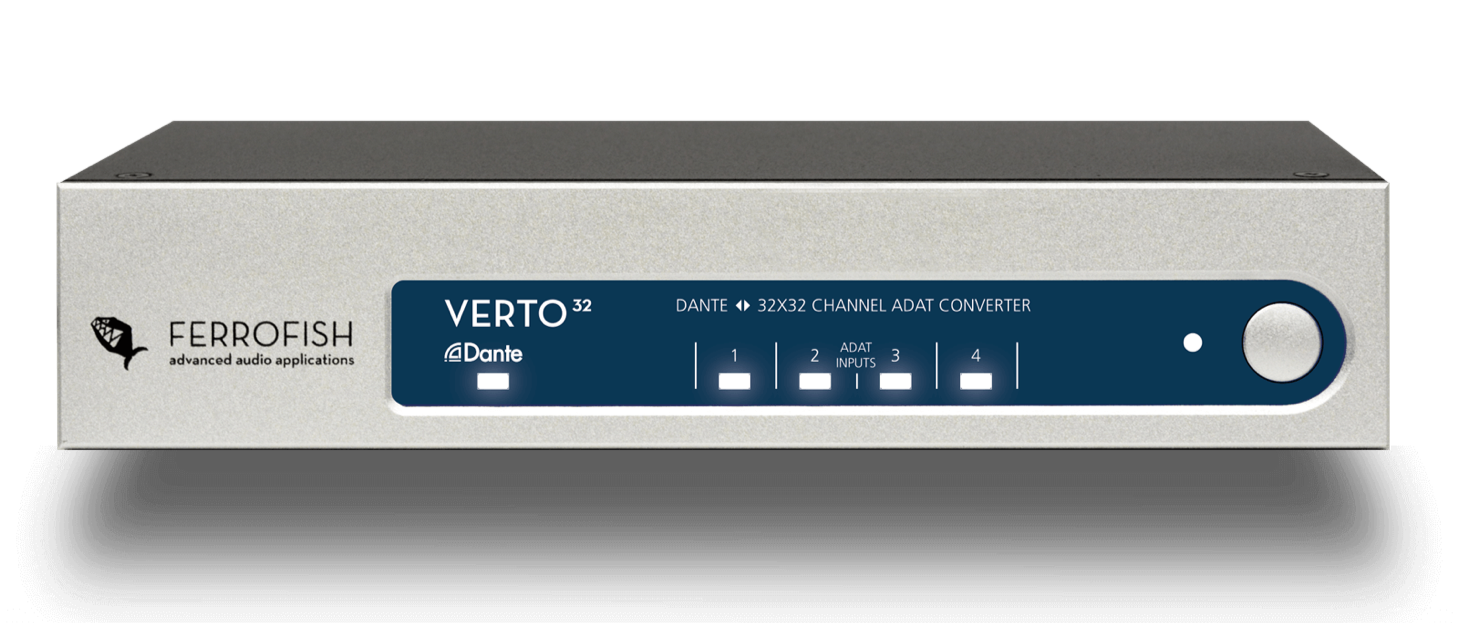

Ferrofish VERTO 32

Dante is the de facto standard for networking audio equipment. With the Verto 32 it’s now possible to easily integrate up to 32 x 32 channels via ADAT into a Dante network. No matter which ADAT device you use – the Verto 32 makes all channels immediately avalilable in the network: “plug and play”.

The ultra compact device has 8 ADAT connectors: 4 for transmitting, and 4 for receiving digital data (8 channels each).

On the Dante side there are two RJ45 sockets, also prepared for redundant operation. The Verto 32 supports up to 96kHz sample rate, MIDI jacks for control, and BNC wordclock jacks for external synchronization.

Two other Verto versions are available:
64×64 ADAT Interfaces: VERTO 64
64×64 MADI Interfaces: VERTO MX

Dante I/O

• 2x RJ-45 Ethernet port (PRIMARY/SECONDARY), 1 GBit Network
• 64 x 64 channel I/O (Dante Brooklyn II board built-in)

ADAT I/O

VERTO 32: 4x ADAT Input + 4x ADAT Output, optical TOSLINK

Channel count:

• 32×32 channels at 48kHz,
• 16×16 channels at 96kHz

VERTO 64: 8x ADAT Input + 8x ADAT Output, optical TOSLINK

Channel count:

• 32×32 channels at 48kHz
• 16×16 channels at 96kHz

MIDI I/O

• 2 x DIN5 connector for MIDI embedding/de-embedding

Wordclock I/O

• BNC: 1 x input, 1 x output
• 75 Ohm Termination set by default (switchable via Dante)

• Power Supply

  14.4VA (1.2A at 12V)

• Polyfuse internal, self-resetting
• 1 x power supply included

Operation

• Temperature range: 41°F up to 113°F (+5°C up to +45°C)
• Humidity: <75%, non-condensing

Weight/Size

• Weight: 0,9 kg
• Dimensions: 22 x 9 x 4,5 mm (without rack ears)

Optional accessories

• 19“ Rack mountain kit, metal (for mounting 1 x Verto in a 19” rack-space)
• Multi-range Power Supply 12V (EU)
• ADAT Cable Locking Plate (Part. No. 7027)
