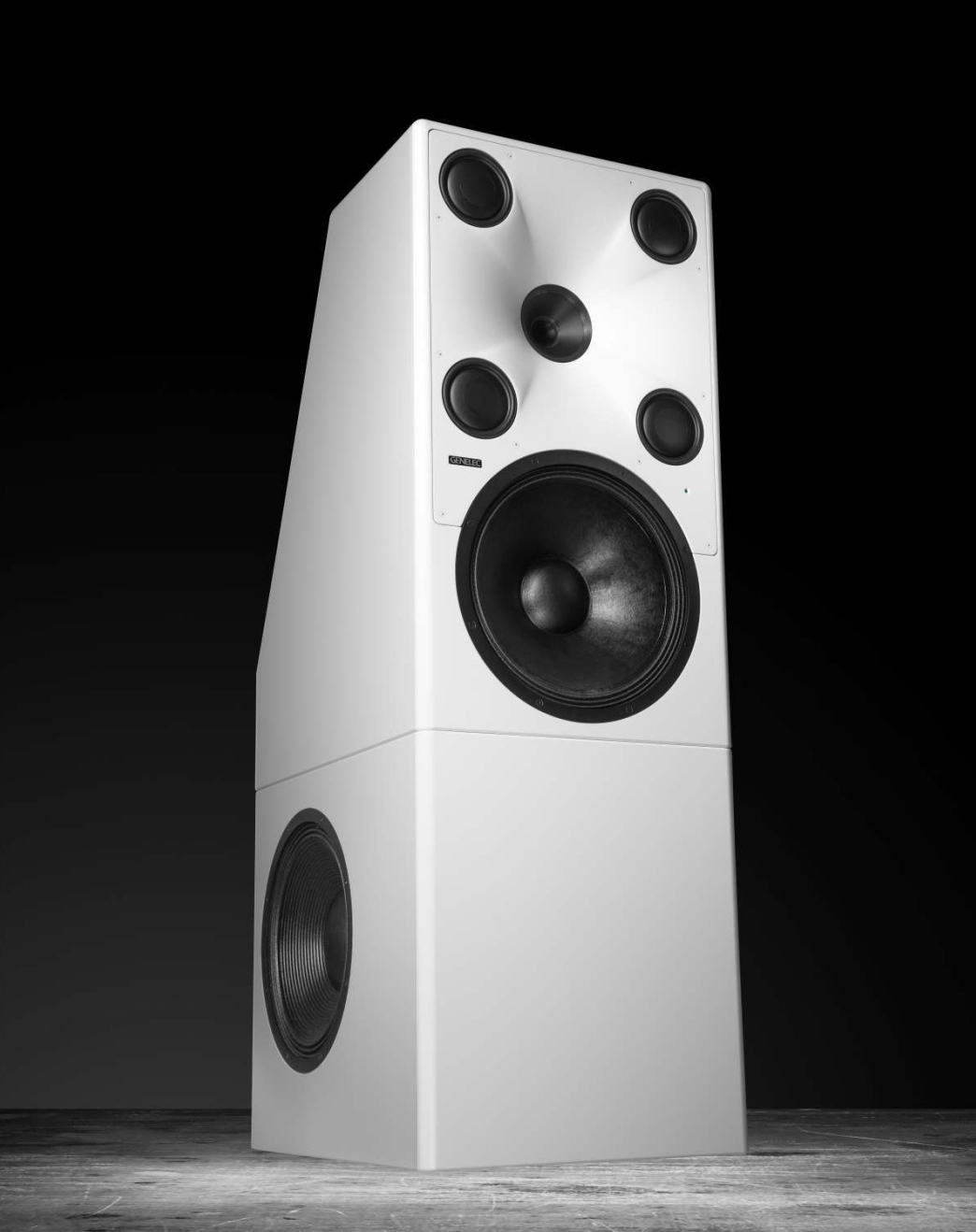

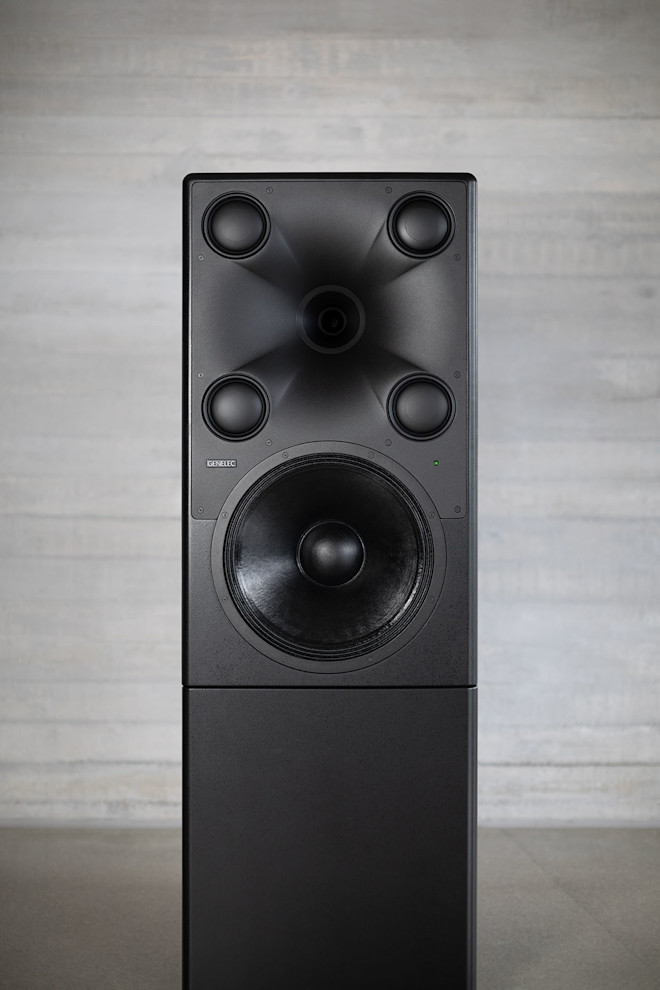

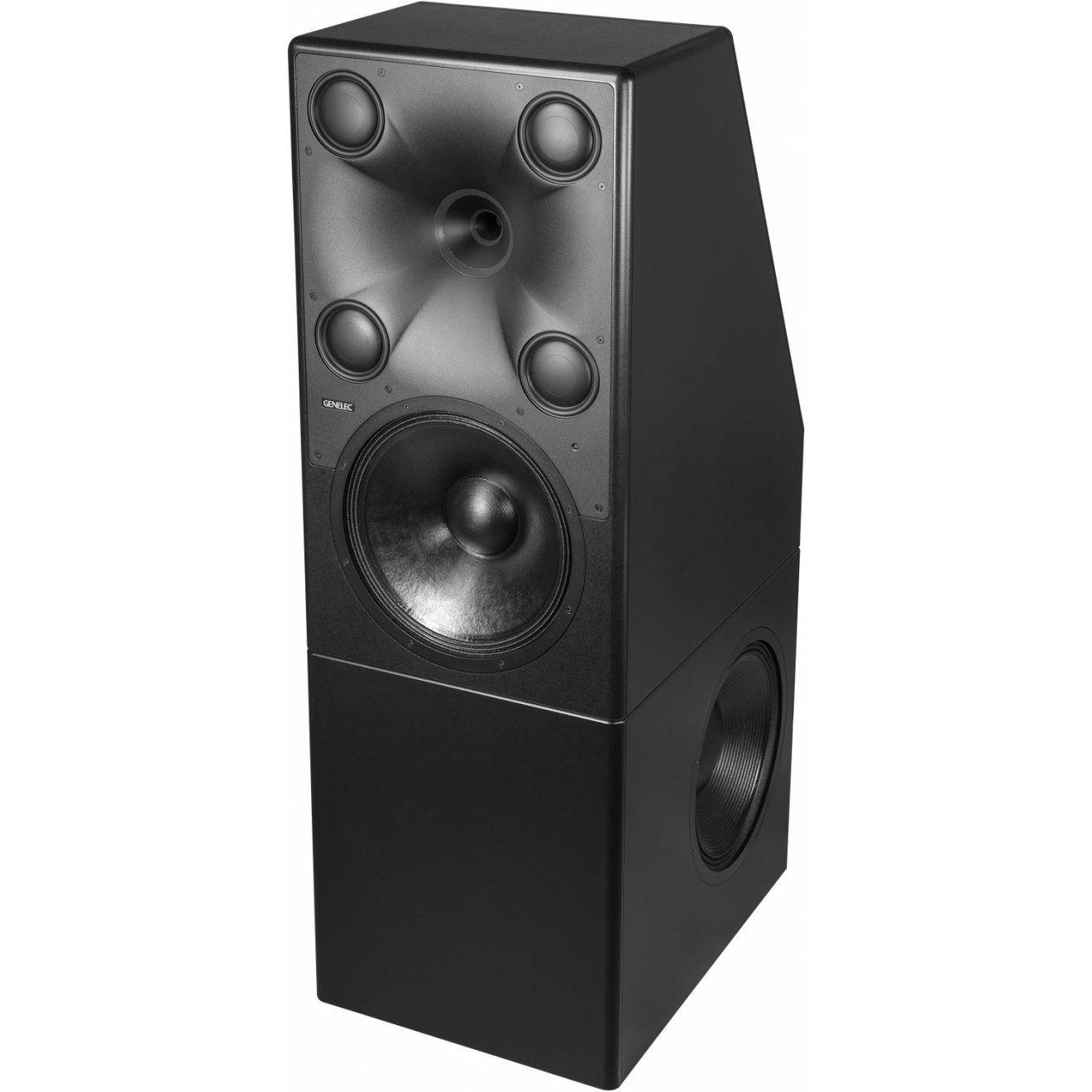

Genelec 8381 A SAM™ Main Monitor
Indrukwekkende vrijstaande Adaptive Point Source 5-weg Main Monitor met een frequentiebereik van 20 Hz tot 35 kHz, een totaal vermogen van bijna 6 kWatt en 126dB max SPL
8381A
Vragen? Betere prijs gezien?
Bel 0512 - 340457 of neem contact op!
Product omschrijving

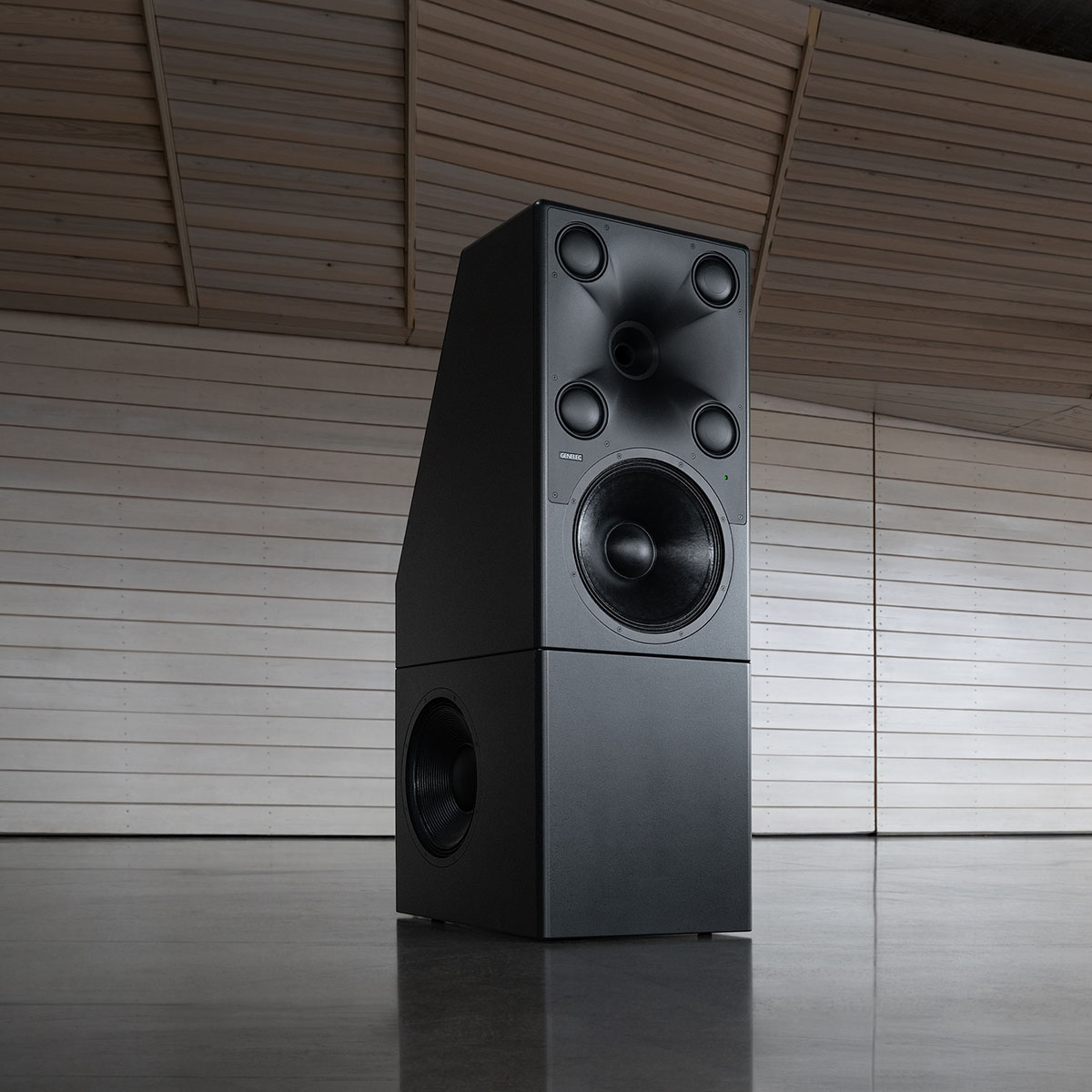

Genelec 8381A
SAM™ Adaptive Point Source Main Monitor
The Genelec 8381A empowers engineers and creators to perceive every sonic detail, offering true-to-life sound level and dynamics – with the full flexibility of free-standing monitor placement and advanced room adaption.
Tailored precisely to your room
Interacting with Genelec Loudspeaker Manager (GLM) software, the 8381A monitor system intelligently adapts its response to the monitoring room in the optimal way. This offers great flexibility to tackle even the most challenging environments – delivering precise presentation, including low frequency reproduction that integrates perfectly with the complete sound content.
The 8381A has been engineered to deliver the complete audible content, with a response extending to frequencies beyond the standard audible range – and fully aligned in the time domain – it delivers precise understanding of all the minute details in recorded waveforms. With its high SPL capacity, the 8381A is able to make even very low-level details audible, making it an uncompromising tool for monitoring.
Imaging you can trust
Quickly arrive at the right mixing and mastering decisions through uncompromising imaging detail. The point source operating principle of the 8381A offers the unique advantage of maintaining precise sound colour and imaging at all listening distances, enabling exceptional freedom of placement, and removing the vertical sound colour change typical of larger monitors.
The carefully designed Directivity Control Waveguide ensures clean off-axis sound colour, reducing the impact of the reverberant sound in the monitoring room on mixing decisions, while improving the accuracy and reliability of monitoring work in all rooms.
Standing on the floor, the 8381 locates the soundstage at the natural listening height, while supporting traditional high main monitor positions with the included incliner system. This enables the acoustic axis to be optimally configured towards the listening position for all installation heights.
A liberating new solution
The innovations of the 8381A push the limits of free-standing monitoring solutions, creating a powerhouse that deeply envelops the listener in flawless, true-to-life sound images.
The monitor excels at revealing the finest details of audio by combining immense, controlled power with pinpoint imaging precision, even in challenging monitoring spaces.
The point source design principle combined with optimised directivity control maintains the frequency balance in off-axis positions, supporting correct understanding of the sound colour when moving, standing or sitting in the monitoring room.
Genelec quality and support
Crafted with expert guidance from celebrated Industrial Designer Harri Koskinen, the 8381A is completely designed and built in Iisalmi, Finland. Drawing on more than four decades of company experience, Genelec's passionate engineering team meticulously designed and optimised every component of the 8381A. In doing so, Genelec has created a monitoring loudspeaker that's ideal for the audio world's most demanding applications – built to perform with effortless power and zero sonic compromise.
The 8381A powers a lifetime of creativity, so it comes included with access to the unique Genelec SonicAdvisor™ services. For any help and support from Genelec on your monitoring journey with the 8381A – from initial configuration to on-site consultation.
SonicAdvisor™ service
One on-site SonicAdvisor™ calibration service with certificate and one online, remote consultation within the first year from 8381A delivery
Technical Specifications
- SPL: 126 dB
- Amplifier Power: Total amplifier power 5926 W (Class D)
- Frequency Response: 20 Hz - 35 kHz ("-6 dB")
- Accuracy of Frequency Response: ± 1.5 dB
- Driver Dimensions: 2 x ⌀ 381 mm Bass + ⌀ 381 mm Bass + 4 x ⌀ 127 mm Midrange + ⌀ 127 mm Coaxial Midrange + ⌀ 25 mm Coaxial Tweeter
- Dimensions: H 1458 x W 500 x D 694 mm
- Weight: 235 kg / 518.1 lb

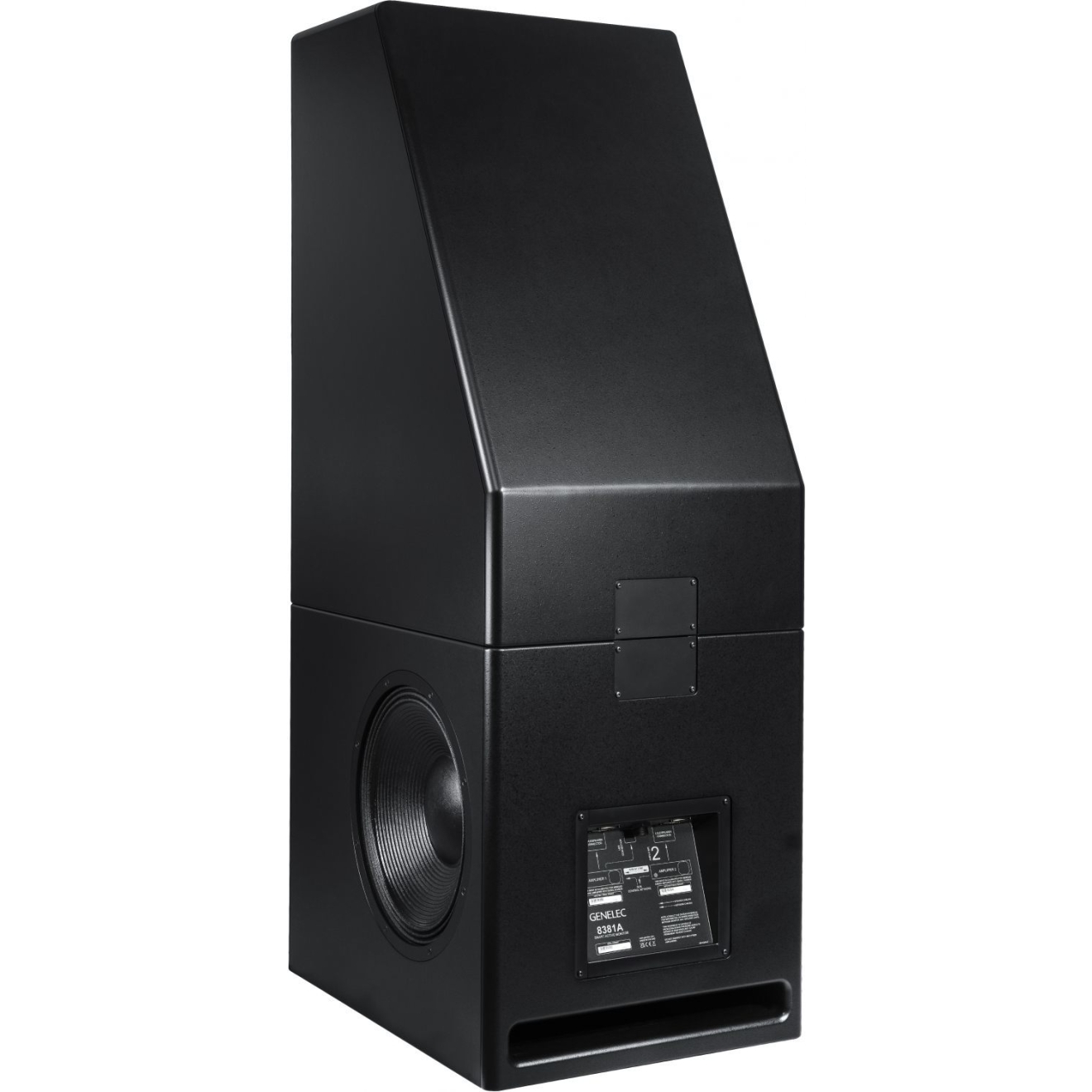

- Connections: 2 x XLR Analog Input / 2 x XLR Analog Output / 2 x XLR AES/EBU Input / 2 x XLR AES/EBU Output / 4 x RJ45 Control
Key Technologies
- Point Source Continued Directivity (PCD) Technology
- Minimum Diffraction Coaxial (MDC™) Driver Technology
- Quad Midrange System (QMS)
- Double Low-Woofer (DLW) System
- Smart Active Monitoring (SAM™) and GLM™ calibration technology
- Reflex Port Design
- Intelligent Signal Sensing (ISS™) Technology
- Directivity Control Waveguide (DCW™) Technology
- Optimised Amplifiers
- Protection Circuitry
- Active Crossovers
Delivery content:

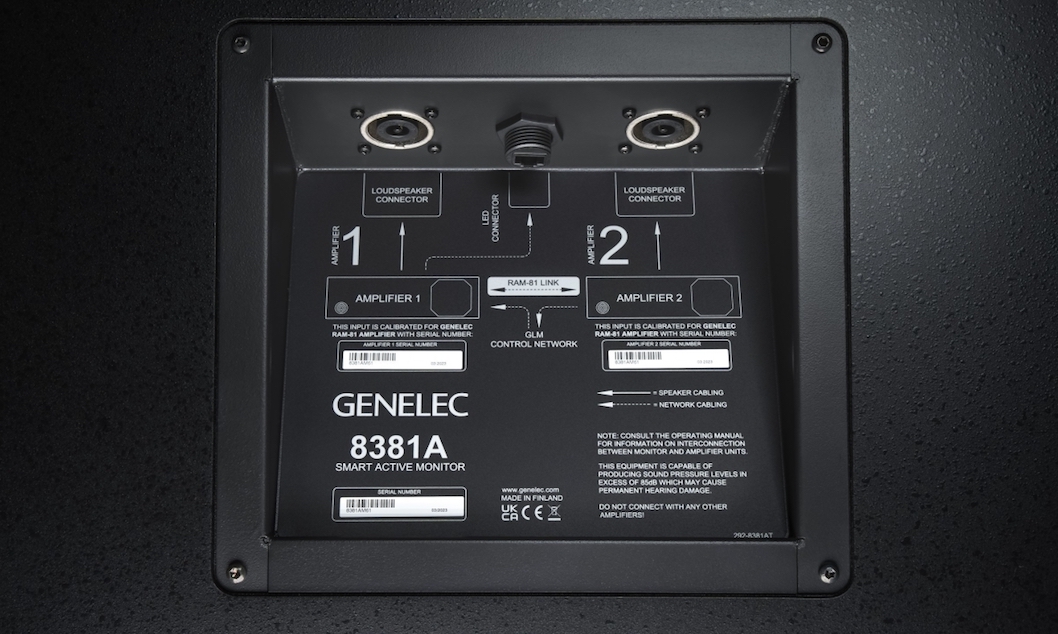

- The 8381A is shipped in a plywood-covered pallet containing the top and bottom enclosures (both needed for one complete unit), two individually calibrated RAM-81 amplifier units and an accessory kit, including incliner wedges to optimise the vertical acoustic axis.
- Quick Setup Guide with link to product website and documents, including the Operating Manual.
- 9320A SAM™ Reference Controller and GLM software access.

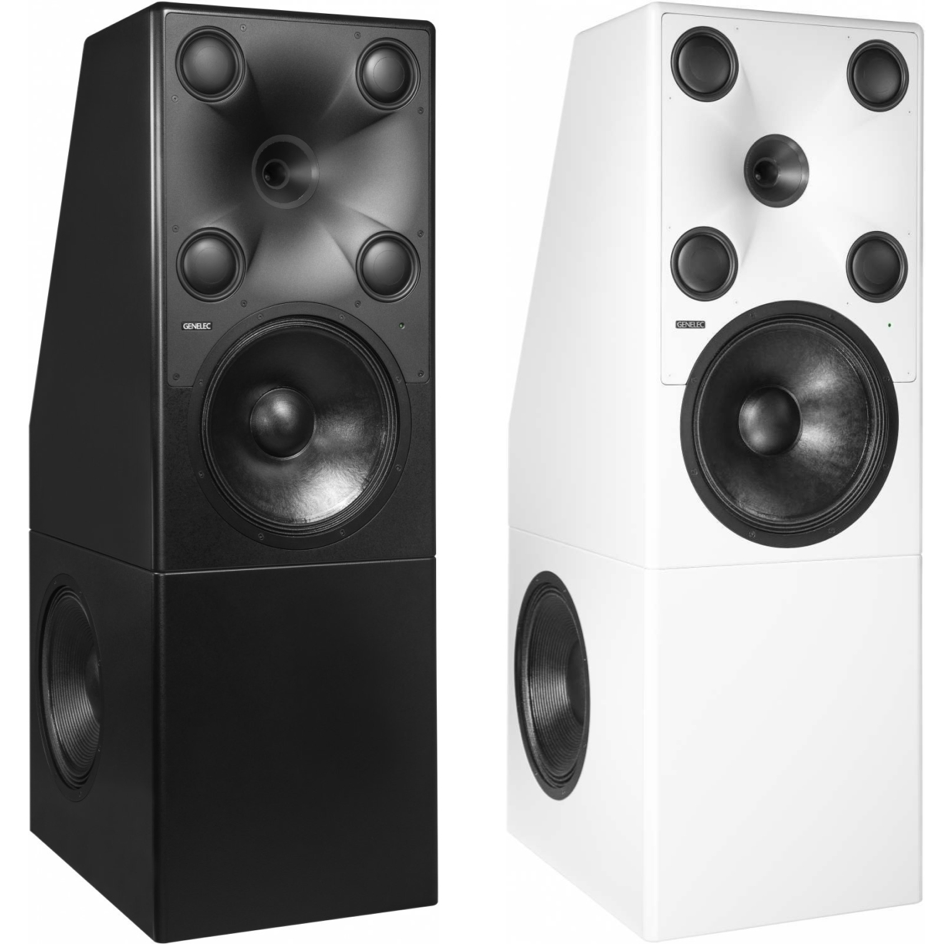

Color options
- Black
- White
