Heritage Audio Frame 8

FRAME 8: Enhance your 80 Series investment with
this Eight Slot Frame

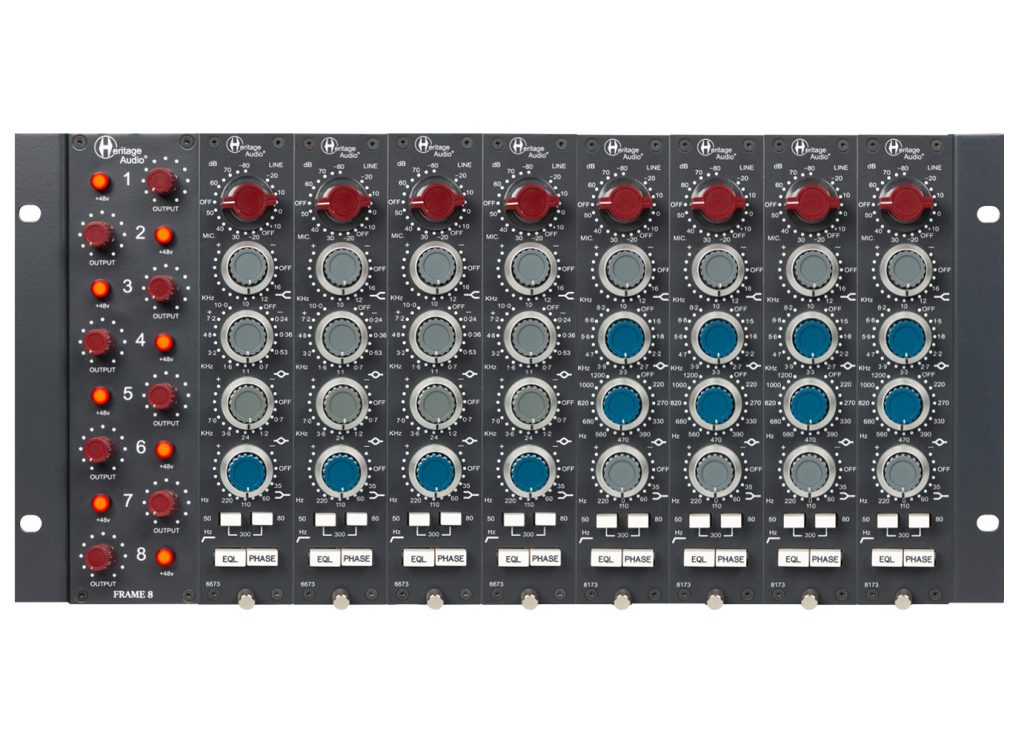

8-channel 80 series module frame.

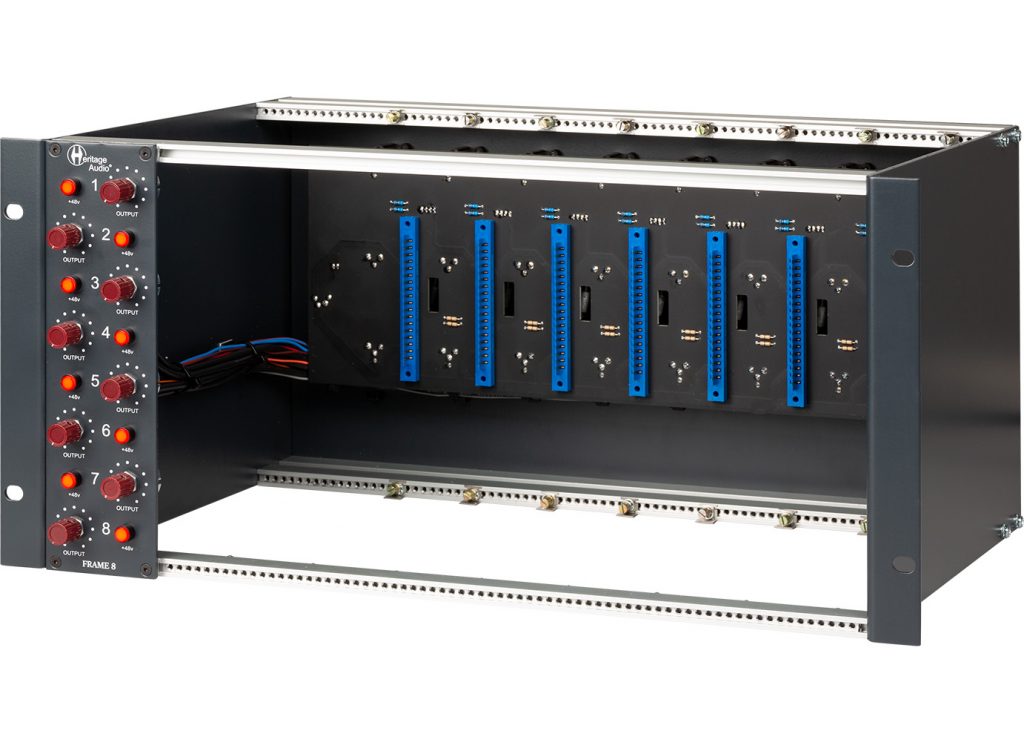

Our FRAME 8 rack is handmade in the EU employing the same exact ISEP mechanical components used in the Series 80 consoles. Aluminium rails, guides, etc. This will ensure your vintage modules, as well as any of the currently made, will fit like a glove.

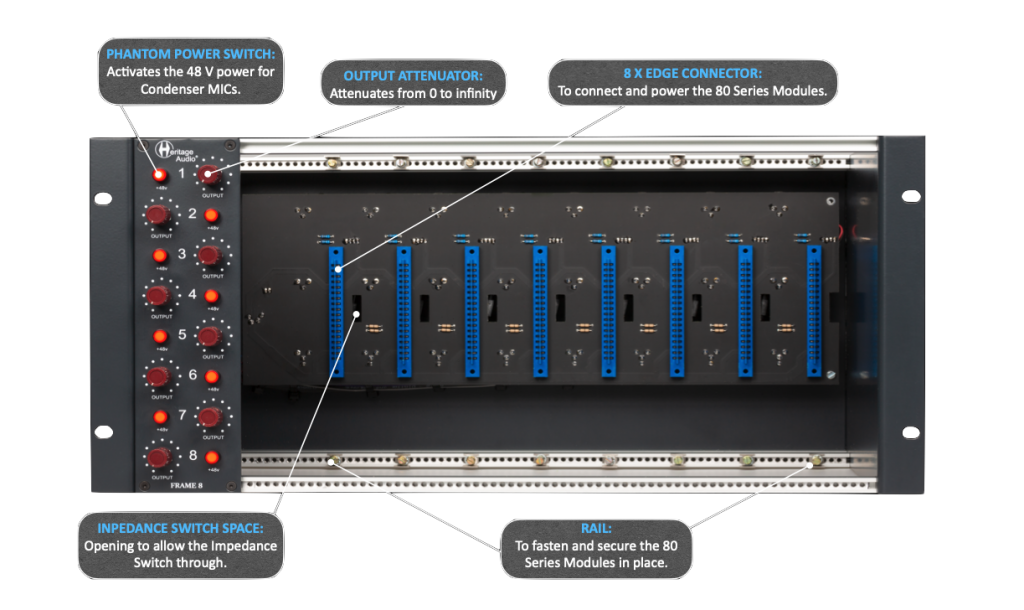

Every channel has its own output control as well as illuminated phantom switch.

Also, the FRAME 8 is ready for linking up to 8 2264 compressors in 2 busses, A or B.

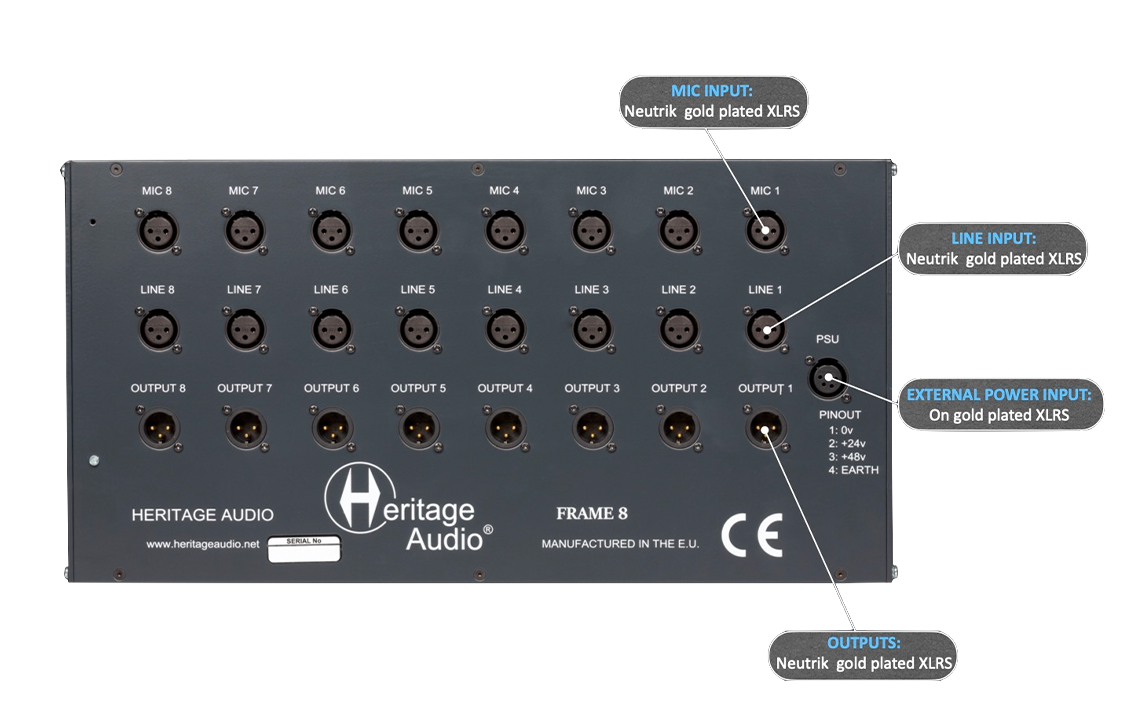

Back panel features Neutrik gold plated XLR connectors for MIC and LINE inputs, as well as outputs.

External Power Supply Unit is connected via a Neutrik gold plated 4-pin XLR. It is configurable for 220-240 V or 110 V. Power supply is included.

Specifications

• A 5 unit rack enclosure housing up to eight 80 Series modules when outboard operation is preferred. It features illuminated phantom power switches and output faders on every slot.
• Handcrafted in the EU employing the same mechanical components used in vintage Series 80 consoles.
• Neutrik gold-plated XLRs for MIC and LINE inputs.
• Neutrik gold plated XLR outputs.
• Illuminated red pushbuttons for +48 V phantom power (Less than 260 mA @ 48 V DC).
• Prepared for Compression Linking of buses A and B.
• Separate output controls per slot.
• Dimensions (W x H x L): 315 mm x 222 mm (5U) x 482 mm.
