Trinnov D-MON

500 Series NY-style preamplifier met built-in lifter

Prijs op
aanvraag

Voeg dit product toe aan uw offerte

In offerte
Leverings- en Retourbeleid

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

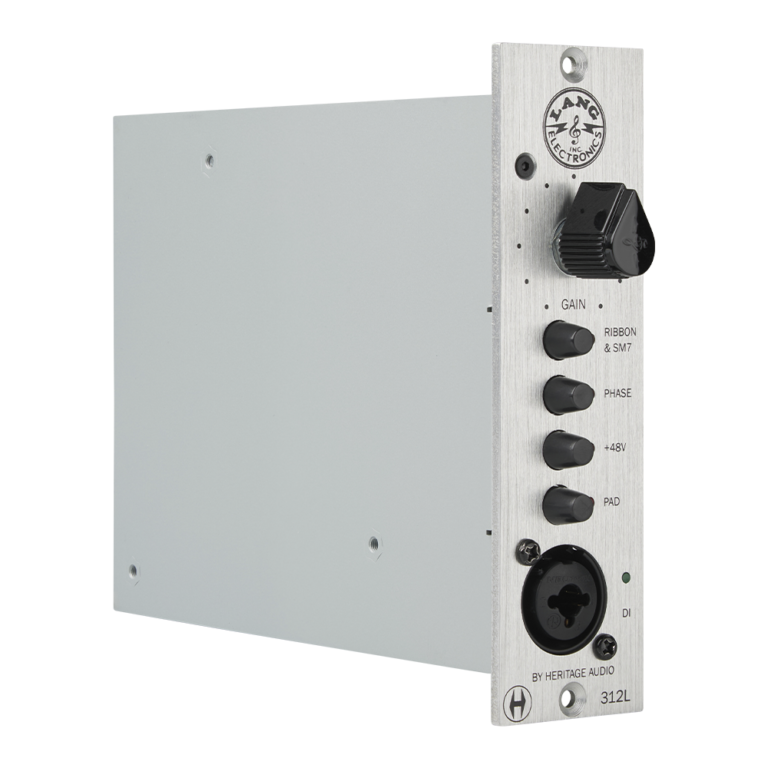

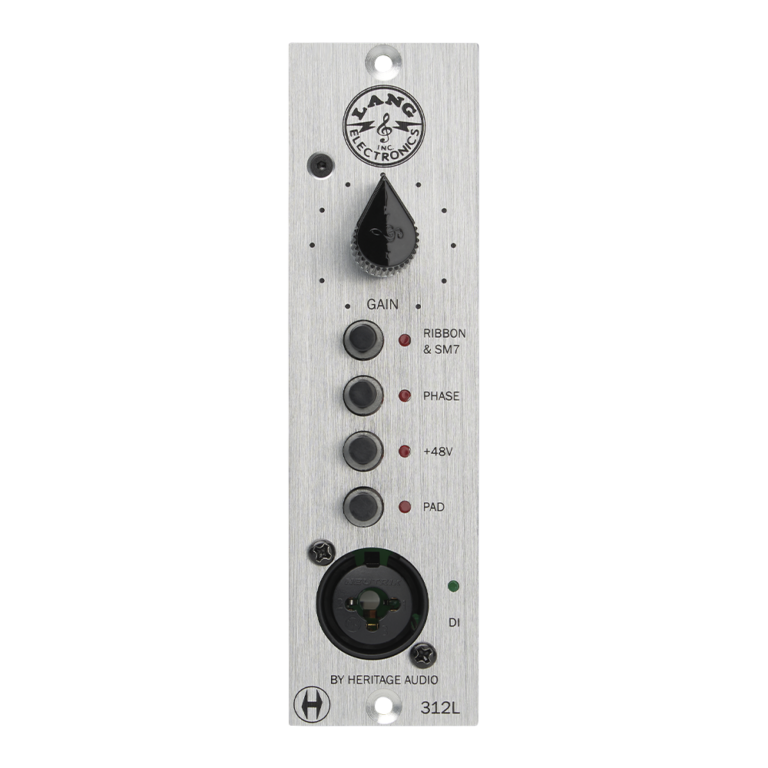

LANG 312L

For those that crave the energy, power and excitement that only New York style preamps can deliver, at a fraction of the price.

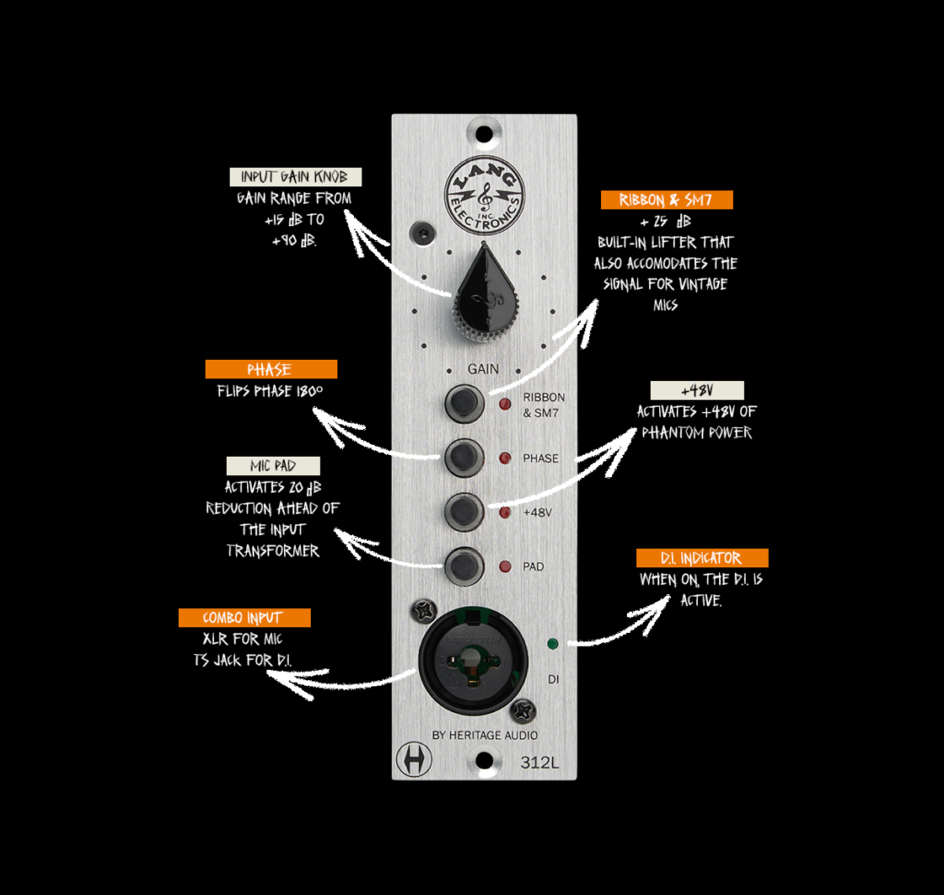

The LANG 312L is simply bursting with dBs…. With up to 90dBs of gain, it’s equipped with more power than almost any other Preamp out there. Now, you’ll be able to use each and every microphone in your collection without the need for any external boosting, and not even break a sweat. Especially useful for all you Ribbon and Vintage Mic users that never seem to be able to get the most from them…

Thanks to its extremely low internal noise and impressively fast response, you’ll actually hear dynamics you never knew existed.

Time to hear your Mics as they’ve never sounded before!

Bring all that energy and excitement that has made New York City the capital of the world into your recordings.

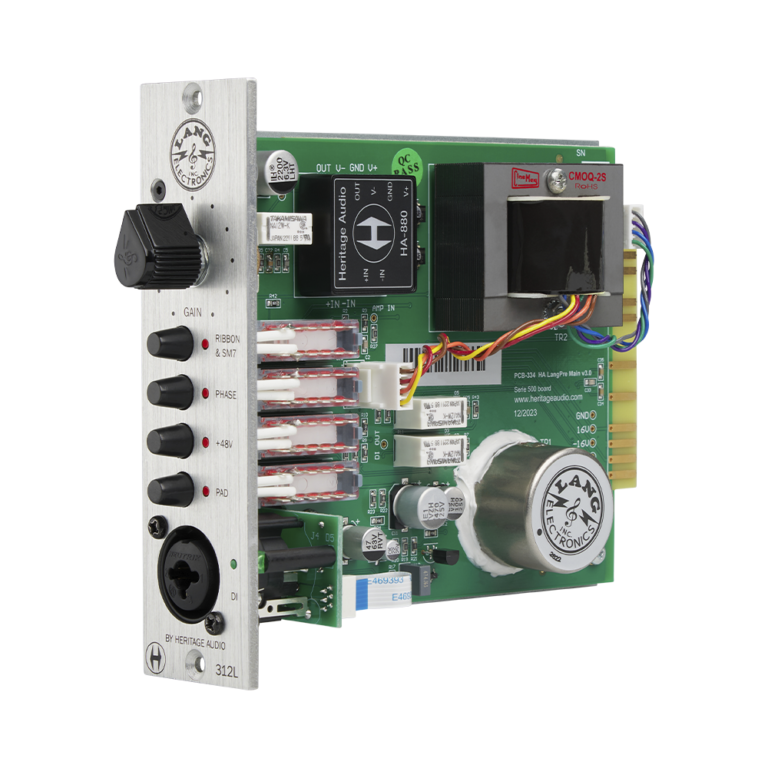

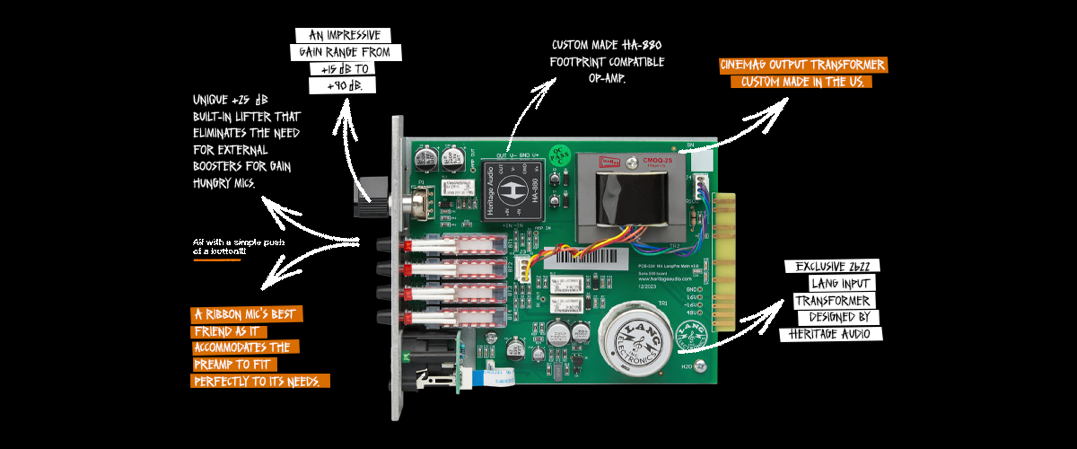

With our custom made  transformer balanced Inputs & Outputs (LANG & CineMag) you can be sure that a thick, solid and professional signal will be produced to ensure all of your broadcasting and recording needs are addressed.

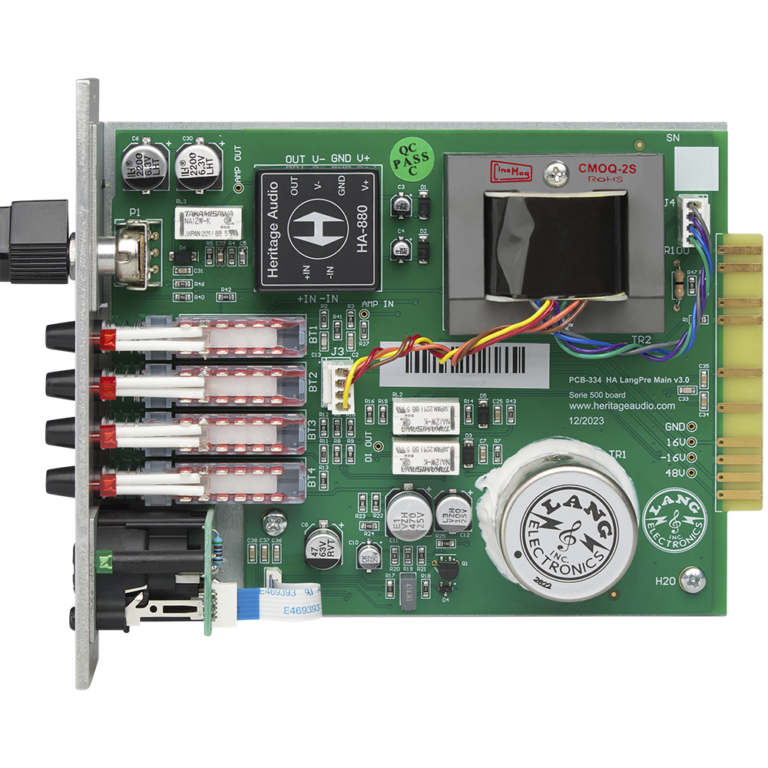

The newly designed HA-880 OP-Amp that sits at the core of the LANG 312L is footprint compatible and switchable with any other classic OP-Amps available.

All of this at an unheard of price that is less than 1/3 of what a unit of this calibre tends to go for.

Specifications

  • Microphone input impedance: 1200 Ω  , 10KΩ with lifter engaged,  perfect for lo gain ribbon mics. Input is transformer balanced and floating.
  • Line input impedance: 10 kΩ bridging, transformer balanced and floating.
  • DI input impedance: Greater than 2 MΩ, unbalanced.
  • Output impedance: Less than 75 Ω, transformer balanced and floating, to drive a load of 600 Ω (factory unterminated).
  • Maximum output: Greater than +30 dBu into 600 Ω.
  • THD: Less than 0.005 % at 1 kHz, less than 0.01 % at 100 Hz.
  • Frequency response: 20 Hz (+0.3 dB) to 20 kHz (-0.2 dB).
  • Maximum gain: 90 dB.
  • Noise: Less than -130 dBu EIN unweighted.
  • Power consumption: 50 mA per rail ±16 V DC.
