Little Labs i-VOG

Little Labs i-VOG

THE i-VOG

Analog bass resonance tool

The i-VOG is identical to the VOG, but it's a standalone version – no rack required.  Oh, but it does add a hi quality hi Z instrument in, which adds to its creative capability. The i-VOG lets users sweep a sharp peak resonance from 20 to 300 Hz, while anything below the peak is rolled off at a steep -24dB per octave. This lets users focus on the low end they want, while eliminating low-end mush and unnecessary woofer excursion. A subharmonic can be the focus, or the fundamental, or upper harmonics. On a kick drum, for example, the overall effect of turning VOG’s frequency knob sounds like someone is tightening or loosening the drumhead. In a mix, VOG allows users to place the bass spectrum instruments so they do not interfere or get in the way of each other.

i-VOG FEATURES

• Stand-alone
• Separate audiophile grade power supply

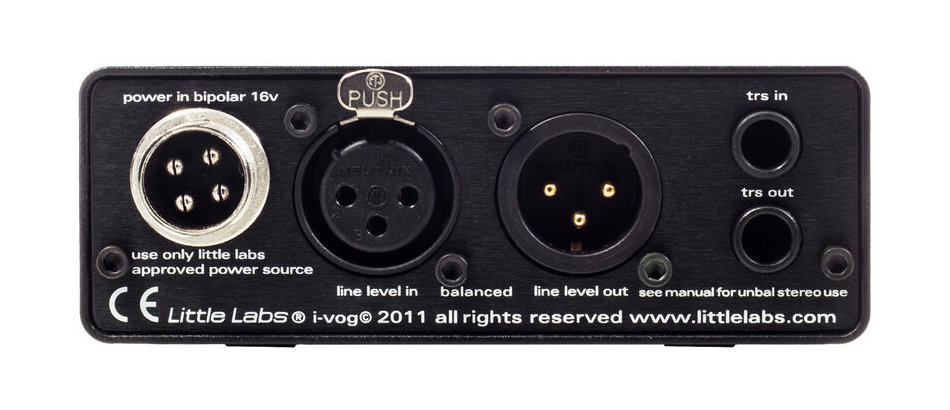

• XLR & TRS I/0
• High Z Instrument input
• Fully differential circuit topology
• Run mono balanced or stereo unbalanced
• Headroom!
• +28dB max level out mono
• +22dB max level out stereo

See the Little Labs i-VOG product page for more information and downloads.

The VOG is also available in the original 500 series format.
