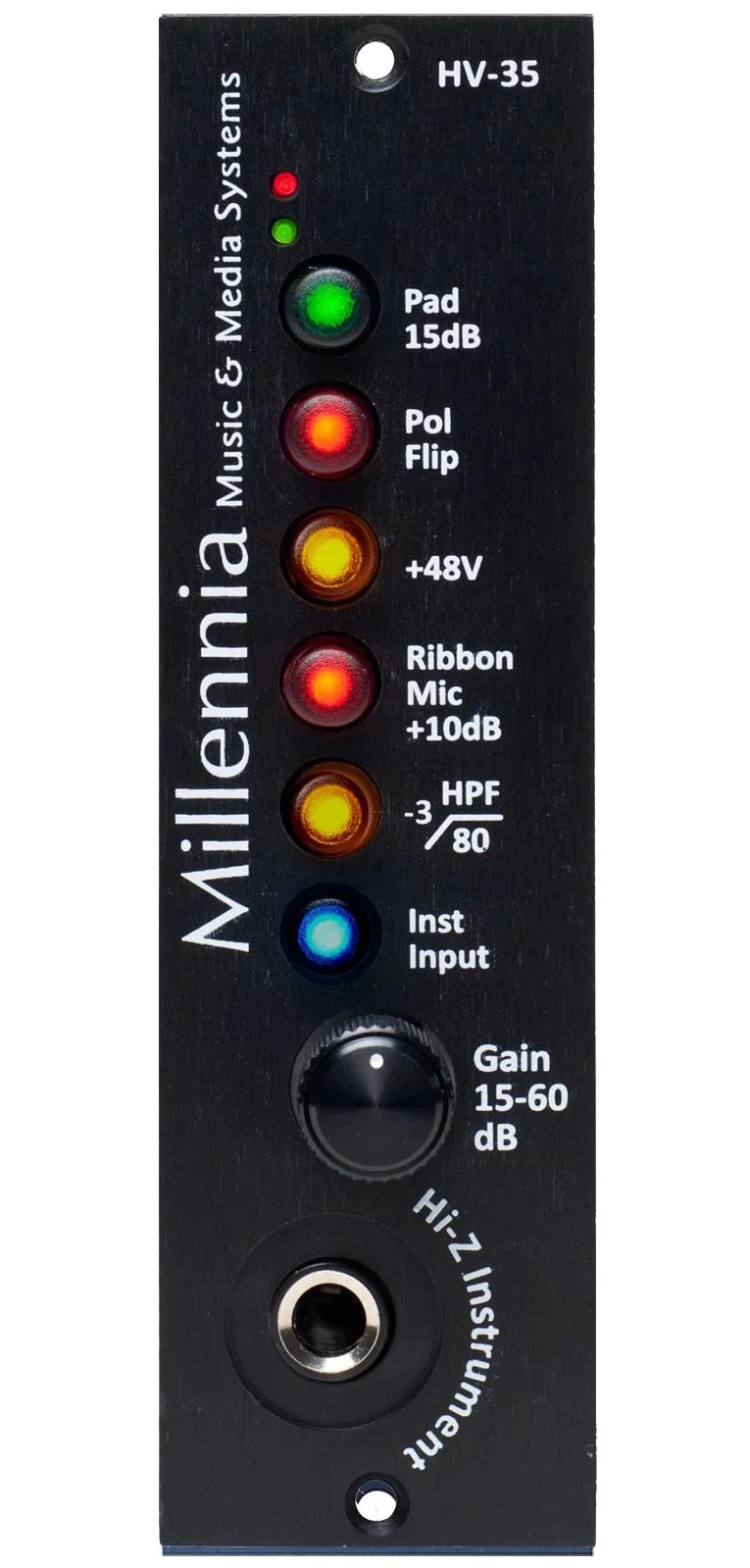

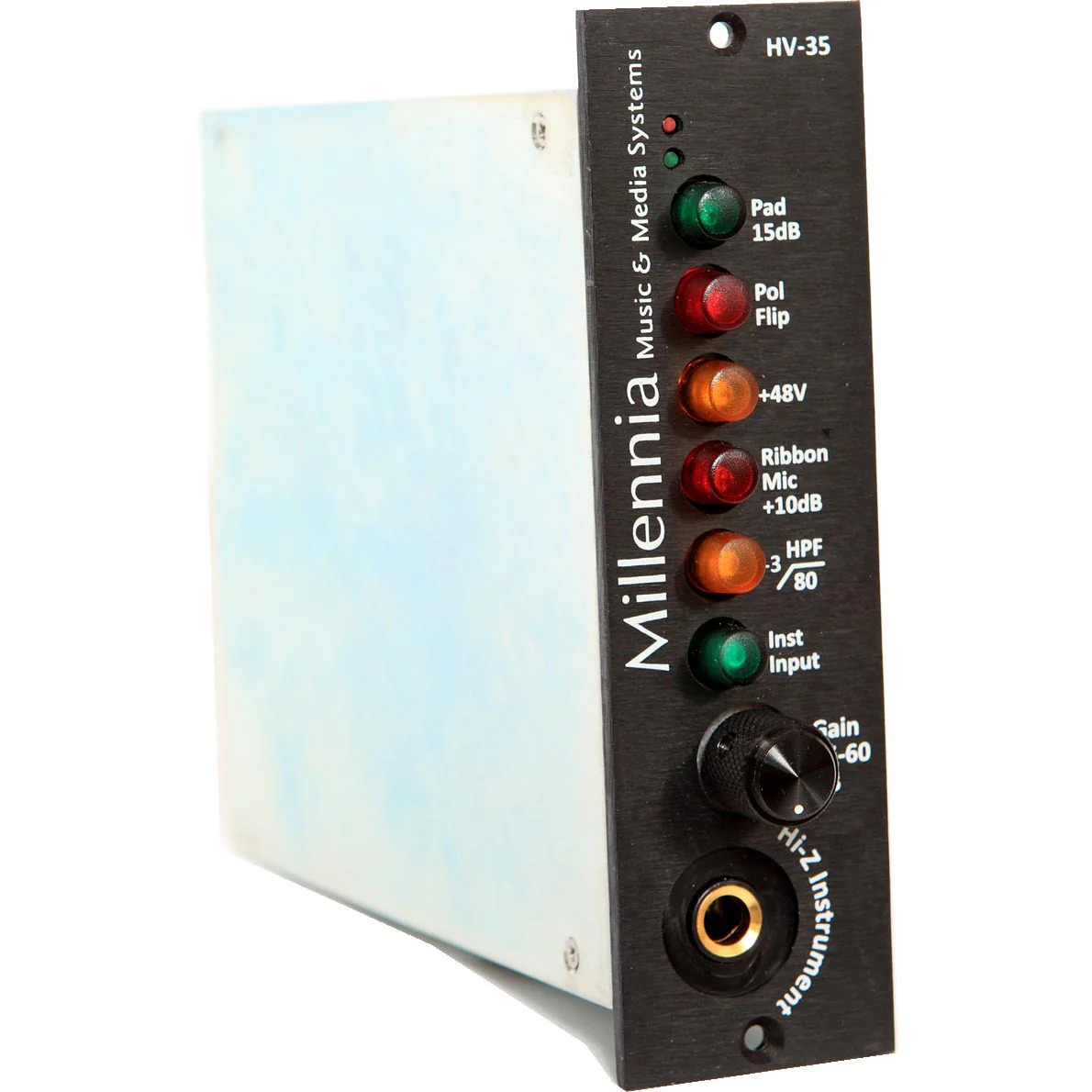

Millennia HV-35

Authentic Transparency for Unrestricted Creativity

• Continuously variable gain control
• Front panel instrument input
• DC coupled ribbon mic with 10dB gain boost setting
• 80 Hz rolloff filter
• 48V phantom power
• 15 dB Pad
• Polarity flip
• API 500 series compatible format

Specifications

• Minimum Gain: 8.5 dB
• Maximum Gain (continuously variable): 60 dB (70 dB in Ribbon Mode)
• Frequency Response (+0 / -3 dB): sub 3 Hz to beyond 300 kHz
• Noise (60 dB Gain, 10 Hz – 30 kHz, Inputs common): -133 dB EIN
• Total Harmonic Distortion + Noise (35 dB Gain, 10 Hz – 20 kHz bandwidth, +27 dBu Out): < .001%, Typ. < .0005% (< 5 ppm)
• Intermodulation Distortion (50 Hz & 7 kHz) 35 dB Gain, +27 dBu Out: < .0009%
• Phase Response (35 dB Gain, 50 Hz – 20 kHz bandwidth, +27 dBu Out): < 2 degrees deviation
• Common Mode Rejection Ratio (35 dB Gain, 10 Hz – 20 kHz bandwidth, 100 mV C.M.): > 65 dB, Typ > 85 dB
• Slew Rate (35 dB Gain, +27 dBu Out): > 25 Volts per microsecond
• Maximum Input Level (20 Hz – 40 kHz): +20 dBu (no attenuator pads required)
• Maximum Output Level (20 Hz – 40 kHz): +28 dBu
• Phantom Input Impedance (1 kHz): 6,750 ohms
• Output Impedance: 24.3 Ohms (x2)
• Phantom Powering: +48 V dc, +/- 2 V dc
• Dimensions/Shipping Weight: 1.5” W x 5.25” H x 6” D, 3 lbs.
