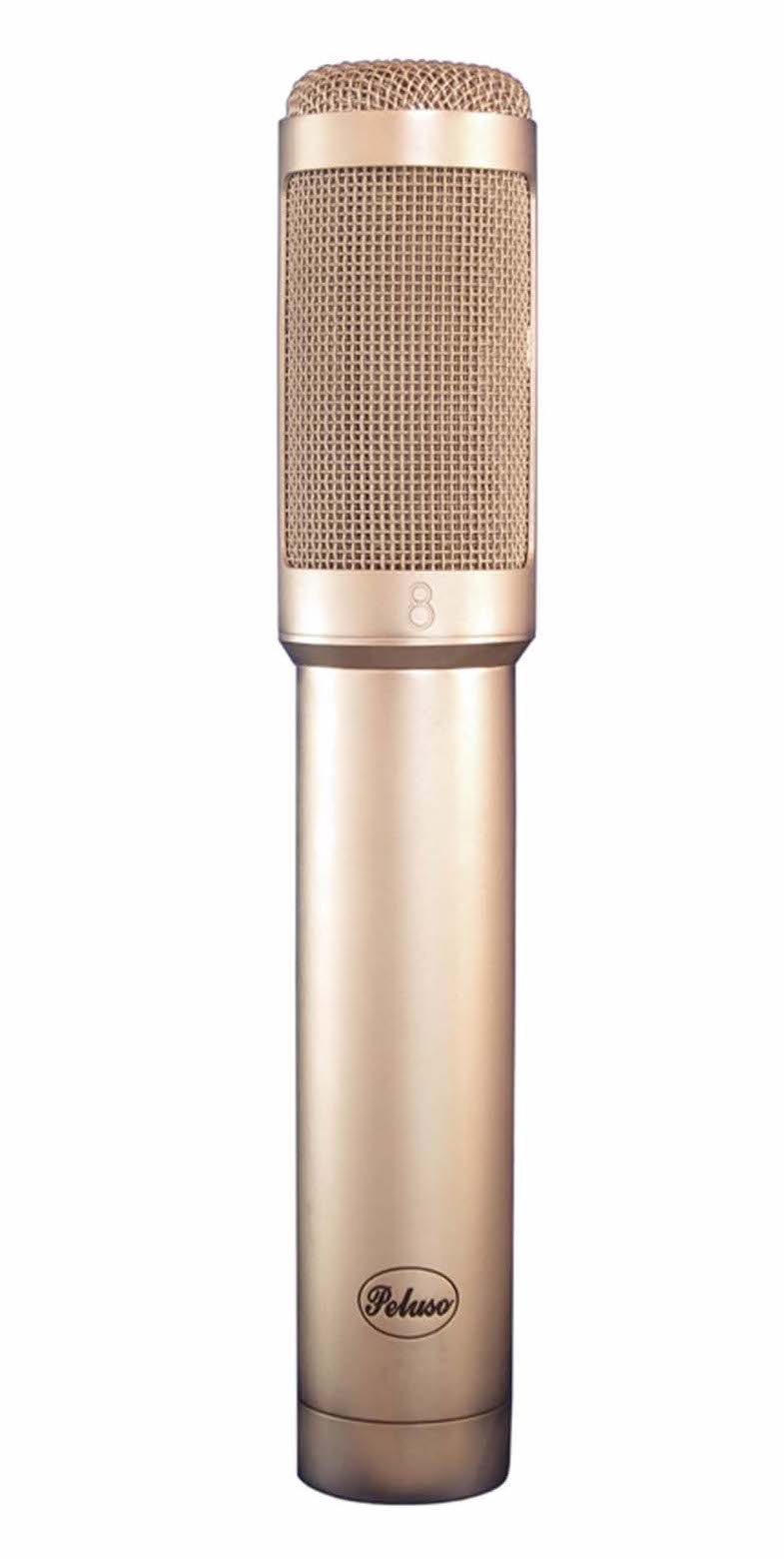

Peluso TR 14

Peluso TR 14

When designing the R 14, TR 14 and SR 14 microphones Peluso wanted to create a classic vintage-style ribbon microphone in the vein of the early RCA microphones.

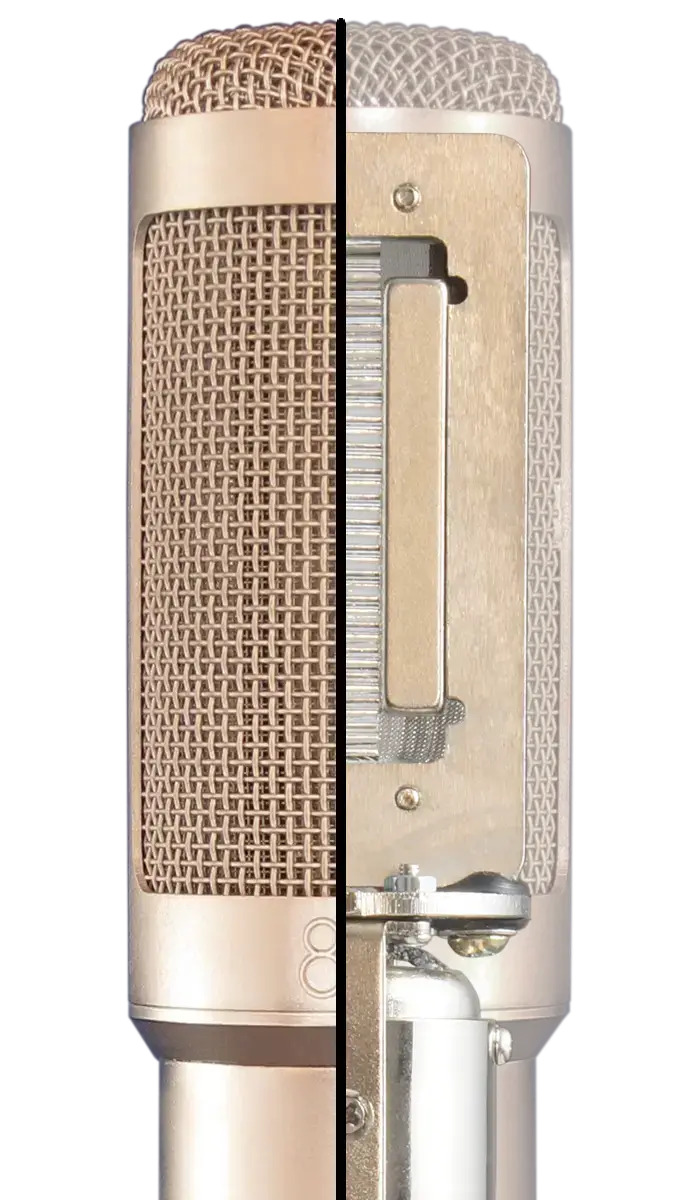

Peluso Microphone Lab used classic long ribbon geometry. Thin corrugated aluminum ribbon is tensioned between two rare earth neodymium magnets. As the ribbon moves with the ambient acoustic air pressure variation a current is induced in the ribbon itself. This current is the microphone's output signal. The ribbon is placed just forward of the magnet center. This provides a very slight low-end roll-off on the backside of the microphone, which can be very useful if proximity effect needs to be countered. To handle low-level sources and long cable runs transparently Peluso added a tube gain stage in the Peluso TR 14 Tube Ribbon Microphone. The TR 14 delivers clean balanced output through the use of a custom output transformer. Sonically the TR 14 delivers added harmonic complexity from the tube to the rich, warm, and silky smooth sound and generous low end of a ribbon microphone. It is un-hyped, natural, and takes EQ very nicely. The TR 14 ribbon microphone is the perfect complement to the condensers in your microphone collection.

• Long Geometry Ribbon
• Great for long cable runs
• Glass Tube Amplifier Stage
• Custom Wound Output Transformer

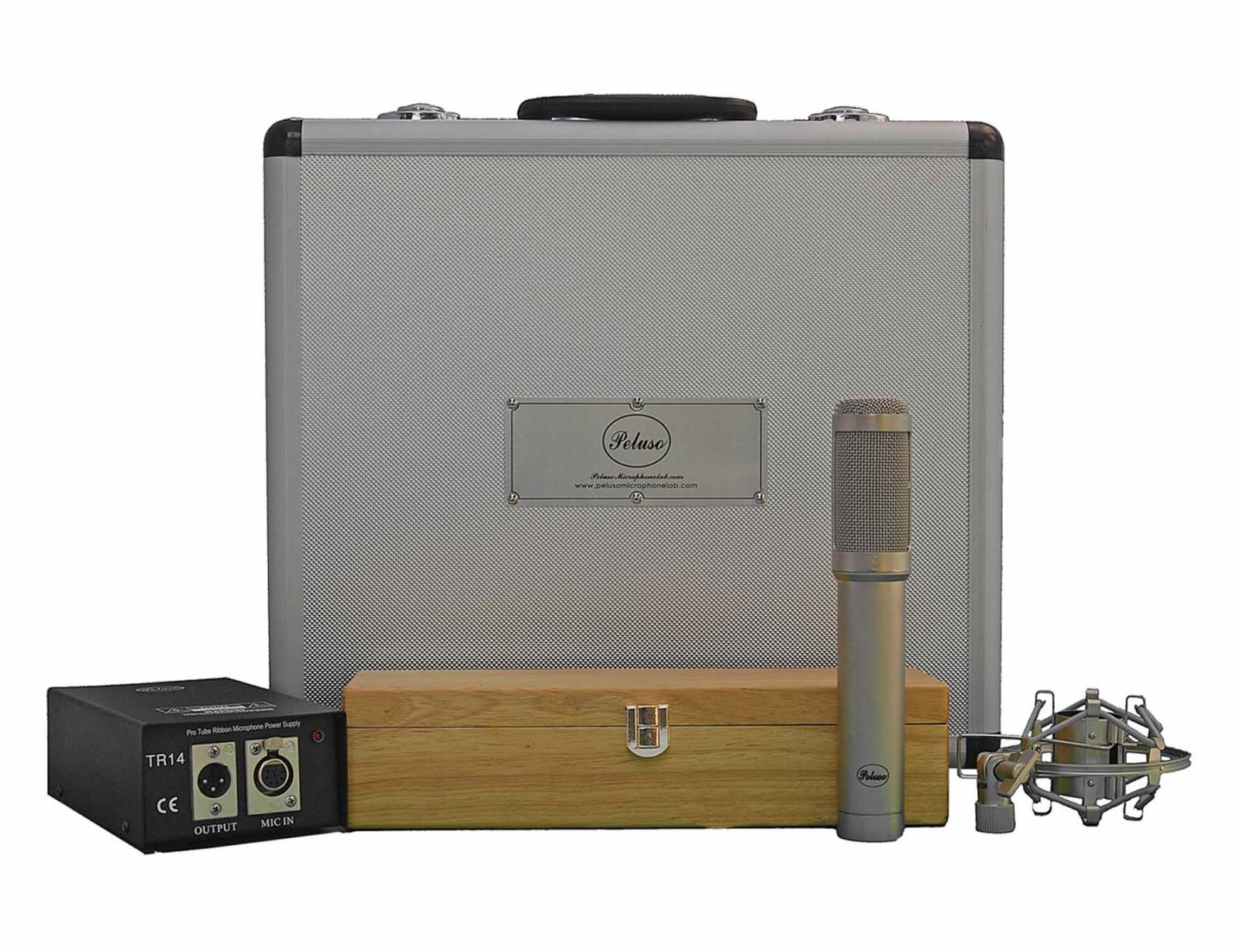

Microphone kit comes as a complete system including:

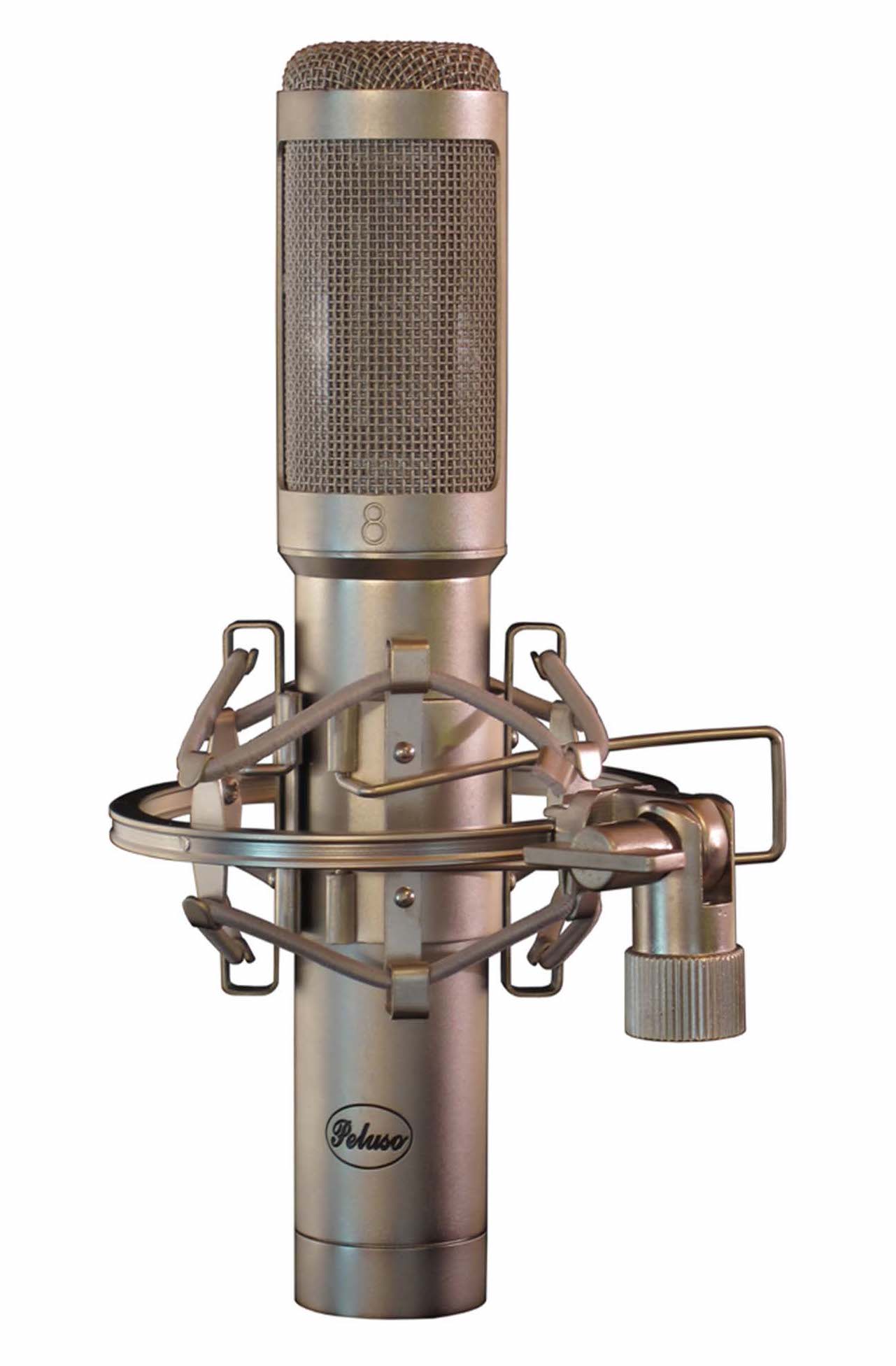

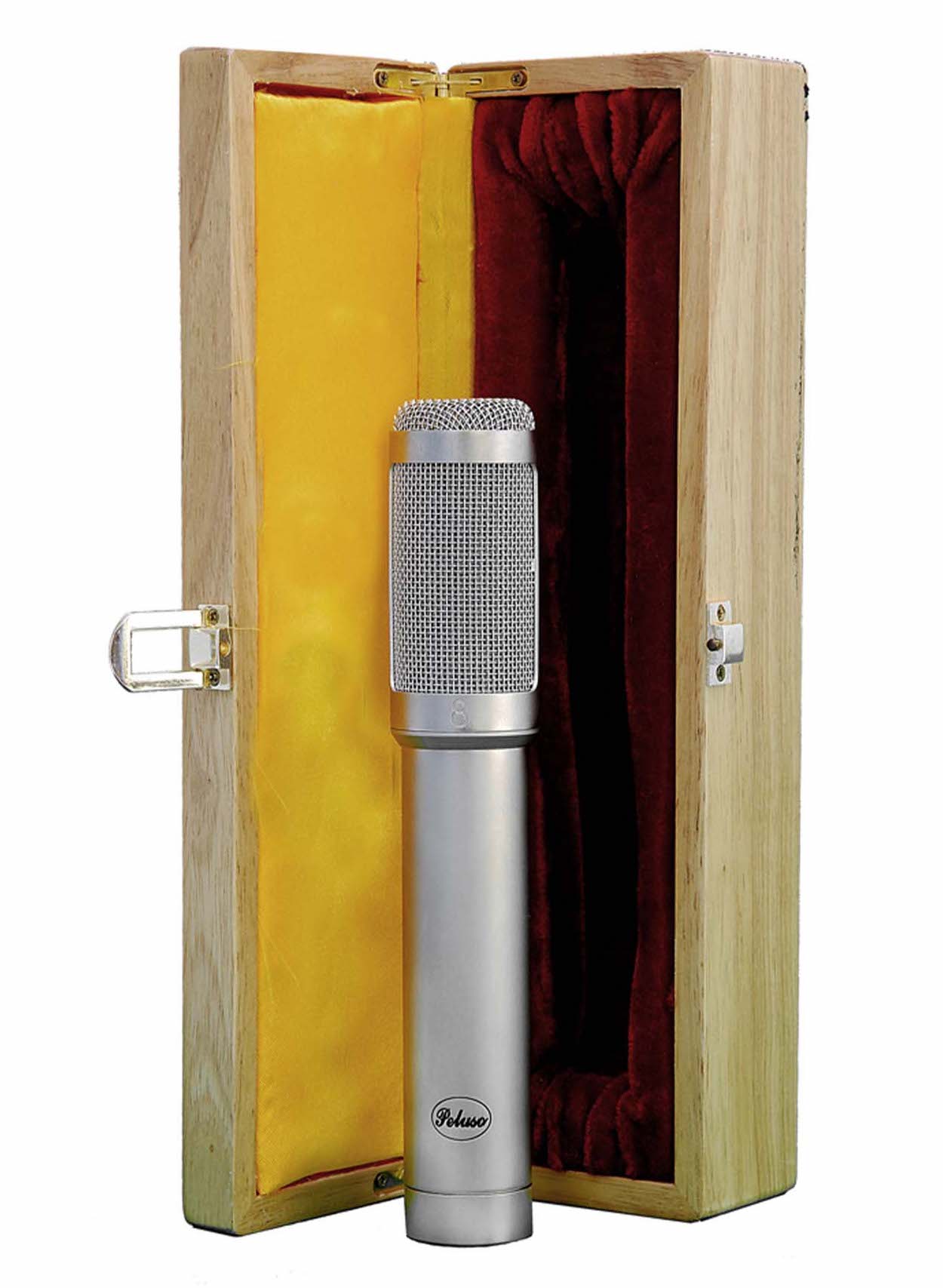

TR 14 Microphone, Wood Microphone Box, Power Supply, 7-Pin XLR Cable Assembly, Shock Mount, Locking Padded Flight Case
