16-kanaals MADI/ADAT naar analoog converter
M-16 DA
Vragen? Betere prijs gezien?
Bel 0512 - 340457 of neem contact op!
Product omschrijving

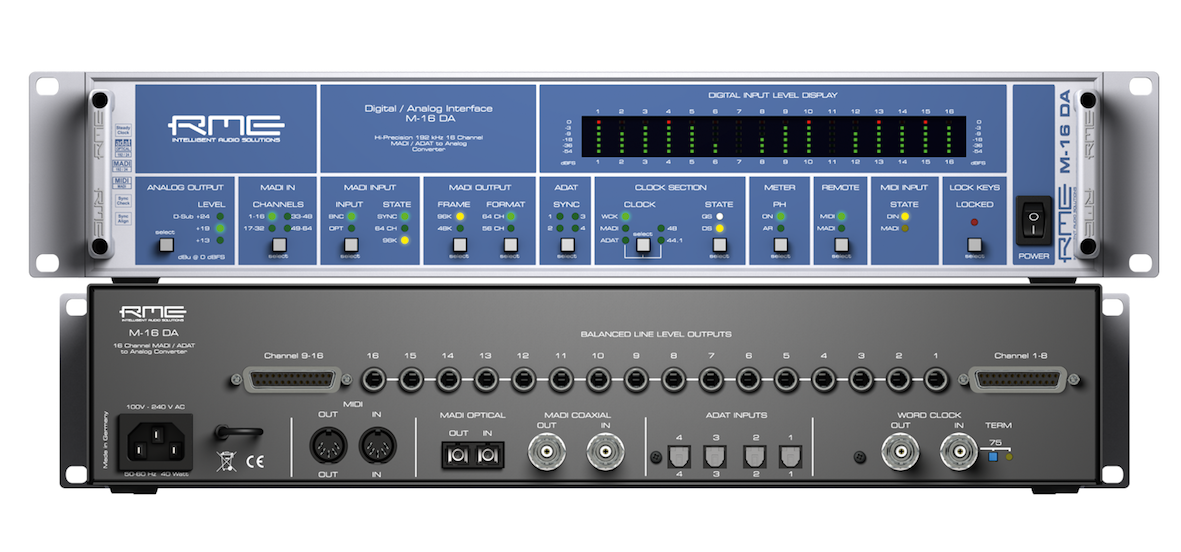

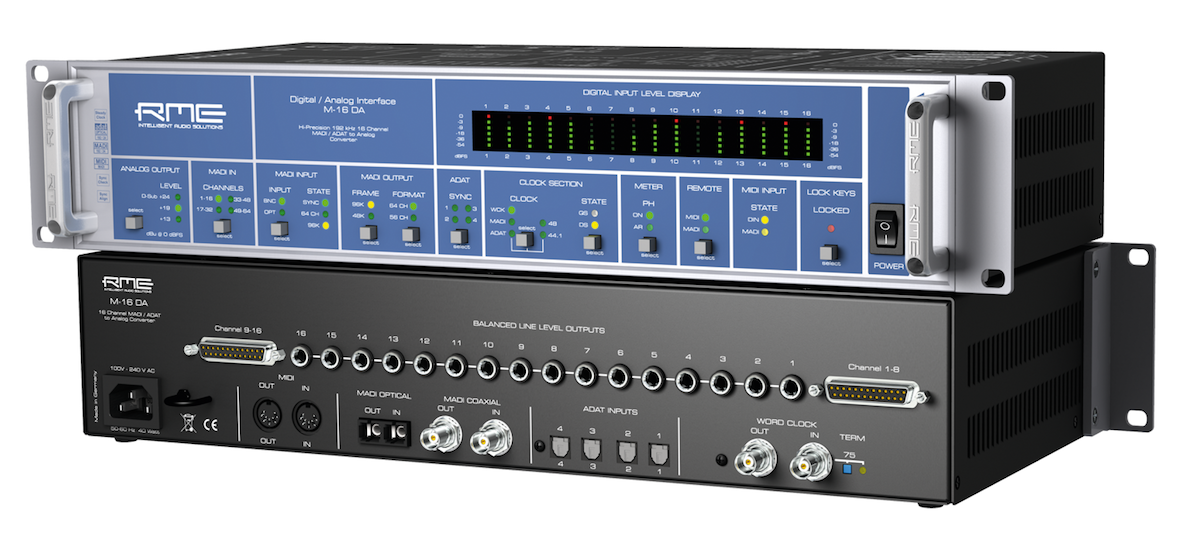

M-16 DA
16-Channel MADI/ADAT to Analog Converter
RME's M-16 DA is a 16-channel high-end DA converter, easy to operate yet having a comprehensive feature set. The unit combines excellent analog circuit design with the latest converter chips and RME's superior SteadyClock, resulting in a state-of-the-art DA conversion - not less than 16 times!
The M-series converters have been conceived and optimised for professional studio, stage, and broadcast applications. Combinations of the M-16 DA and M-32 DA converters allow for setups with 16, 32, 48, or 64 channels, according to your individual application or budget. The unit's unique set of features includes three hardware reference levels up to +24 dBu, MADI I/O and ADAT input up to 192 kHz, 6.3mm TRS and D-sub outputs, remote control via MIDI, and operation across a wide range of mains voltages, all packed into a 2U enclosure.
The M-16 DA extends RME's MADI line with multichannel conversion in reference quality - at an unbeatable price/performance ratio!
Connectivity and Features
- 16 x Line Input
- 1 x MADI optical I/O
- 4 x ADAT I/O
- 1 x Word Clock I/O
- 1 x MIDI I/O
General Specifications
- Dimensions including rack ears (WxHxD): 483 x 88 x 242 mm (19" x 3.46" x 9.5")
- Dimensions without rack ears/handles (WxHxD): 436 x 88 x 235 mm (17.2" x 3.46" x 9.3")
- Temperature range: +5° up to +50° Celsius (41° F up to 122°F)
- Relative humidity: < 75%, non condensing
- Power supply: Internal switching PSU, 100 - 240 V AC, 40 Watt
- Typical power consumption: 15 Watt
- Max. power consumption: < 20 Watt
- Weight: 2.5 kg ( 5.5 lbs)
Highlights
- 16-channel* DA converter, double balanced output, 118 dBA
- 19" enclosure with only 2 units height
- 1 x MADI I/O, 32 channels @ 96 kHz, 16 channels @ 192 kHz
- 4 x ADAT In, 16 channels @ 96 kHz, 8 channels @ 192 kHz
- Automatic Delay Compensation: no user operation necessary when stacking units
- 16* LED level meters with 6 LEDs each
- SteadyClock(TM) - pristine sound quality independently from the quality of the external clock signal
- SyncCheck(TM) - unique technology to check clock synchronization
- Noise suppression on power-on and power-off at the analog outputs
- All settings are stored permanently
- Fully remote controllable via MIDI and MIDI over MADI
*The M-16 DA is fully identical to the M-32 DA, with these exceptions:
- only one 16-channel DA board fitted
- no fan
- lower power consumption, 40 Watts
