Rupert Neve Designs RNDI M

Rupert Neve Designs RNDI M

RNDI DI box in robuust en compact pedalboard-vriendelijk formaat

RNDI-M

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

Rupert Neve Designs RNDI-M

Compact design. Giant tone.

The RNDI-M brings the stunning tone & clarity of its award-winning counterparts to an even more compact and pedalboard-friendly format, with the exact same custom Rupert Neve Designs transformers and discrete FET input stage as the best-selling RNDI, RNDI-S and RNDI-8.

By streamlining its feature set and housing the electronics in a rugged & more compact chassis, the RNDI-M fits neatly into any space and will allow even more musicians and engineers to tap into the uncompromised sonic power & vibrancy of a Rupert Neve Designs DI.

The RNDI-M provides instrument direct injection for electric guitar & basses, synthesizers, keyboards, piezo pickups, or any other instrument-level source.

The discrete, Class-A circuit topology is built around Mr. Rupert Neve’s custom transformers, resulting in outstanding sonic performance and strikingly natural sound from below 5Hz all the way up to well beyond 90kHz. It can handle input levels up to +20.5dBu, the low impedance, transformer-coupled output stage drives long lines with minimal loss, and the rugged steel chassis is designed for a lifetime of stage and studio use.

FEATURES

Groundbreaking Direct Tone
When class-A, discrete amplifiers meet Rupert’s custom transformers, amazing things happen. The RNDI-M contains the unique components and design knowledge that makes it worthy of the Rupert Neve name.

Huge Headroom
Maximum input level is a massive +20.5dBu, making the RNDI-M capable of handling not only instruments but also keyboards, drum machines and even pre-recorded material.

Rugged Solid Steel Frame
The rugged steel chassis is built to withstand the severe stresses of life on the road.

Use a Variety of Sources
The RNDI-M has immensely consistent performance across a wide variety of sources due to its 2.2M Ohm discrete FET input stage and high headroom. The RNDI-M can be used with confidence on guitars, synths, basses, acoustic instruments, keyboards & drum machines.

Drive Longer Lines
The low impedance transformer coupled output – below 40 ohms – is capable of driving long lines while maintaining exceptional high frequency performance.

1/4″ THRU Output
The THRU output can be used to maintain optimal input level to an amplifier with no signal degradation.

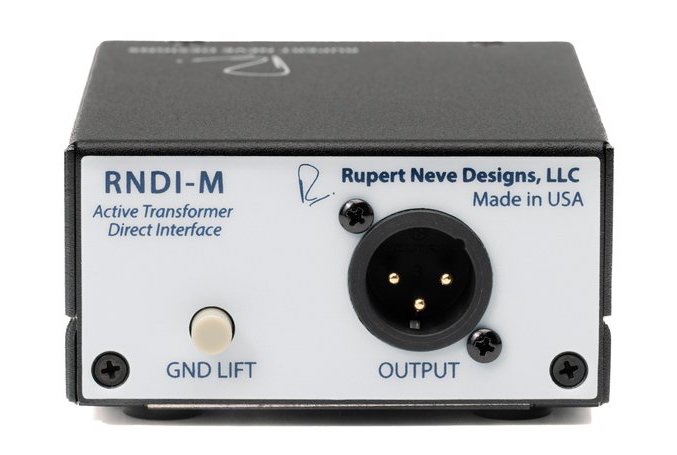

Ground Lift
A Ground Lift switch is provided on the rear panel to isolate Pin 1 on the XLR balanced output from the circuit ground to help fix any potential grounding issues.

Phantom Powered
The RNDI-M is powered by standard 48V phantom power. Power is indicated by a blue LED on the front panel.

SPECIFICATIONS

NOISE (22 Hz - 22 kHz, Un-weighted)
Better than -110 dBV

INPUT IMPEDANCE
Instrument Input: 2.2 Megohm

OUTPUT IMPEDANCE
Less than 40 Ohms

MAXIMUM INPUT LEVEL
Instrument Input: +20.5 (8.2 Volts RMS)

MAXIMUM OUTPUT LEVEL
+11.5 dBu Typical

FREQUENCY RESPONSE
+/- 0.25 dB from 28 Hz – 60 kHz
+/- 1 dB from 14 Hz – 90 kHz
-3 dBu below 5 Hz

TOTAL HARMONIC DISTORTION + NOISE
@ 1 kHz, +20 dBu input level: 0.25% Typical (2nd and 3rd Harmonic)
@ 1 kHz, -20 dBu input level: 0.015% Typical (2nd and 3rd Harmonic)
@ 20 Hz, -20 dBu input level: 0.75% Typical (2nd and 3rd Harmonic)

POWER REQUIREMENTS
4.5mA @ +48VDC

WEIGHTS & DIMENSIONS
Product Dimensions (W x D x H): 3.25” (8.25 cm) x 4.75” (12.1 cm) x 1.75” (4.45 cm)
Shipping Dimensions (L x W x H): 4.125” (10.5 cm) x 5.125” (13 cm) x 2” (5.1 cm)
Shipping Weight: 1.25 lbs. (0.57 kg)
