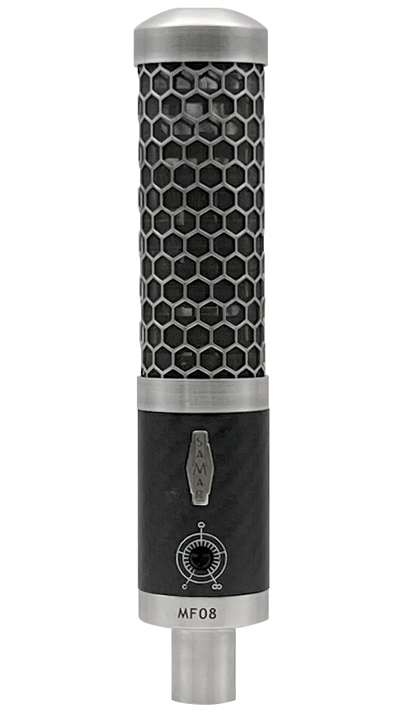

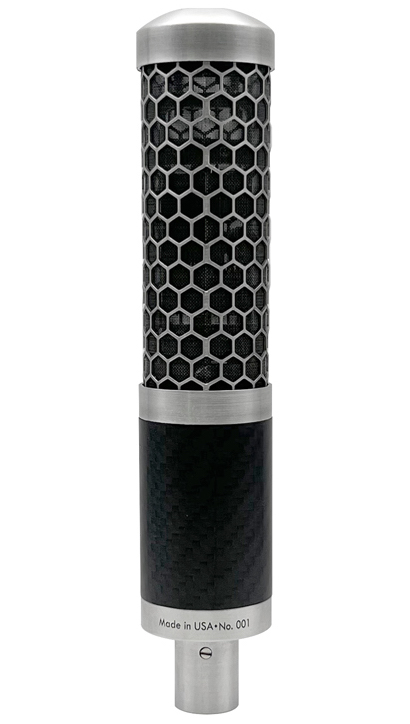

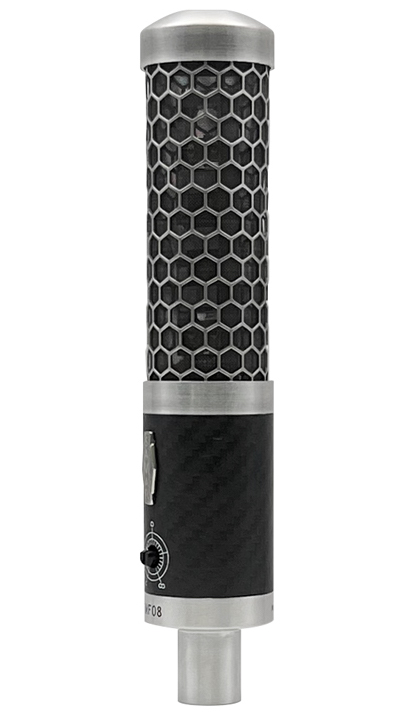

Samar Audio Design MF08

Baanbrekende hybride microfoon die een figure 8 lintelement combineert met een omnidirectionele condensatorcapsule

MF08

Prijs op
aanvraag

Voeg dit product toe aan uw offerte

In offerte

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

Samar Audio Design MF08

Estimated shipping from factory beginning of January 2026.

Omni8 Series – The World's First Hybrid Microphone to Combine a Figure 8 Ribbon Element with a Small Diaphragm True Pressure Omnidirectional Condenser Capsule

Redefining microphone design, Samar Audio is pleased to announce the MF08—the world's first hybrid microphone to combine a figure 8 ribbon element with a small diaphragm true pressure omnidirectional condenser capsule. This innovative, transformer-coupled design provides continuously variable polar patterns and includes a center detented cardioid setting for easy and precise recall. By integrating the finest aspects of both ribbon and pressure omni condenser technologies, their native patterns and natural sonics the MF08 also serves as a versatile tone-shaping tool, producing a sound that balances the precision of a small-diaphragm with the huge sound of a large-diaphragm microphone. It is a superior choice for any application where the highest possible sound quality is paramount.

The MF08 delivers exceptional sonic performance for a wide variety of sources, from classical orchestra to drum overheads. With its outstanding linearity, wide bandwidth, smoothness, and low phase and linear distortion, it is the superior choice for any application where the highest possible sound quality is essential.

Key Features

  • World first, one of the kind innovative design
  • Unprecedented ruler flat frequency response
  • Exceptional phase integrity
  • Proprietary adjustable tuning frequency ribbon element coupled with true pressure omni condenser capsule
  • Low noise, low distortion, made in house amorphous core intermediate toroidal transformer
  • Low noise, low distortion, made in house high Ni output bobbin trans-former
  • Class A push pull electronic circuit
  • Multiple trimming devices for level and sonic consistency
  • Handcrafted in the USA
  • 5-year parts, 2-year ribbon replacement warranty (limited to one service)

Specifications

  • Pickup Pattern: Continuously Variable Multi Pattern with Center Detent for Cardioid Setting
  • Frequency Response: 10Hz—30kHz
  • Max SPL: 140dB
  • Ribbon Dimensions: 1.5”x0.250”x1.5 micron
  • Condenser Capsule Diameter: 10 mm
  • Phantom Power: 48V
  • Output Impedance: 200 Ohm
  • Microphone Dimensions: 7.750”x1.500”
  • Weight: 235g (8.3oz)
