Spectra 1964 C 610 Complimiter | Black Friday Special

Spectra 1964 C 610 Complimiter | Black Friday Special

Classic compressor/limiter in heruitgave.

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

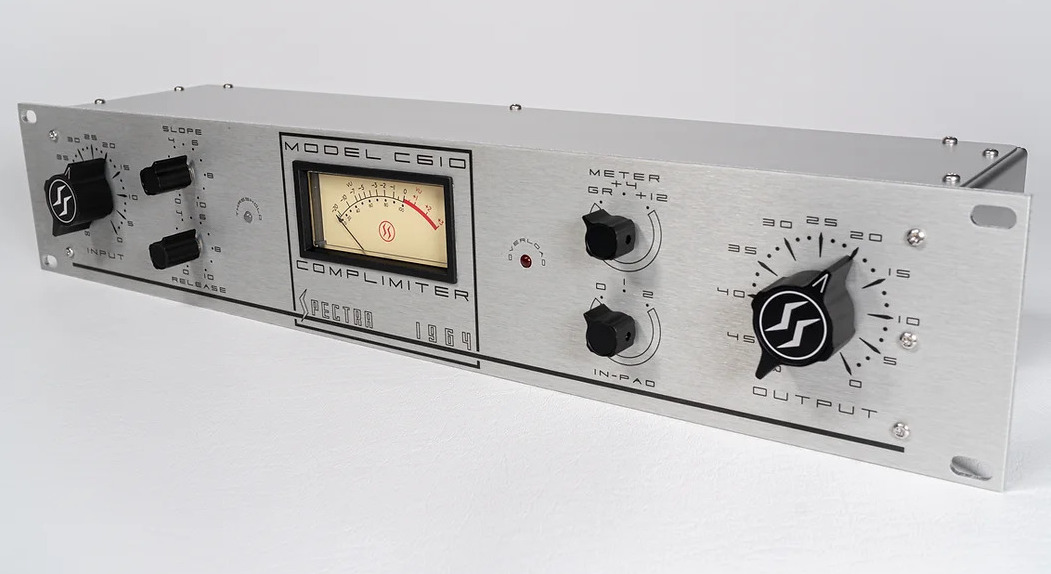

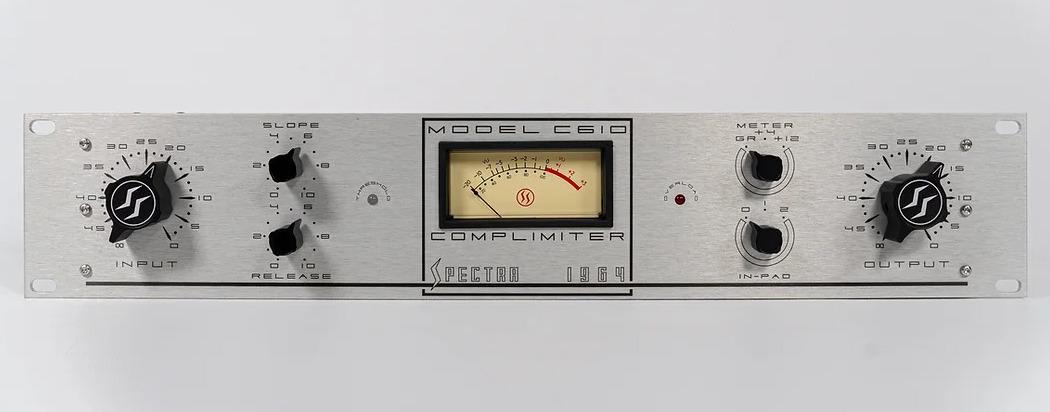

Spectra 1964 Model C610 Complimiter

50 Year Anniversary update of an American legend

A revolutionary concept in dynamics processing, offering separate, ultra-fast, peak limiting, and intelligent compression response.

Design:

50 years ago WIlliam G. Dilley introduced the world to his revolutionary new dynamics processor, the Model 610 Complimiter. A truly unique device, the Model 610 was not only the fastest, cleanest and quietest of it's type, but was also capable of providing completely separate peak-limiting and compression functions. For decades the Model 610 could be found safeguarding levels to tape, strapped across the mix bus, and even before record lathes in some of the most well-known recording studios in the world.

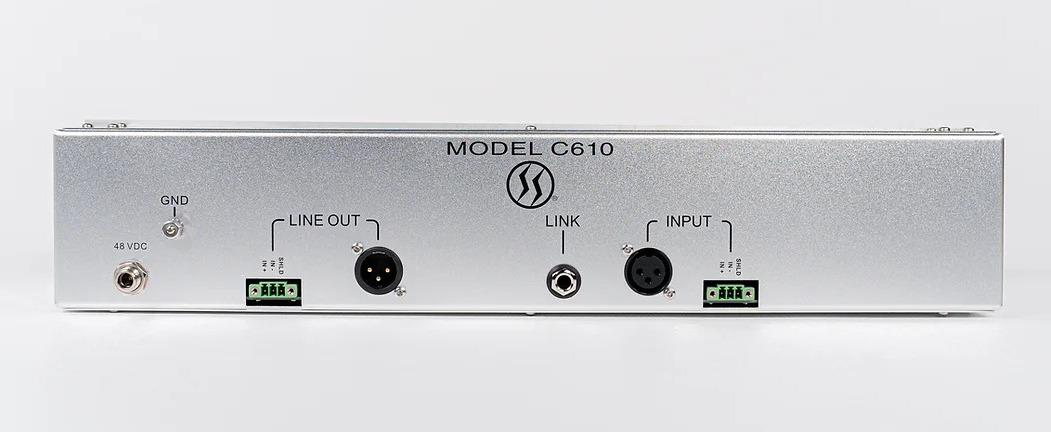

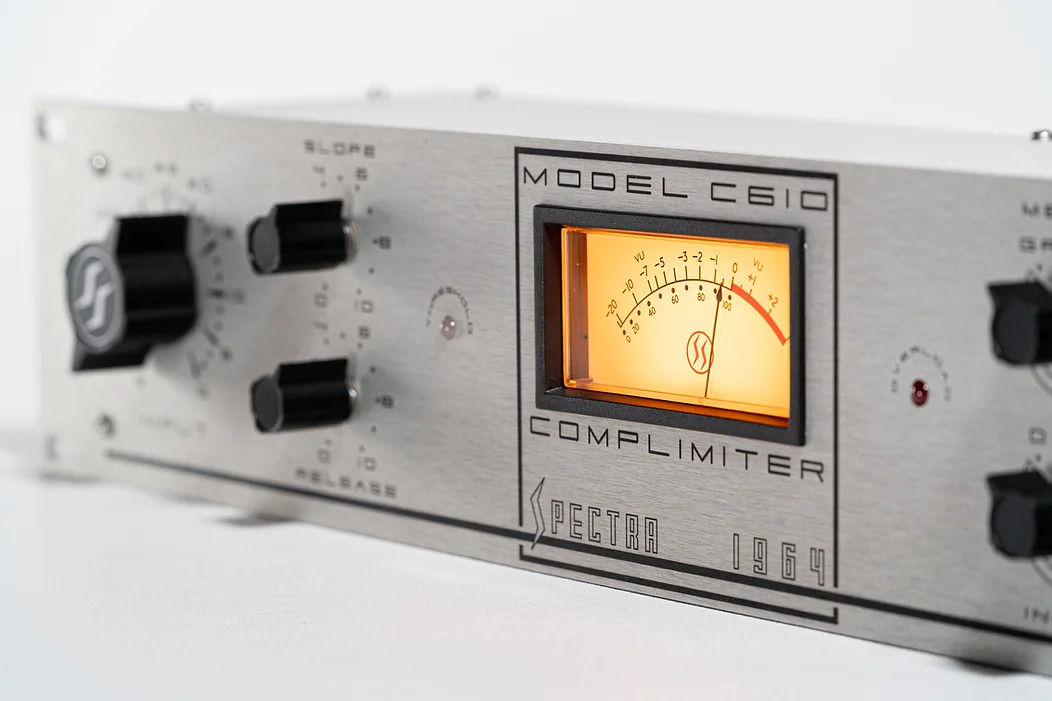

Today Spectra introduces the Spectra 1964 Model C610 Complimiter. True to the original, the C610 still utilized the unchanged and unmatched 601 Compressor/Limiter circuit and a 101 amplifier for make-up gain. Spectra's improvements include XLR and Phoenix I/O, highest quality input/output transformers, selectable input padding, buffered true VU metering, and multi-stage overload indication.

C610 As a Microphone or Instrument Preamplifier

The peak limiting function of the C610 will allow for improved dynamic range, extended harmonics content, reduced transient distortion, and lower overall system noise. In the microphone arena, it is not unusual to encounter transient peaks above 20dB with drums, guitars, and other instruments. The C610 eliminates the negative effects of peak overload, and the resulting distortion, or loss of gain, (reduced levels to avoid peak overload). The result of using the C610 is readily apparent. Drums sound like drums during playback, bass guitars reproduce all frequencies without overload or loss of harmonics, cymbals bells, and tambourines, no longer smear or blend together.

C610 Mix Buss and DAW Applications

Peak limiting in a conventional console mix buss will allow for significant channel level increases, without overload, and minimize the loss of harmonic content. In DAW applications, increased levels may used as the peak limiter function of the C610 will decrease converter overload due to audio program transients.

- Separate or combined limiter/compressor functions
- dBu or dBFS input pad
- Microphone or line input capable
- Precision 32 position detent input/output control
- 56dB of gain, limiter mode
- Extremely low noise and distortion
- Precision input/output transformers
- Modular design allows for ease of service
- Made in the USA

Specifications:

Input Impedance: 600 Ohms
Output Impedance: 2.5k Ohms
Input Pad: Position 1: No Pad, Position 2: +4 dBu nominal input, Position 3: +22 dBu nominal input
Maximum Gain: 56dB
Threshold attack level: -40 dBm
Maximum Output: +18dBu
THD: Less than .01% @ 30Hz-20KHz, at +16 dBm, up to 30dB compression, dependent on release setting
Signal/Noise: Better than 80dB below +4dBm output, with -40 dBm input, 20Hz to 20kHz
Frequency Response: +/- 0.1dB 20Hz-40KHz
Compression/Limiting Ratio: Continuously variable from 1.1:1 to 100:1
Attack time: 100 nanoseconds to 1.2 milliseconds, automatically variable.
Release Time: Continuously variable from 50 milliseconds to more than 10 seconds
