TK Audio Transceiver 2

Actieve 4-kanaals DI-box met tot +20 dB versterking en blendfunctie

Transceiver 2

Prijs op
aanvraag

Voeg dit product toe aan uw offerte

In offerte
Leverings- en Retourbeleid

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

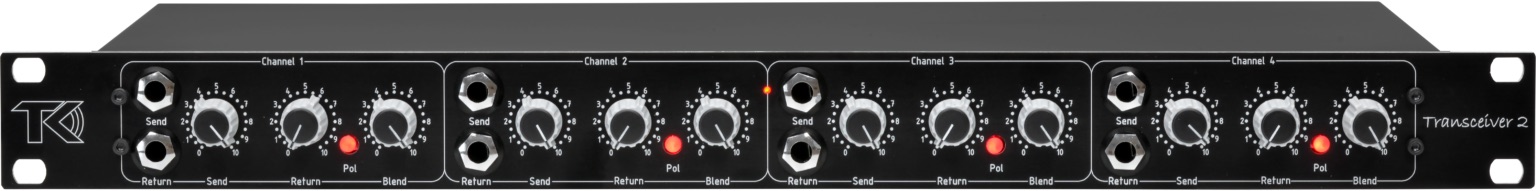

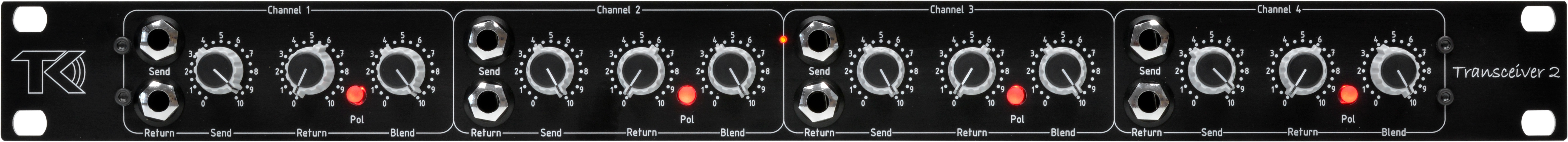

TK Audio Transceiver 2

A universal insert station

  • Insert your unbalanced gear such as guitar pedals and old echo fx into your DAW or console via the Transceiver 2
  • Active DI-box with up to +20dB of gain. Plug your favorite instrument into your collection of vintage gear via the Transceiver 2
  • A re-amping tool
  • An universal insert station on stage. Connect balanced gear on stage between your instrument and amp
  • Blend function for the inserts
  • All controls stepped for easy recall

The Transceiver 2 is a universal insert station both on stage and in studio.

The Transceiver is a four channel insert station. The main function is to convert balanced signals to unbalanced and back again without losing any signal quality. Each channel has a send level, a return gain control, a return polarity switch and a blend control. With the new added blend function you can choose how much of the inserted effect you want to blend in. The Transceiver 2 is a transformerless balanced design for the best possible signal handling, a flat frequency response and low harmonic distortion + noise. The balanced output has a high driving capability to drive input transformers, also the unbalanced send has a high driving capability.

Download the manual for some connection ideas

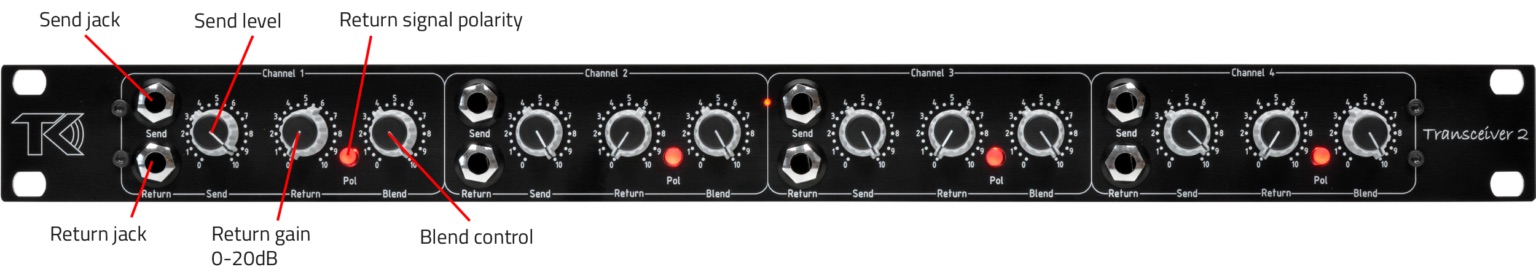

Features

Send: TRS jack
Send level: 0 to full (in 41 steps)
Return: TRS jack
Return gain: 0 to 20dB (in 41 steps)
Polarity: flips the polarity of the return signal
Blend control: from dry to wet (in 41 steps)
Regulated, internal power supply with a toroidal transformer
Selectable between 115 and 230V
Power consumption: 12VA

Transceiver version history
Transceiver. Release December 2012
Transceiver 2. Released October 2022

Specifications

Max balanced input: +27dBu
Max unbalanced send level: +21dBu
Max return input level: +21dB
Return gain: 0-20dB
Return input impedance: 1Mohm
Max balanced output: +27dBu

Specifications and components may be changed or updated without further notice.
