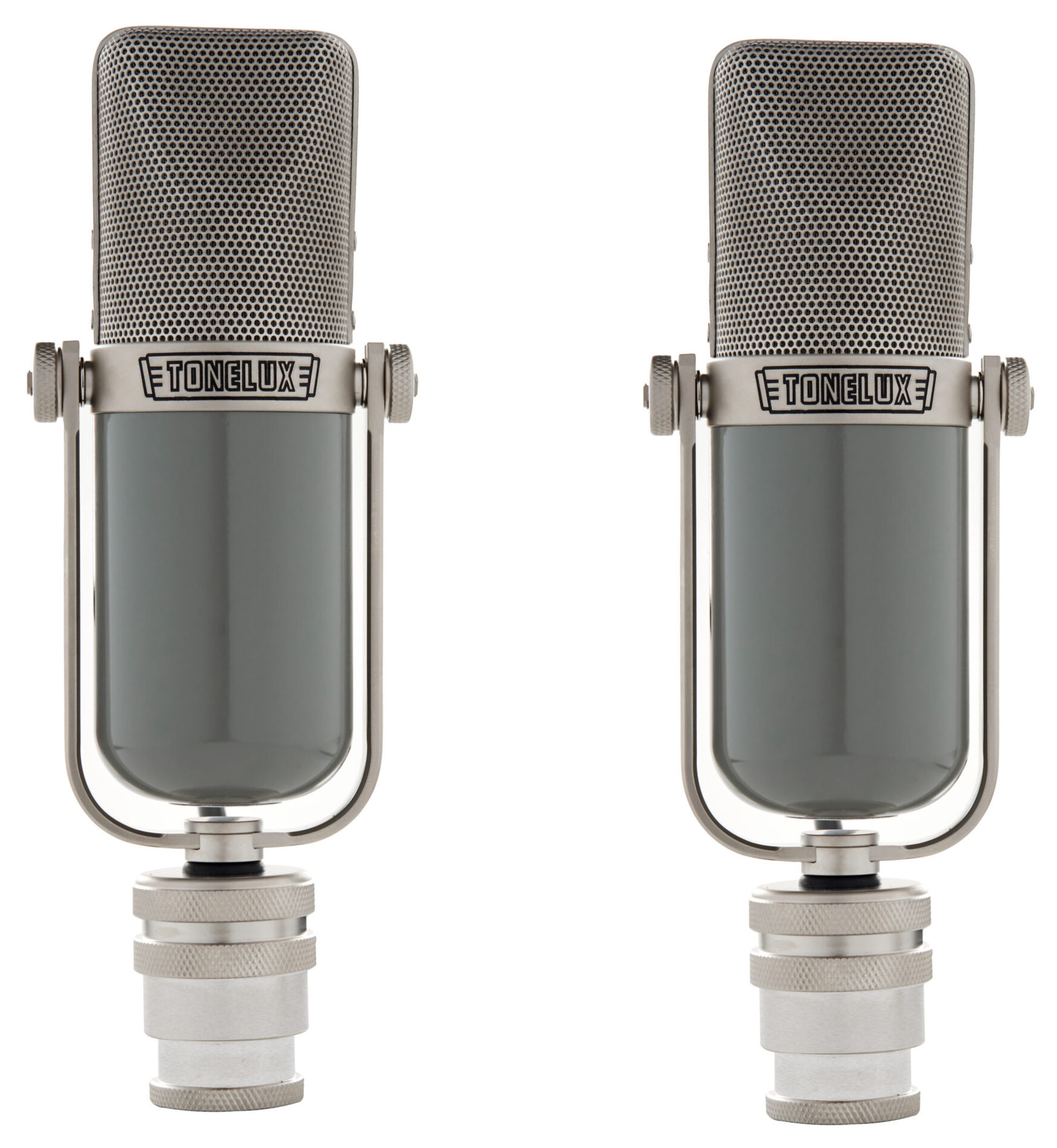

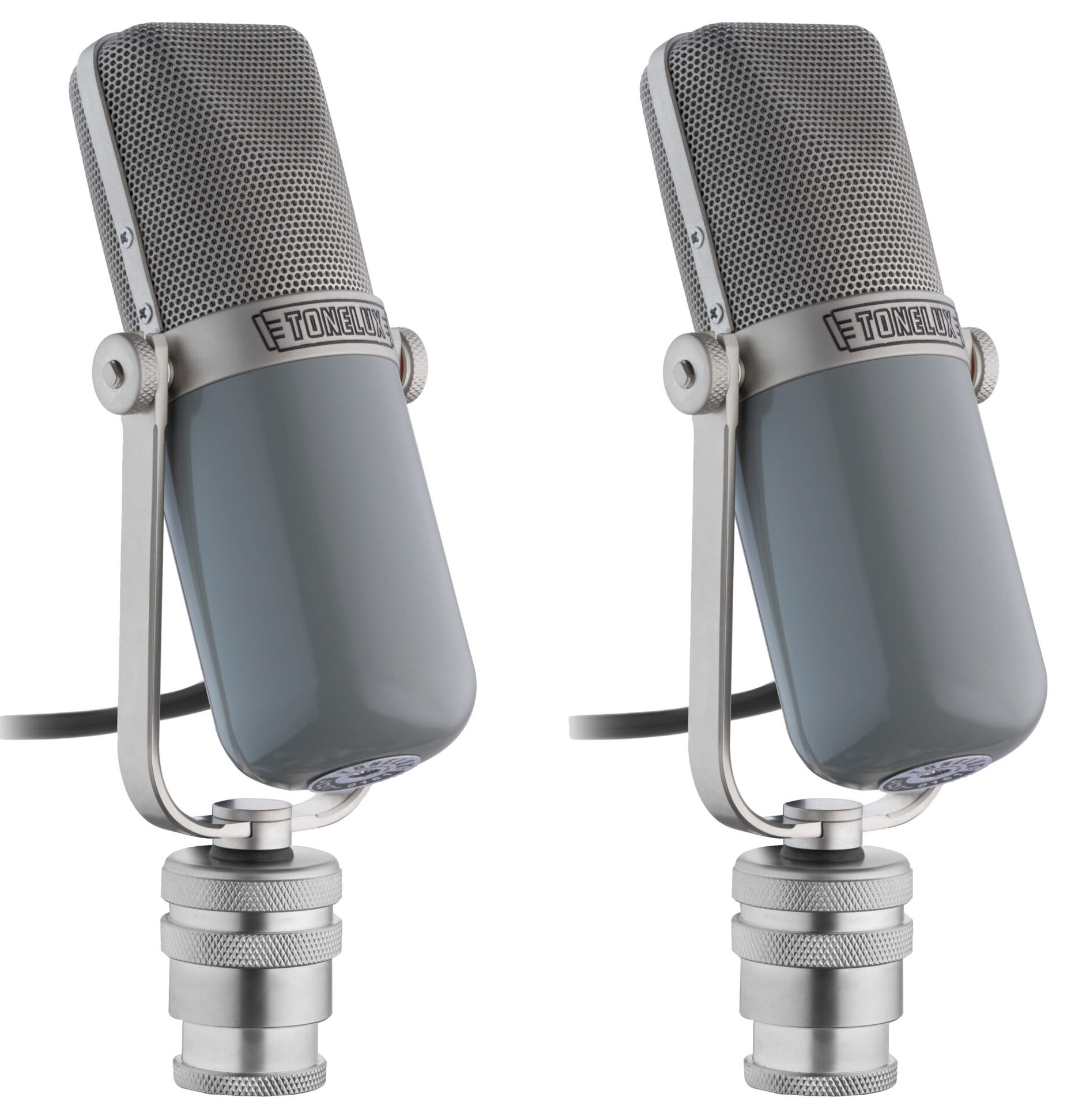

Tonelux JC37 Stereo Microphones w/ PSU

Retaining the base elements of the original design – a vacuum tube buffered 37mm single diaphragm transducer with transformer output, the JC37 foregoes selectors for pattern, frequency response, output impedance and level of the original in favor of a cleaner signal path.

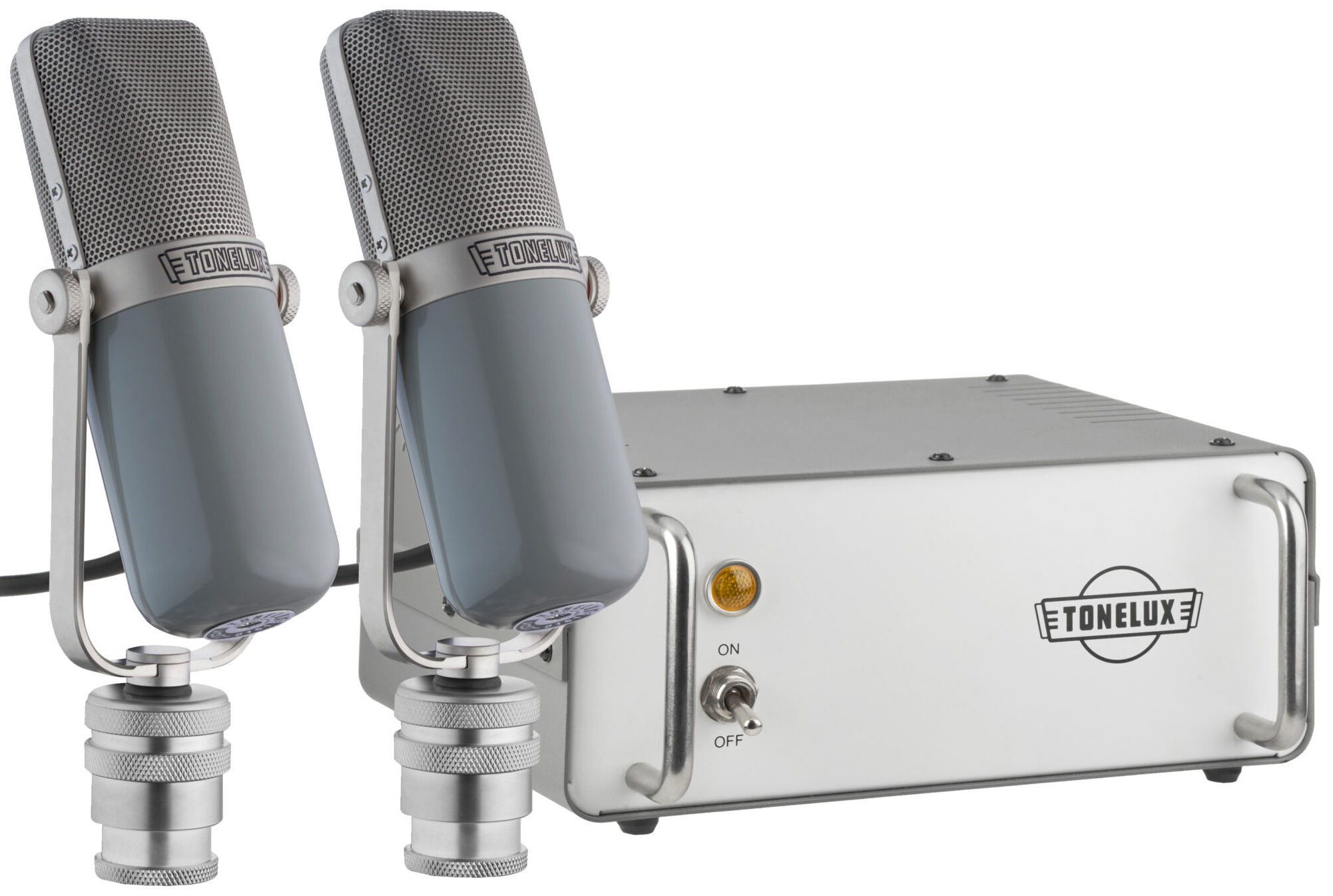

As with the mic stand mount, a three-meter cable is integrated into the body of the mic and connects to a Tonelux Universal Microphone Power Supply that is capable of powering two microphones as a stereo setup. Consideration to this is reflected in the carrying case, which holds two microphones along with the PSU.

In order to provide today’s recording engineer with the sonic attributes of the original design, extraordinary care was taken to determine each contributing element in the signal path, as well as physical construction such as the head grill, etc. Listening tests throughout have been conducted at the legendary Sunset Sound Studios with access to their collection of C37a mics.

Specifications:

Type: Side address vacuum tube condenser microphone

Pickup pattern: Cardioid

Frequency response: 30Hz – 20kHz

Output sensitivity: 2mV/Pa

Signal to noise: 68dB

Output impedance: 200 ohm

Max SPL: 140dB

Tube Type: JAN-GE5654W
