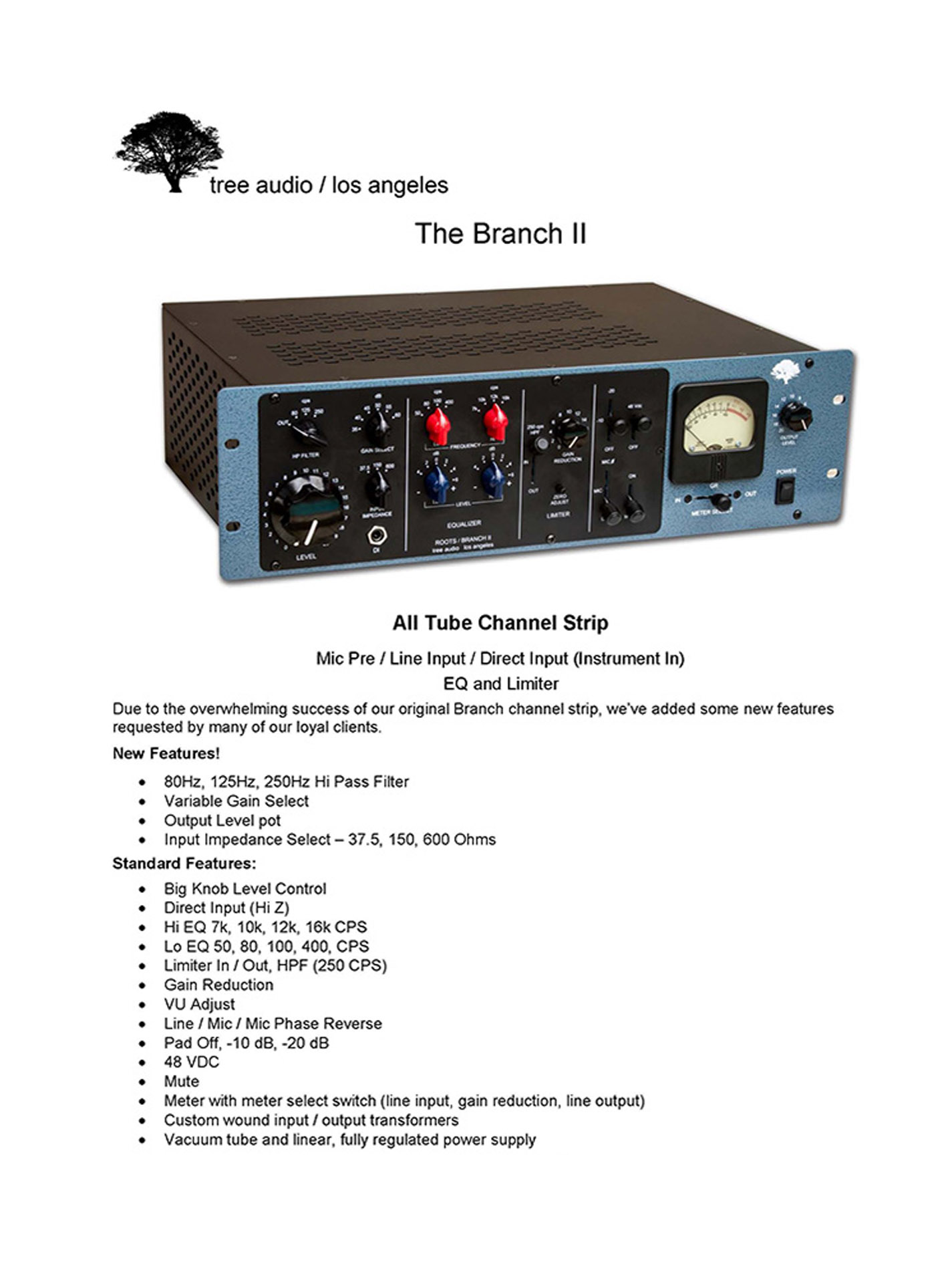

All Tube Channel Strip

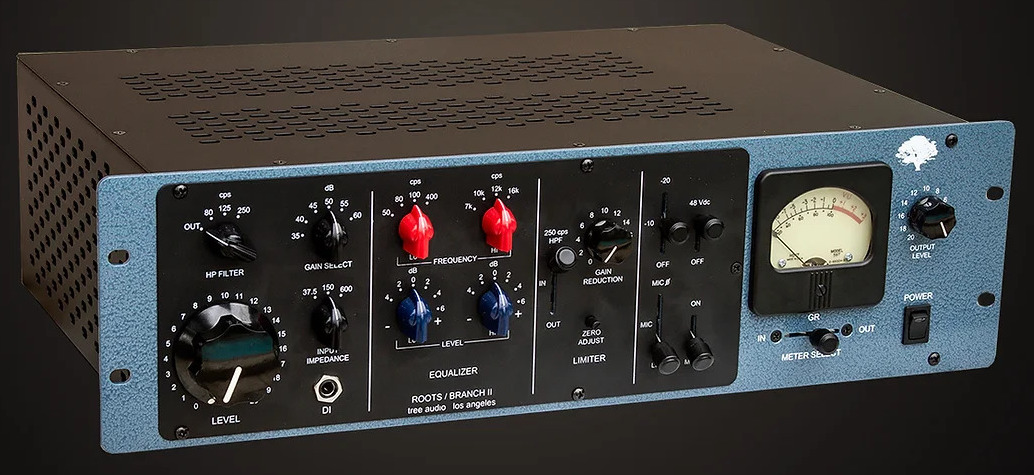

The Tree Audio The Branch II is a 3U, all tube channel strip with a mic preamp, line input, direct input (instrument in) EQ and limiter. The Branch II is the same channel strip that’s in the highly popular and uncompromising The Roots Gen II mixing console, same warm sound.

The Branch II mic pre section includes microphone and line (Direct) input with a variable gain select and a large level knob for gain offering precise setting of the gain input stage. The preamp stage also boasts a four position HP filter switch offering a choice of three frequencies (80Hz, 125Hz, 250Hz). A three position Input Impedance is also provided. High-quality toggle switches for +48V Phantom Power and Pad (-10dB and -20dB).

Following the mic preamp is a two-band EQ allowing the user to shape the low and high frequencies of the incoming sound delivering up to +/-6dB of gain. LF centre frequencies include 50Hz, 80Hz, 100Hz and 400Hz. The four position High Frequency control include 7kHz, 10kHz, 12kHz and 16kHz. These frequencies have been chosen to give presence to your source without adding harshness.

The final stage of this vacuum channel strip sees the limiter which uses the same circuitry design of the highly popular Inward Connection TSL-4. The limiter is on The Branch II easily set with the Gain Reduction knob. A 250Hz High-pass filter is included in the side-chain to avoid the limiter to be triggered unwittingly by low-end frequencies. Simply use the three-way toggle switch to bypass, activate the limiter or engage the limiter with side-chain.

Designed to the highest standard, the The Branch II boasts custom wound input and output transformers as well as a vacuum tube power supply and delivers uncompromising sound quality.
