Trident Audio Developments Trident 88 Console

Trident Audio Developments Trident 88 Console

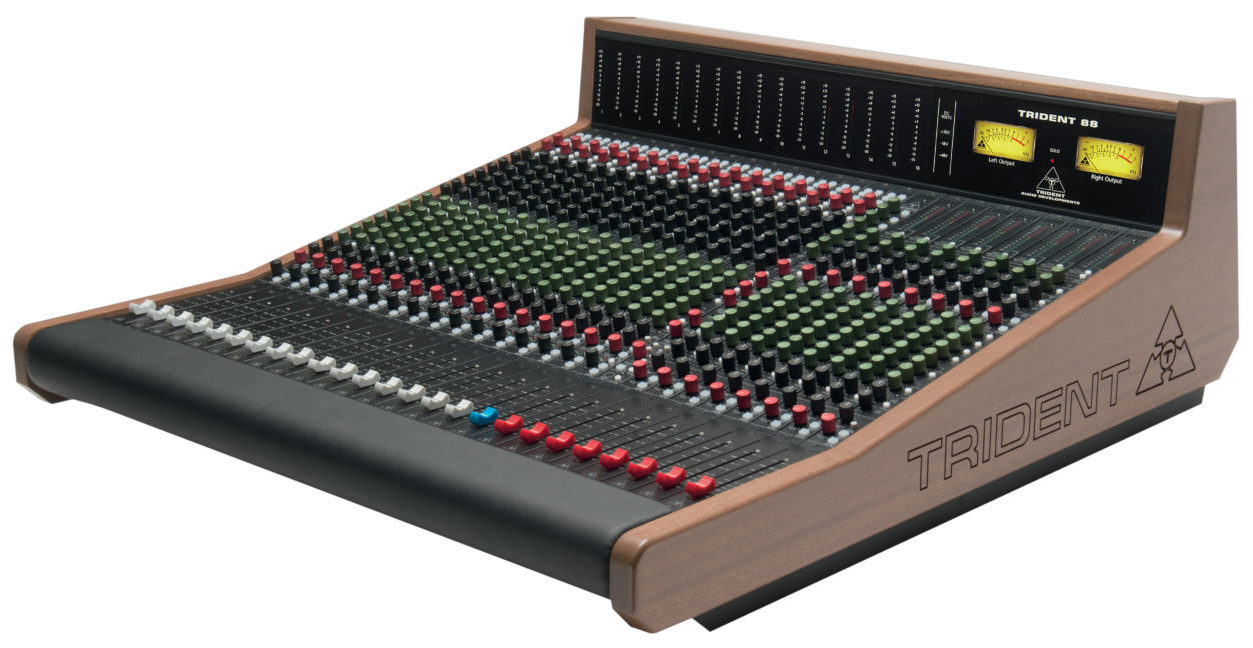

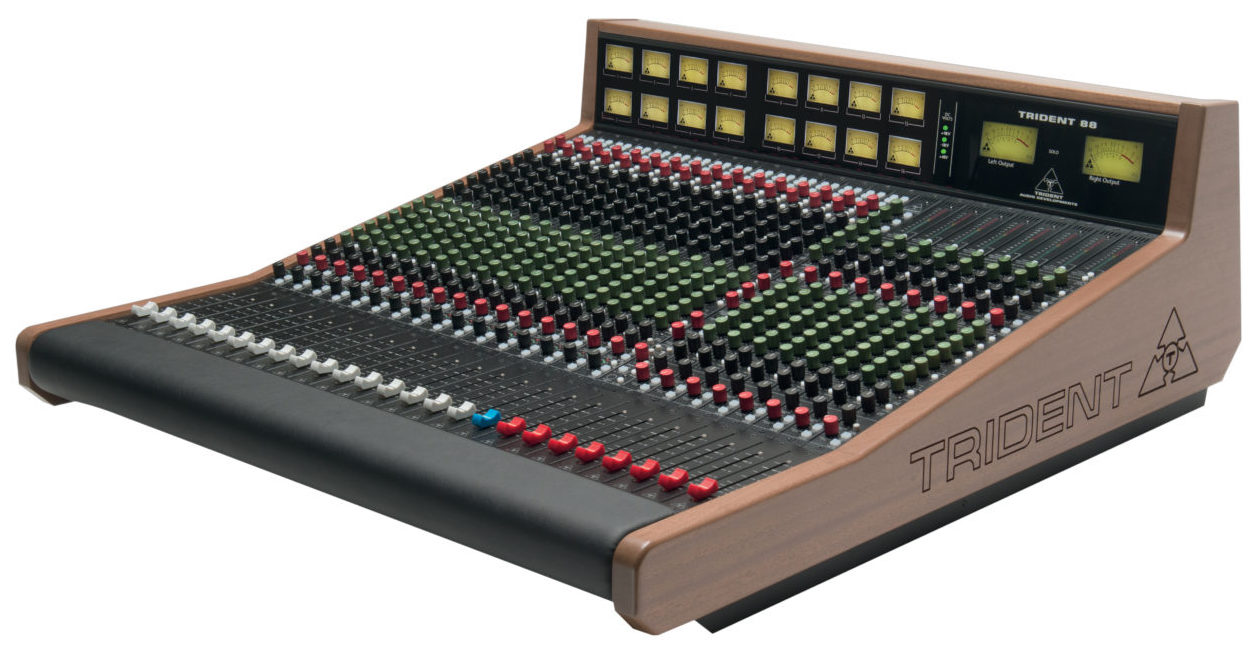

Trident 88 Console – 16 Channel LED Meter Bridge / Trident 88 Console – 16 Channel VU Meter Bridge

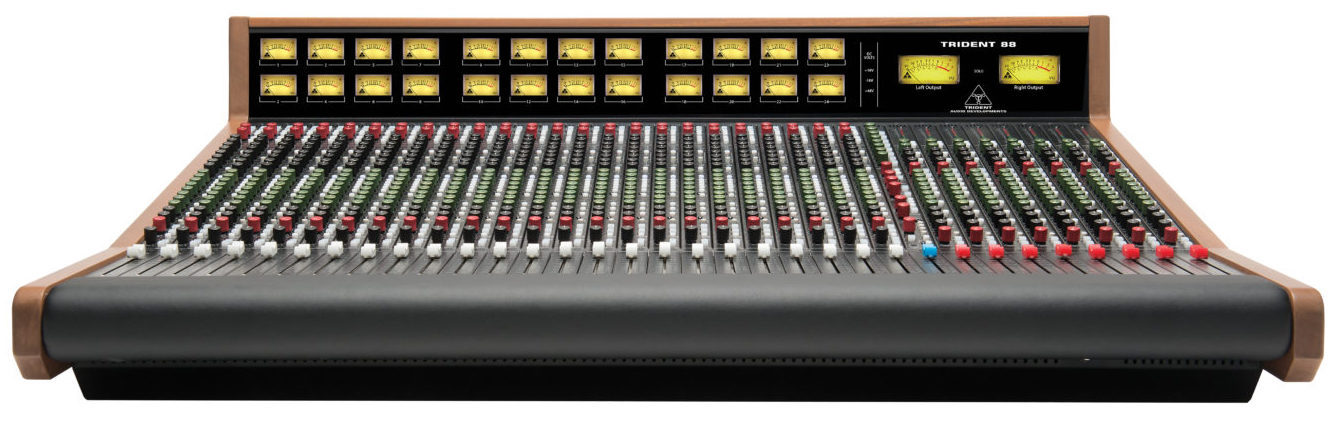

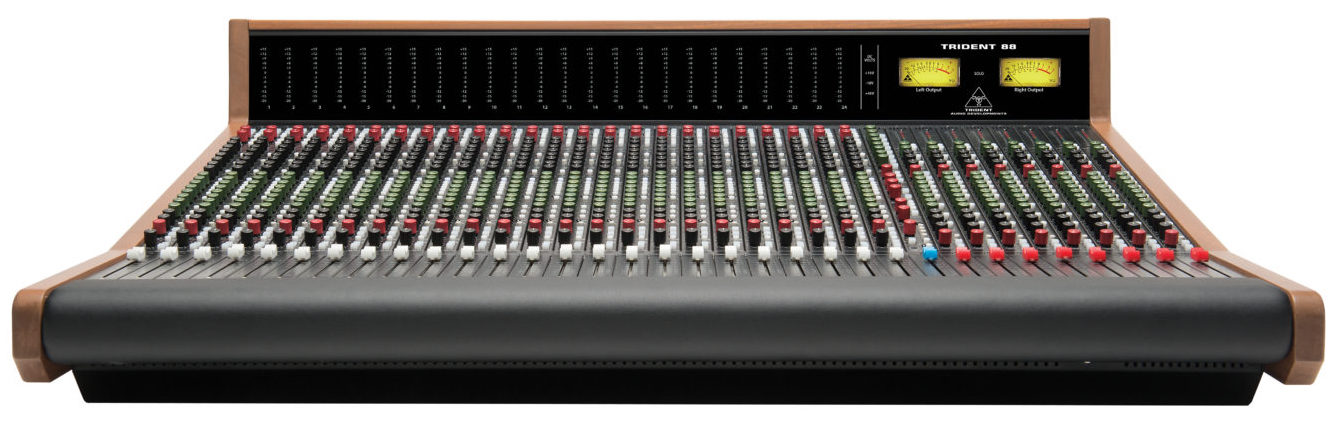

Trident 88 Console – 24 Channel LED Meter Bridge / Trident 88 Console – 24 Channel VU Meter Bridge

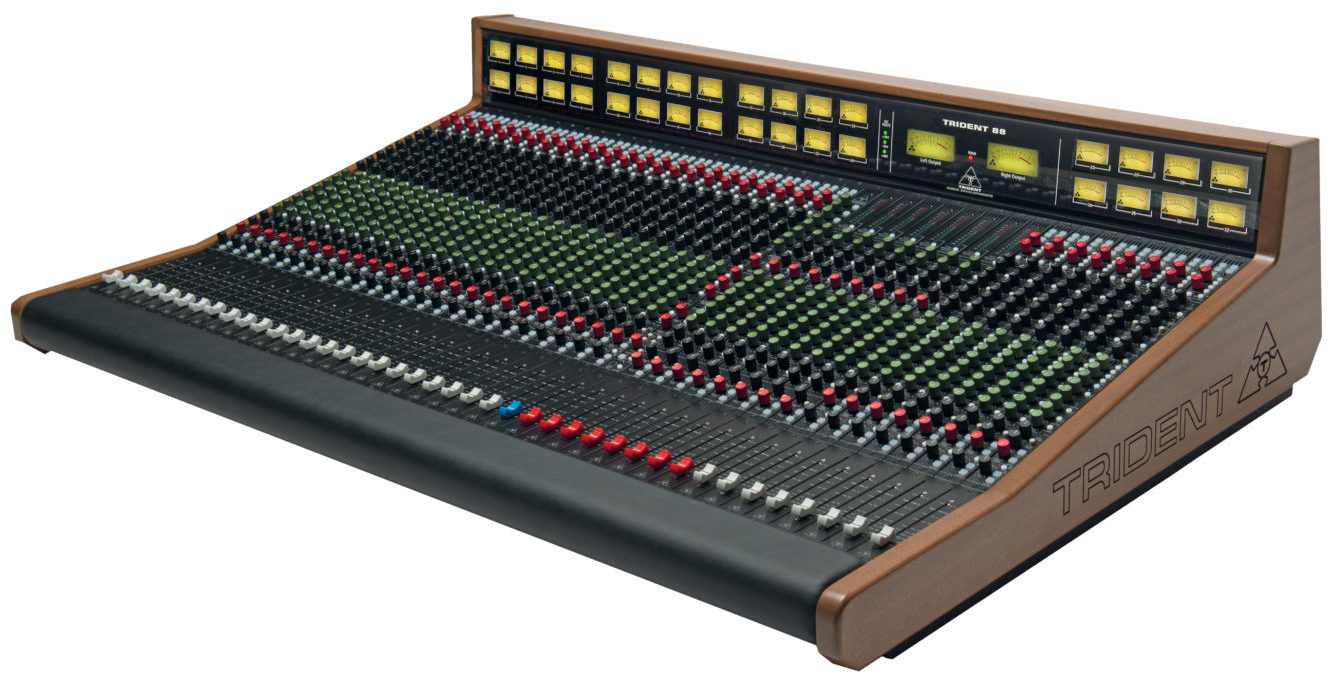

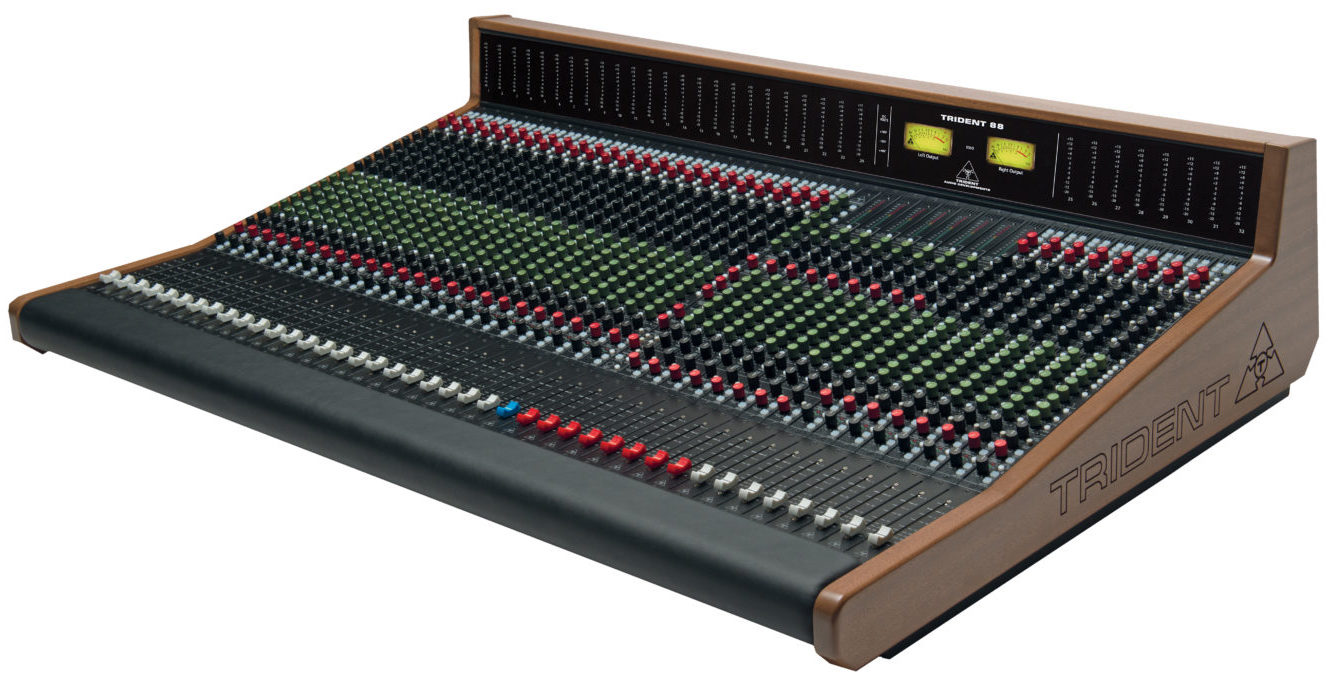

Trident 88 Console – 32 Channel LED Meter Bridge / Trident 88 Console – 32 Channel VU Meter Bridge

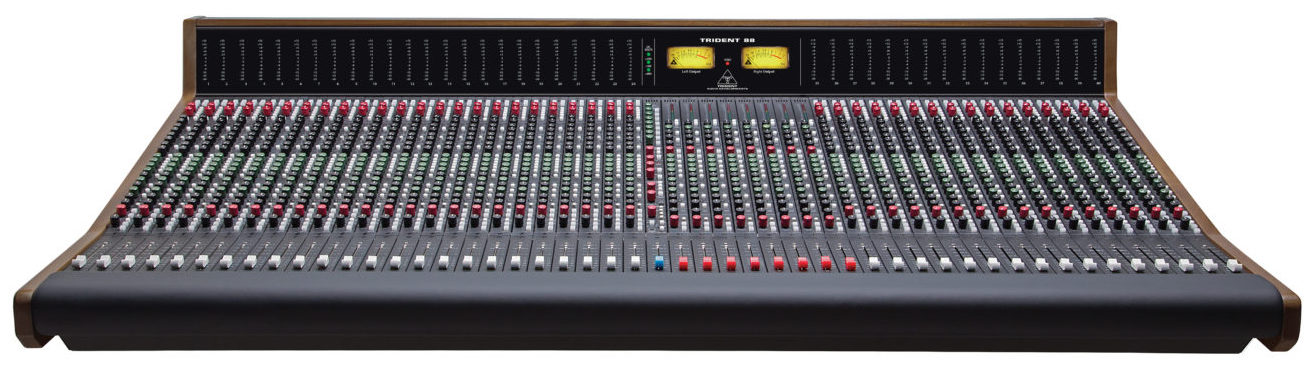

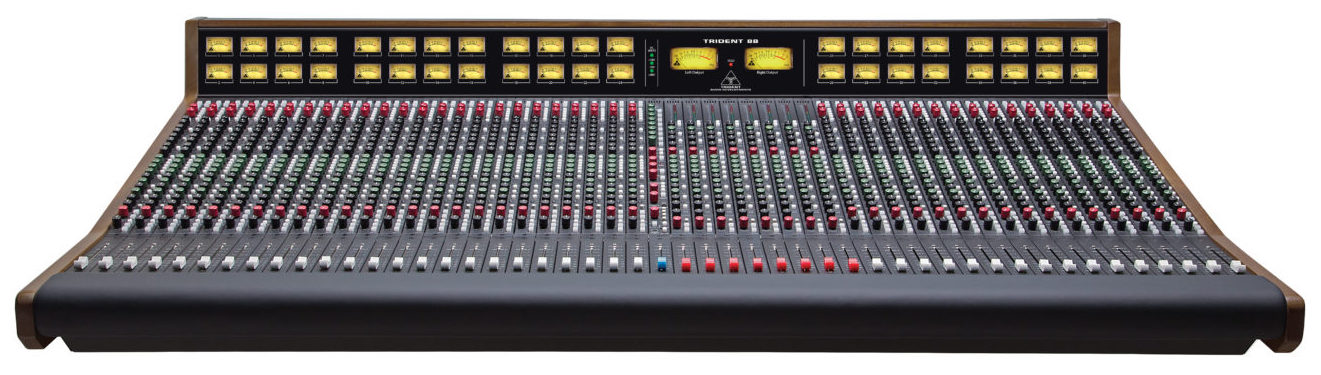

Trident 88 Console – 40 Channel LED Meter Bridge / Trident 88 Console – 40 Channel VU Meter Bridge

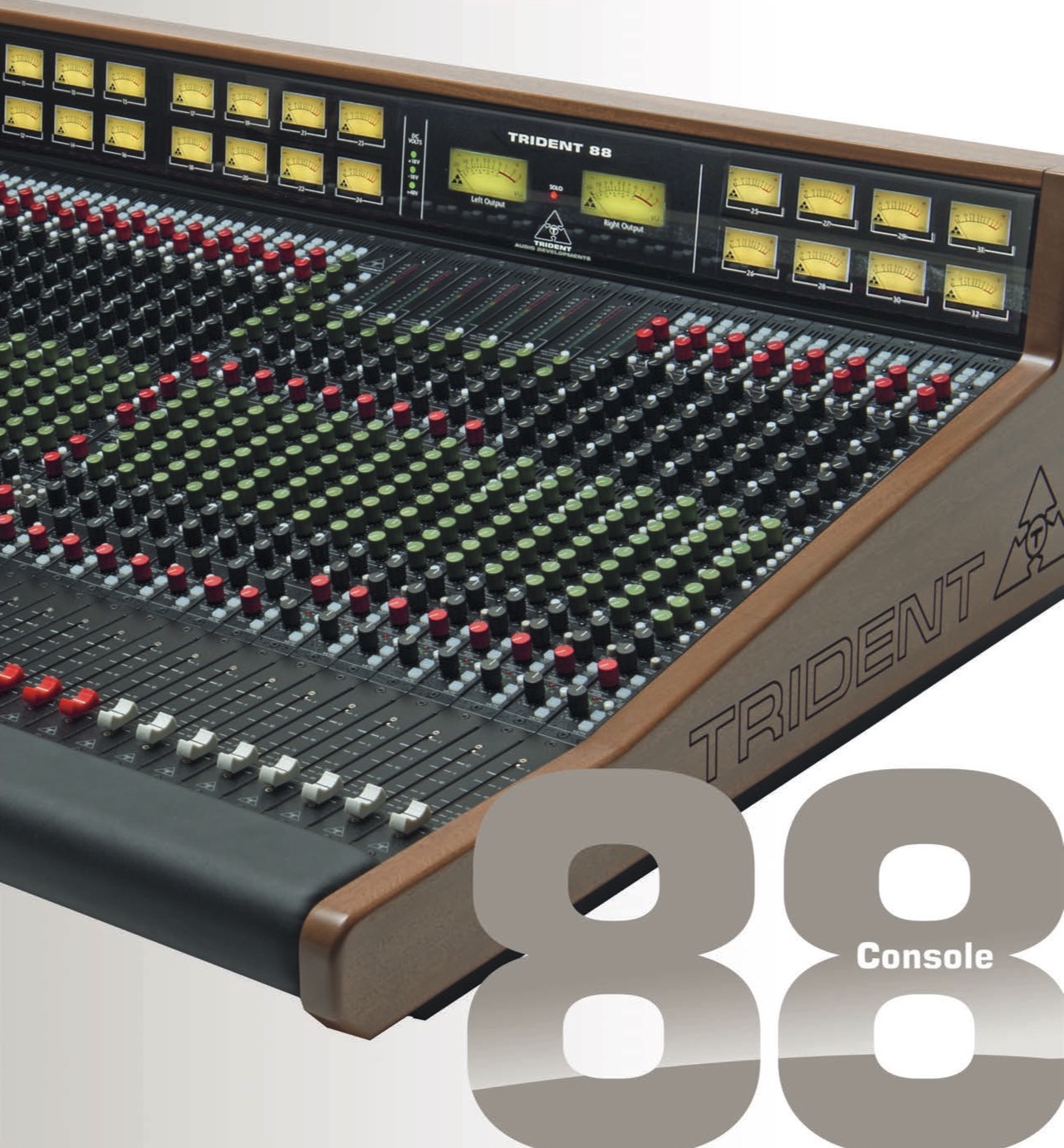

The Trident 88 is a classically styled, in-line, eight-buss analog console and an advancement in lineage of the revered Series 80 mixing desks. Designed with manufacturability in mind, the 88 is artfully constructed for ease of use and workhorse reliability. Along with the pleasingly familiar routing and feel of a classic Trident desk, are modern refinements that serve to improve functionality, workflow and performance specifications. For example, integration with outboard processors and mic pre’s, such as the 500 format, is provided simply and elegantly by means of an exclusive, switchable input, which bypasses the channel preamp circuitry and allows for insertion of external signal sources directly to the channel equalizer.

Being a Trident, the equalization is of course, wonderful, and on the 88 – it is also plentiful. Always available on the channel, monitor, effects returns and group sections. In the area of customization, the 88 has options for vu metering, transformer I/O, automation, short loading and channel configurations exceeding 40 inputs. Features found throughout the 88 make for a straightforward and powerful package, but paramount to all else is The Sound. Among the many styles, preferences and methods of recording exists the expectation that a board must have the ability to be pushed hard and sound big. With 27dB of headroom, the 88 is designed to be pushed hard and sound big. This is a hallmark of the series 80 consoles and the 88 carries that tradition forward.

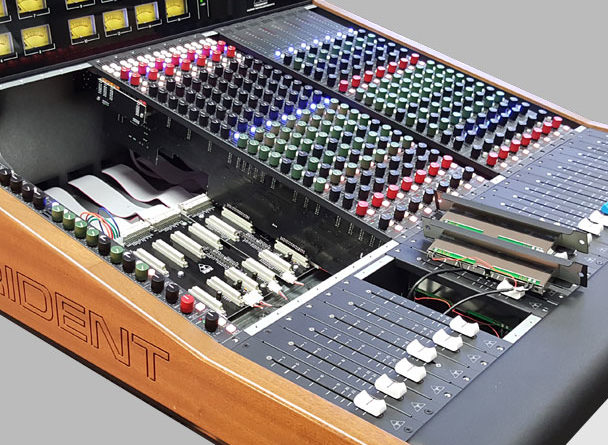

Fully Modular Design

Designed with manufacturability in mind. The Trident 88 was made from the ground up to be a rugged and reliable console. We went to great lengths to make sure that the 88’s are easy to build and equally easy to maintain. The 88 is designed so that the entire console can be serviced with a single screw driver. Motherboards are shock-mounted with rubber standoffs to isolate them from the chassis and provide additional protection from structure born stresses. A channel can be swapped in matter of minutes and the console will continue to function if one or more channels are removed.

• Faders, channels, groups, and master section are individually removable.
• All rear connections are also removable.
