Trinnov MC-PRO

Multichannel audio processor met Trinnov Optimizer-technologie als kern

Prijs op
aanvraag

Voeg dit product toe aan uw offerte

In offerte
Leverings- en Retourbeleid

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

MC-PRO

OPTIMIZE THE MOST COMPLEX SPEAKER LAYOUTS

The MC Processor range is Trinnov's answer to the audio calibration challenges of post-production monitoring systems.
The Trinnov Optimizer technology is at its core, including semi-automatic active-crossover calibration and bass management capabilities to meet the requirements of any loudspeaker systems.

Upgradable by design with a wide range of connectivity options available, the MC product range is split in two lines:

  • The MC Pro covers the needs of small post-production houses, from 5.1 to 9.1.6
  • The MC-HCC can handle 24 to 64 outputs to meet the requirements of theatrical dubbing stages and research labs



AN EVOLUTIVE PLATORM

Modular Platform
The Trinnov MC Processor is an expandable hardware platform that can be upgraded from 8 to 12 and 16 channels to accommodate future upgrade of your studios.

Hardware Options

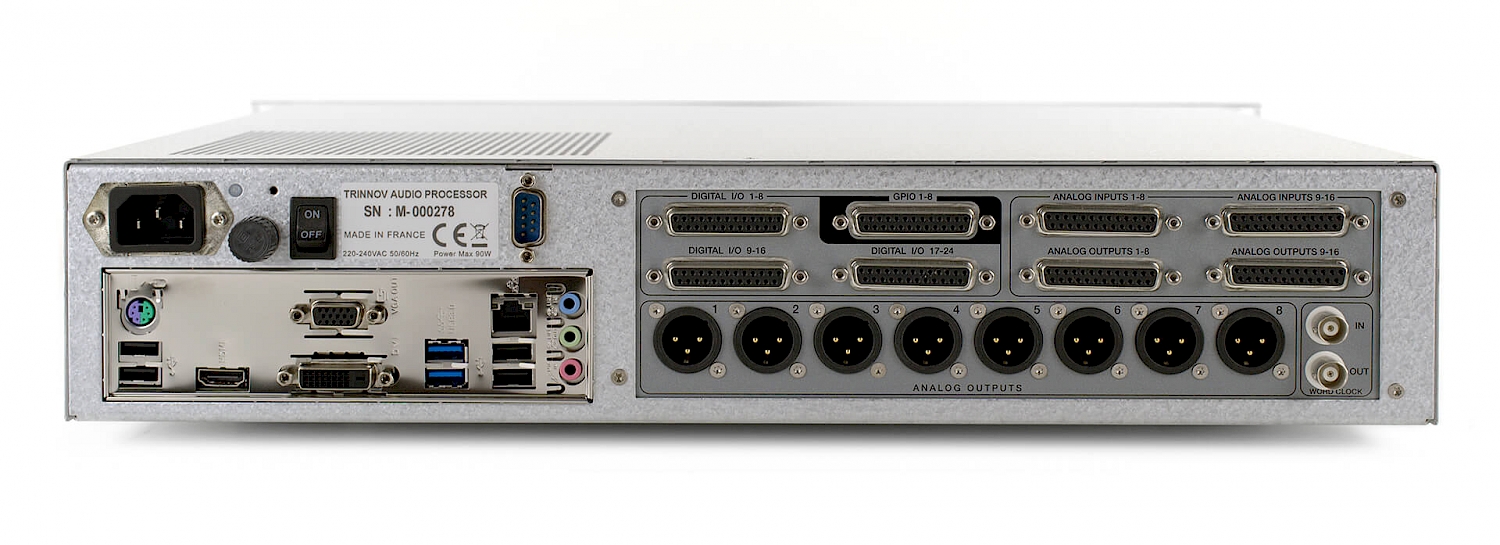

The MC Pro is available with different hardware configurations to facilitate the integration in your system. You can choose between analog & AES/EBU I/O, Dante, Ravenna/AES67 or MADI.

TAILOR MADE TO YOUR LISTENING ENVIRONMENT

Customizable Profiles
Trinnov combines automatic processes with flexible fine-tuning tools that allow the sound system designer and the engineer to reach the best results while making the whole process easier and faster. 8 Customizable Profiles allow mixing different parameters independently of the 29 existing user presets.

Precise Monitoring
Monitoring relies on both consistent measuring and the best possible listening conditions. The industry is guided by many monitoring standards such as SMPTE / ITU / AES for sound systems, and that’s where Trinnov brings a new level of expertise.

UP TO 4 WAY INTELLIGENT CROSSOVER ALIGNMENT

A unique way to align crossovers
Individual driver and system measurements are acquired and analyzed, including the impulse response, delays, and gains. Trinnov’s unique crossover calibration engine computes the ideal filters, finding the best compromise to improve flatness, directivity, and attack in the overlapping frequency region.

Comprehensive Processing
Comprehensive 64-bit floating-point processing tools are included on each processor platform: routing and mixing matrixes, manual FIR filters, parametric EQs, graphic EQs, gains, trims, peak and RMS meters, manual delays, bass management, 4-way active crossovers, inputs formats, noise generators, polarity control, editable Submix matrixes, monitor controller, dynamic range controller.

DOLBY'S SYSTEMS INTEGRATION VIA DANTE

For Dolby Atmos Mixing rooms, the MC Dante can be easily integrated. The MC Pro Dante can meet the requirements of Dolby Atmos Home studios up to 9.1.6 speaker configuration whilst the MC-HCC is suitable for Dolby Atmos theatrical systems with up to 64 speakers. Soft keys allow you to add more control (bypass, bass management, presets & profiles selection...)
Audio signal goes from Protools to the RMU via the MTRX, gets back to the MTRX and is routed to the MC as an insert, then goes to the loudspeakers using MTRX DA converters.

MADE FOR AVID EUCON

The Trinnov App acts as a gateway between EUCON and Trinnov protocols, letting you control all parameters of your processor from your AVID control surface. Any EUCON enabled product is compatible.
The MC-Pro offers extensive EUCON compatibility and full integration with AVID control surfaces: S6, S5, S3, Dock as well as Icon D-Command & D-Control.

THE TRINNOV APP

Simply called Trinnov App this free application for all Trinnov’s users will become a staple in your dock and facilitates set-up and use of all Trinnov processors.
This macOS App lets you discover all Trinnov machines currently on your network. From it, you can execute basic essential functions from saving and loading presets to control volume or dim and mute. As well no more need of VNC you can now directly launch the web application of your machine(s) to perform a new set-up or calibration.
