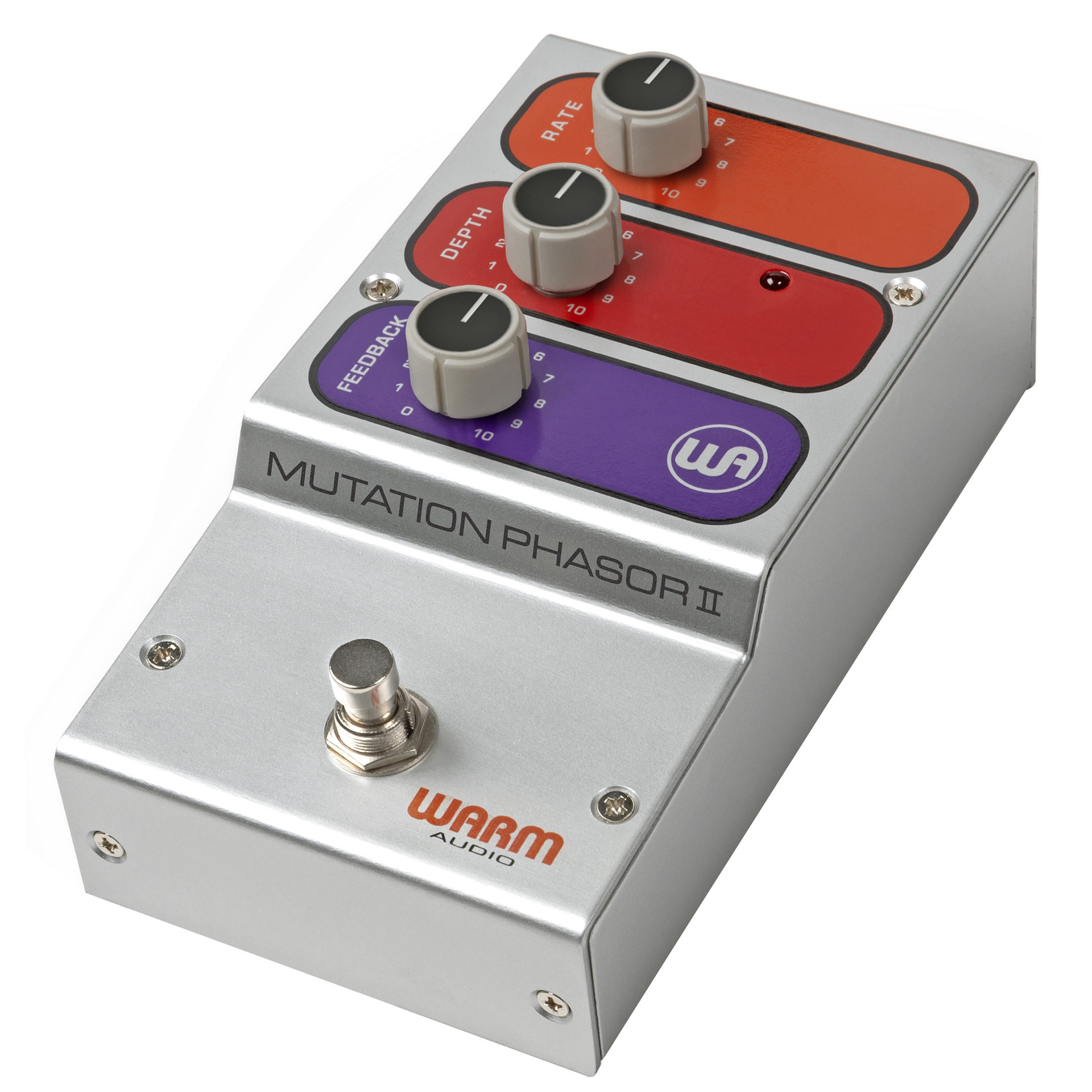

Warm Audio Mutation Phasor II

Mutation Phasor ll

Electro-Optical Phase-Shifting Pedal With Feedback Circuit

ACCURATE RECREATION OF A SWIRLY PHASER MADE FAMOUS IN THE EXPERIMENTAL ERA OF THE 1970s

A 70s Legend

The Warm Audio Mutation Phasor II is an accurate recreation of one of the most desirable,100% analog phaser circuits made famous in the experimental era of the 1970s. Mutation Phasor II has all of the vintage vibes of the original phaser pedal allowing you to add depth, wobble, swirl, or “instant funk” to guitar, keys, bass, or anything you can dream of. This electro-optical phase-shifting pedal is built with a true-to-spec recreation of the 70s circuit using premium components. True to the original pedal, Mutation Phasor II delivers all the rich depth and instant psychedelic tones, favored by innovative musicians and producers like Billy Corgan, Tom Bukovac, Robin Trower, and many more.

Swirly, Psychedelic, Rich Analog Tone

Adding the Mutation Phasor II to your rig is like adding a new instrument. Fine-tuning the depth of the modulation just right and timing the speed to sync perfectly with the tune takes you back to old-school gigging and recording. For those looking for a truly unique phaser experience, send the phase shifts into overdrive by dialing up the feedback, emphasizing the “wooshes” of the pedal. Altogether, the Mutation Phasor II is not just a pedal, but more of a tone-shaping experience.

A true-to-original recreation of the 70s circuit, Mutation Phasor II is built with premium components including classic RC4558P op-amps, vintage-style diodes, carbon resistors, and film caps - Housed in an ultra-tough, vintage-vibe steel case.

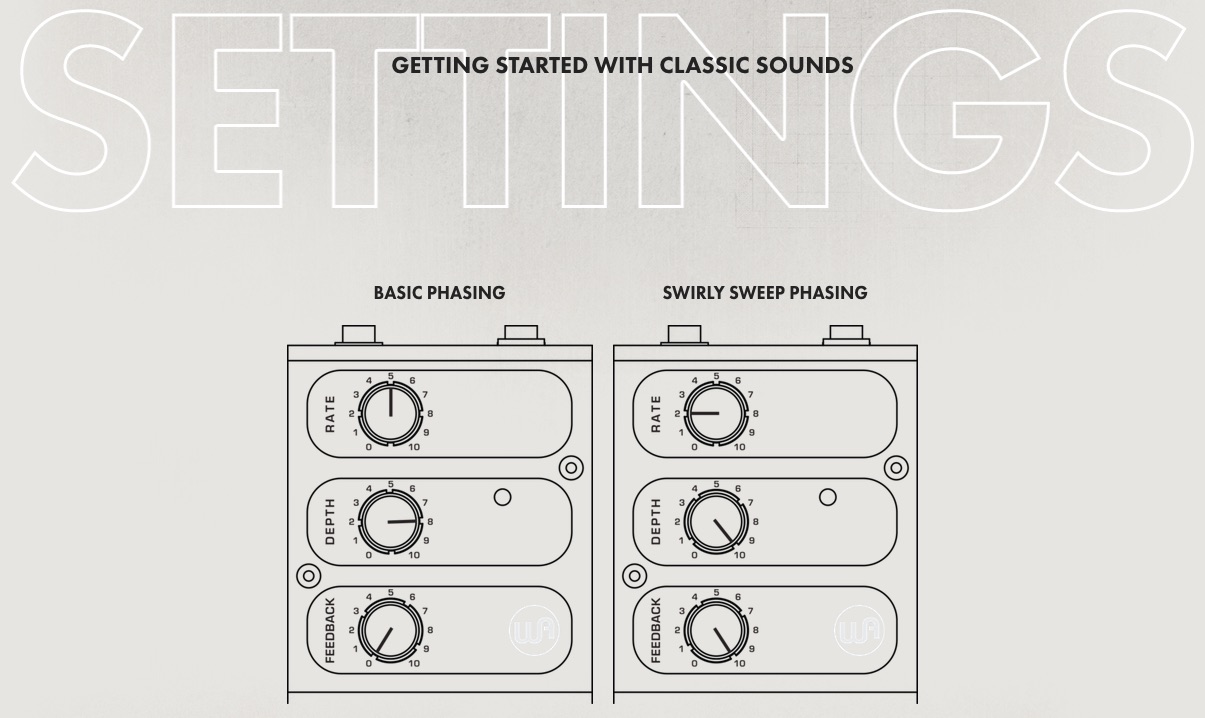

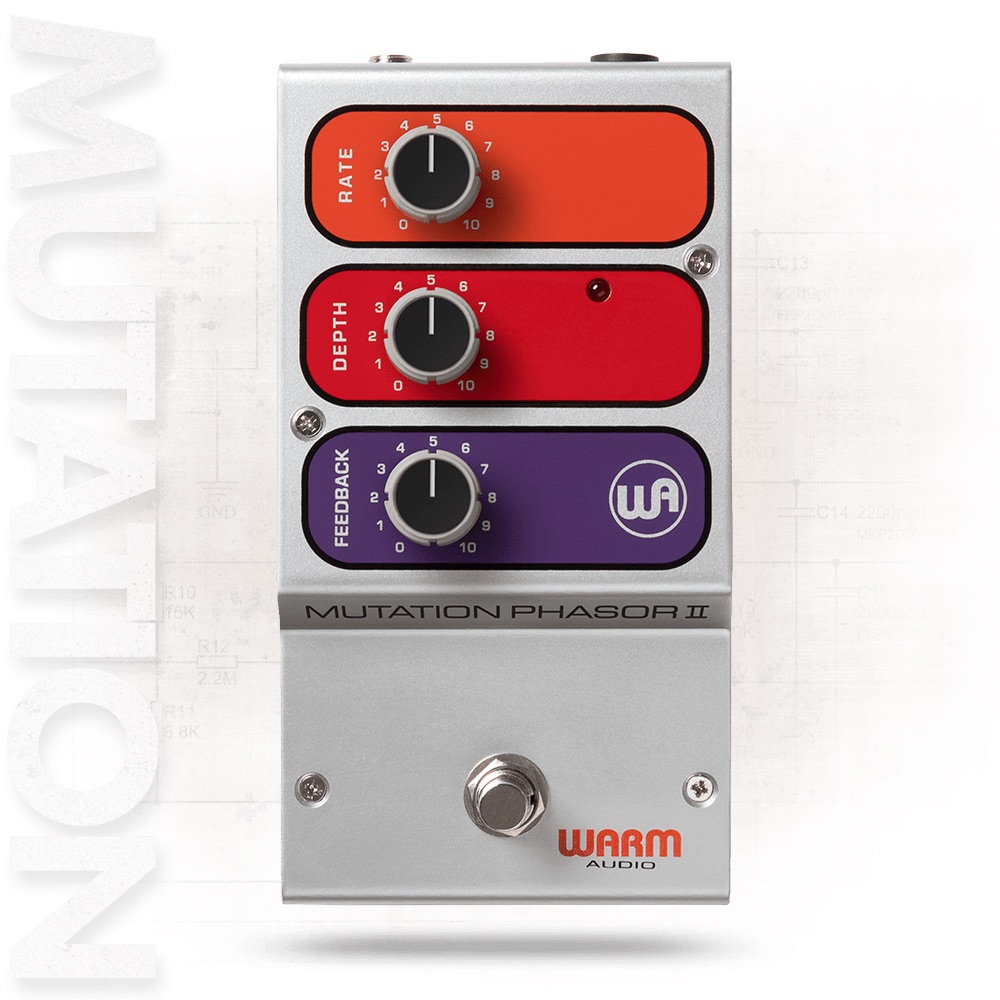

Pedal Settings & Controls

To deliver an authentic, experimental experience, the Mutation Phasor II brings back all of the original controls. For ultra-rich swirly phase shifting, the “Depth” control allows you to vary the width of the sweep range - delivering deep modulation expected from a vintage all-analog pedal. Increasing the depth control adds width to the frequency range of the effect, impacting higher highs and lower lows. Easily change the speed (or rate) of the phase-shifting effect to create more or less “wobble” in your tone - from 1/10th sweeps per second (slowest) to 18 sweeps per second (fastest). Increasing the “Feedback” control adds electric feedback to the “wet” phase-shifting signal. Increasing the feedback control creates a more intense phase sound with a particular emphasis on the sweeps, especially noticeable at slower rate settings.

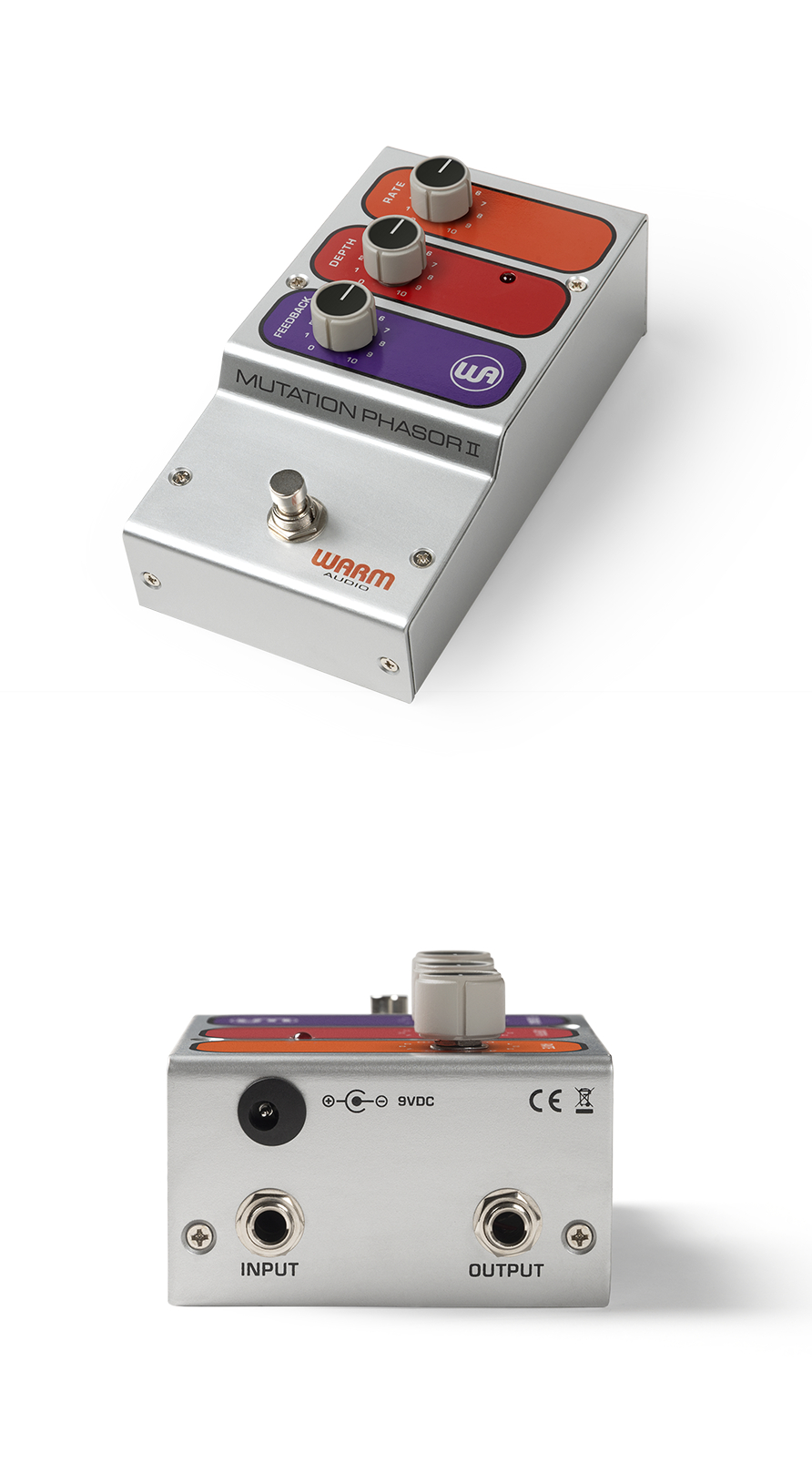

Technical Specifications

• Electro-Optical Phase-Shifting Pedal With Feedback Circuit
• Phasing Rate: .1Hz - 18Hz
• Premium Components, Including RC4558P Op-Amps, Various Vintage-Style Diodes, And Hand-Selected Film Capacitors & Carbon Resistors
• Controls: Rate, Depth, And Feedback
• Frequency Response: 20Hz - 20KHz
• Min Feedback: 4V RMS, 11.2V Peak-To-Peak | Max Feedback: 2V RMS, 5.6V Peak-To-Peak
• Current Draw: 150 MA
• Buffered Bypass

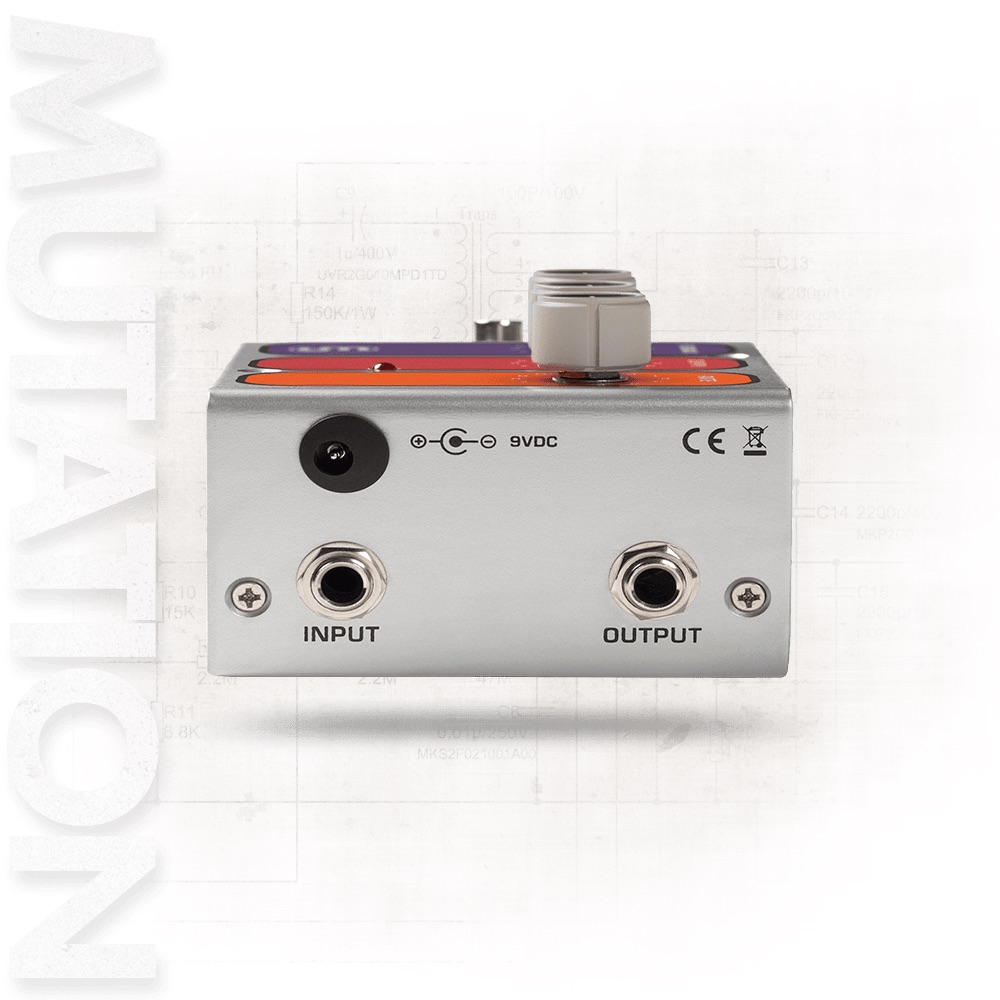

• 9-Volt Battery Or External 9V Regulated DC Adapter (Center-Negative
