Warm Audio WA-14SP Stereo Pair

KEY FEATURES

What you need to know

• Like the original EB 414-style mic, the WA-14 includes all the features that deliver a complete and professional recording experience.
• Three polar patterns (cardioid, omni, and figure-8) give you a variety of options to choose how you want to capture sound and reject noise.
• The -10 / -20 dB pad provides more headroom to record loud sources with the impressive detail of a large diaphragm condenser.
• Unlike nylon iterations of this capsule, the brass CK12-style capsule in the WA-14 delivers the vintage performance of the original pairing natural midrange with smooth top-end.
• The WA-14 SP package comes with a stereo mounting bar for easy recording setup and an ultra-durable flight case for storage and travel. Each WA-14 mic is a matched sequential pair: Within +/- 1dB of each other.

TECHNICAL SPECIFICATIONS

Product Description & External Specs

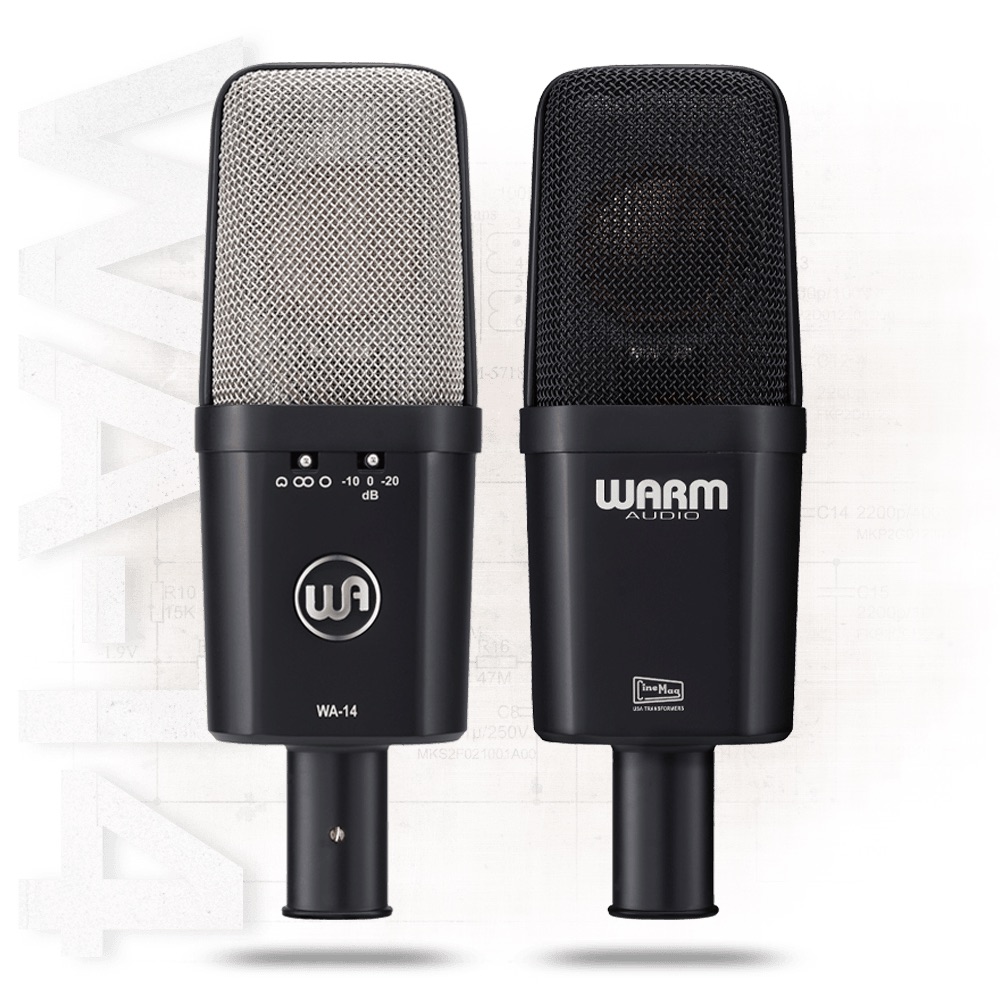

• Large-Diaphragm Transformer-Balanced Condenser Microphone
• Polar Patterns: Cardioid, Figure-8, & Omnidirectional
• Output Pad: 0dB, -10dB, -20dB
• 3-Pin, Gold-Plated XLR
• Color: Black
• SINGLE MIC Package includes WA-14 Microphone, Shock Mount, Hard Mount, And Protective Pouch

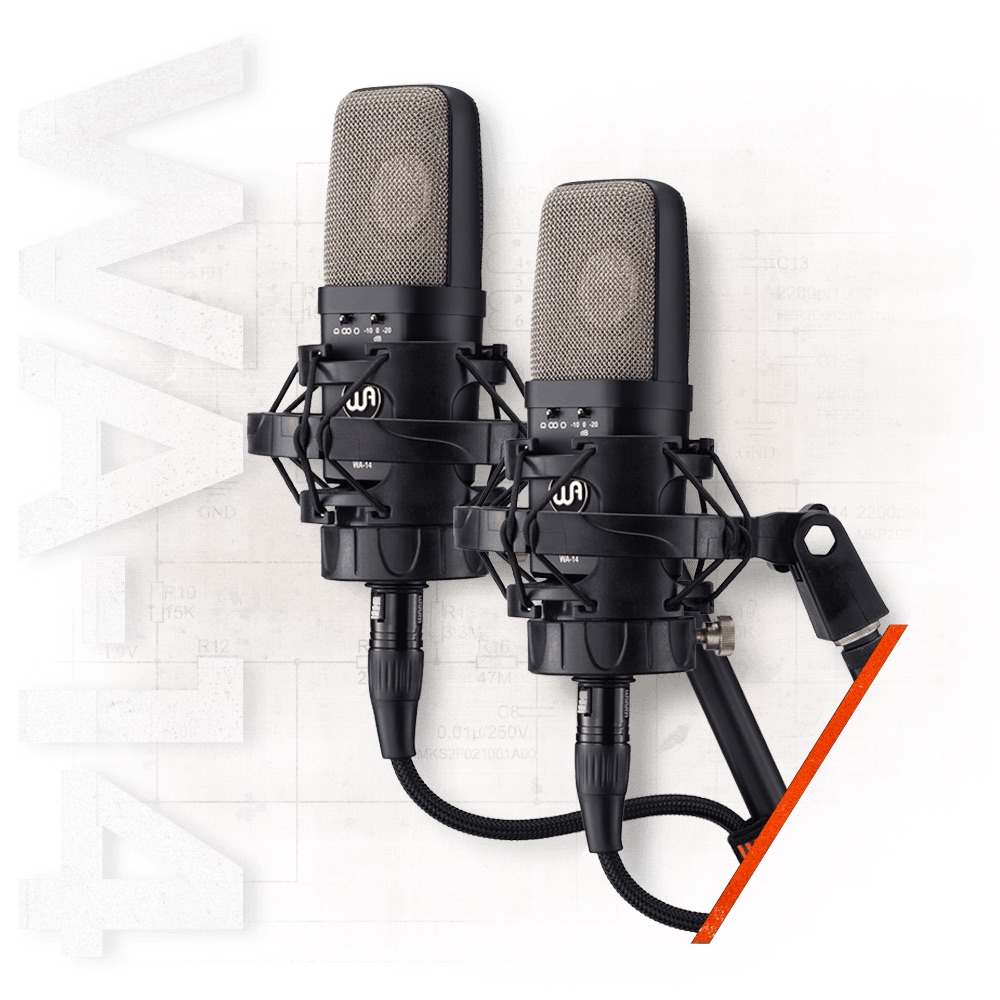

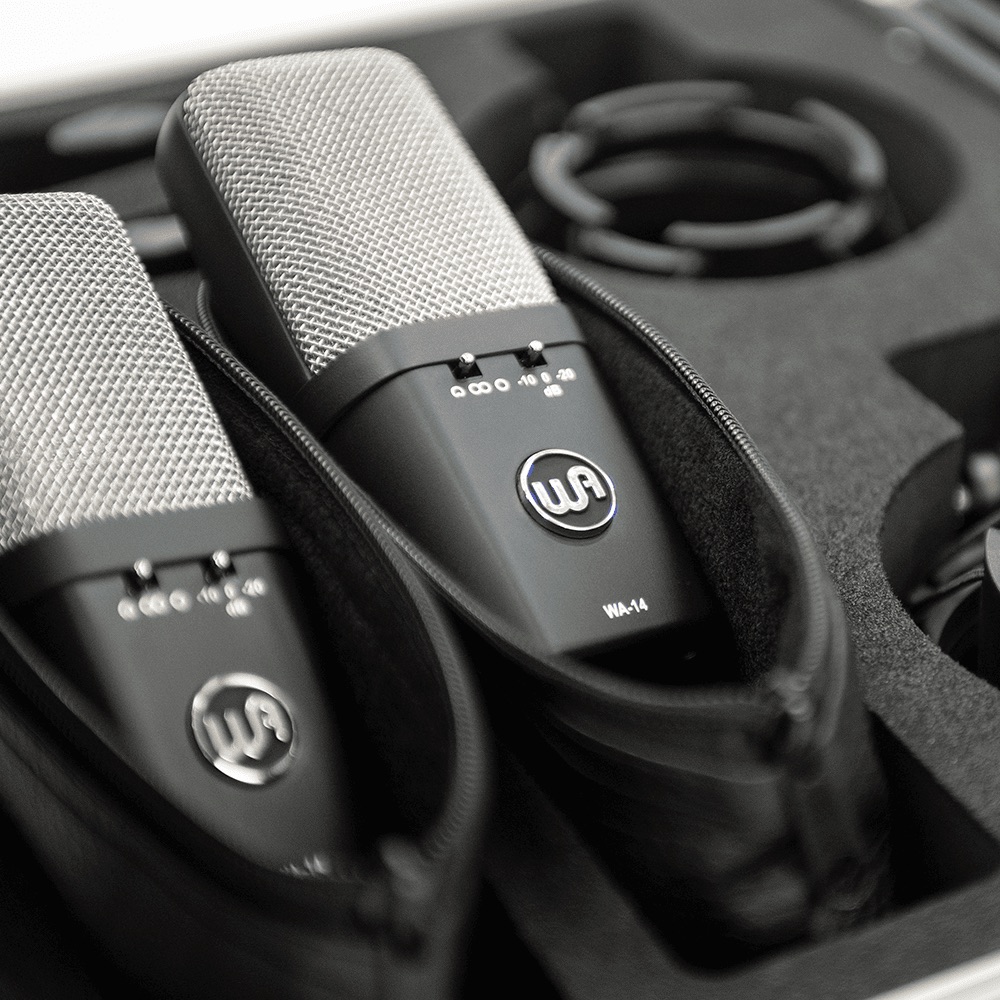

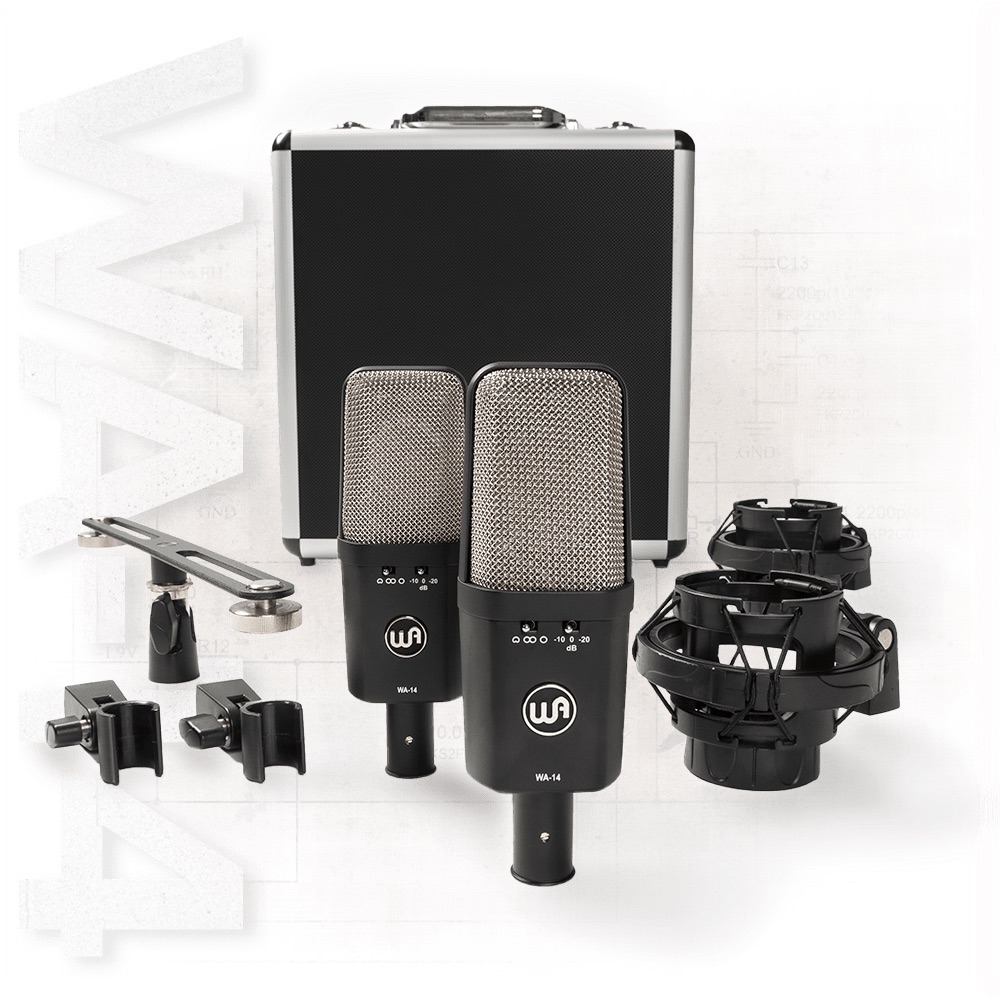

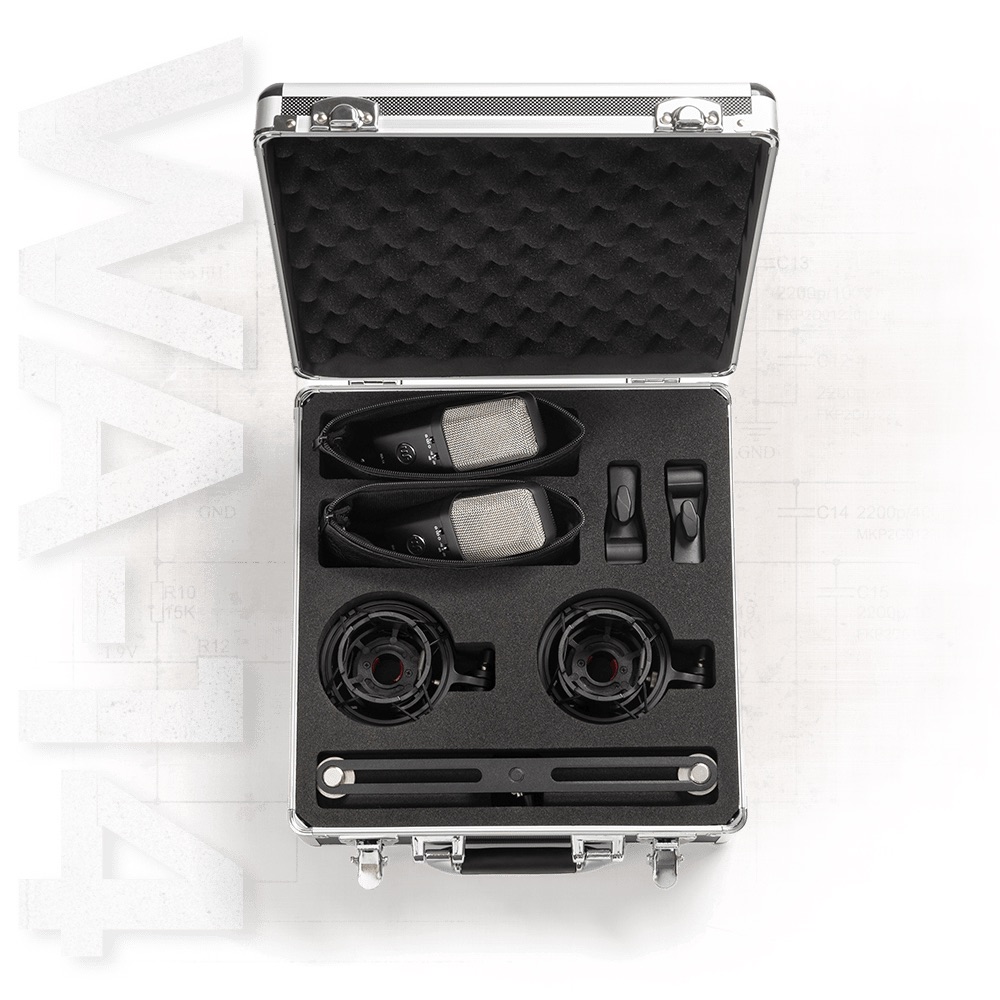

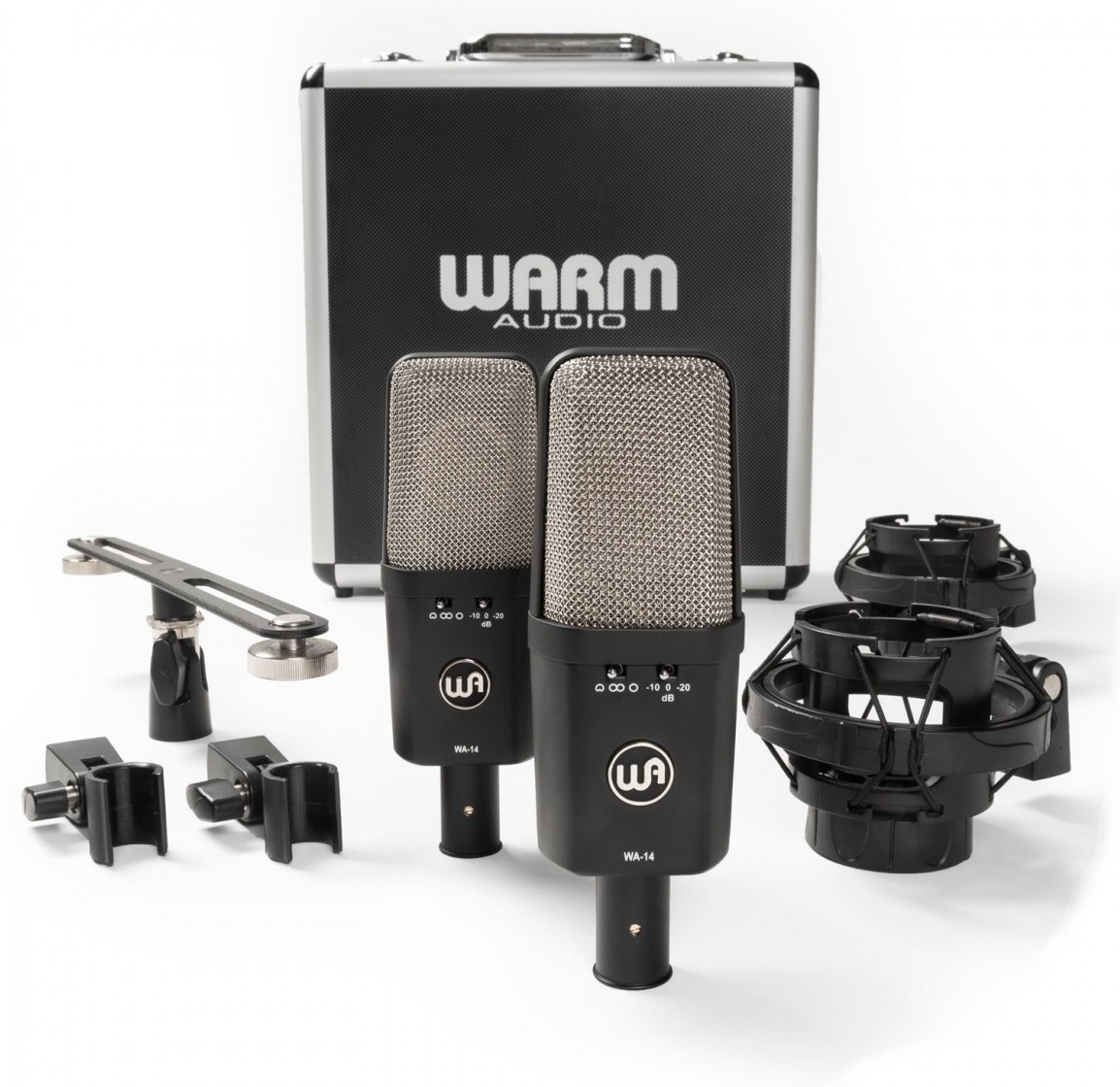

• STEREO PAIR Package includes (2) WA-14 Mics, (2) Shock Mounts, (2) Hard Clips, (2) Pleather Zipper Pouches, Flight Case, Stereo Mounting Bar
• 5-Year Warranty

Components & Internal Specs

• Custom Edge-Terminated, Dual-Diaphragm, 34mm, All-Brass CK12-Style Capsule
• Custom CineMag USA Transformer

Performance Specs

• Stereo Pair: Sequential-Serial Pair: Within +/- 1dB
• Frequency Range: 20 Hz To 20 kHz
• Output Impedance: 150 Ohms
• Self Noise: 16 dB(A) +/- 1dB
• Max SPL: 165 dB
• Sensitivity at 1000 Hz (all patterns): 9 mV/Pa
• Requires +48V Phantom Power
