Wunder Audio PEQ2

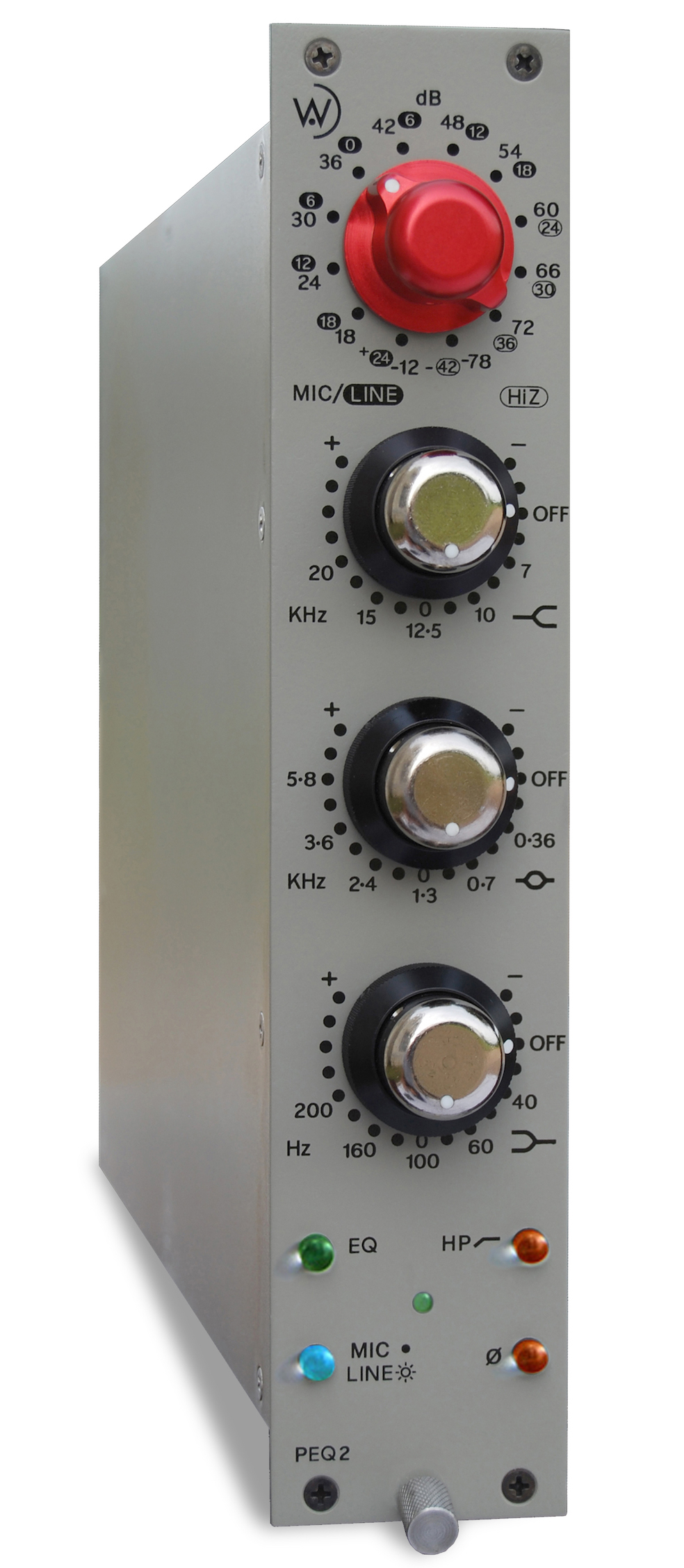

Wunder Audio PEQ2 Single Module

The Wunder Audio PEQ2 is a fully Class-A discrete 1970's-style mic-pre/equalizer. It can directly replace the 1073. The 18-way gold plated Amphenol connector will mate with vintage Neve "80 Series" consoles or racks. The similarity to the 1073 stops there! With its Western Electric style transformers and long list of features, the Wunder Audio PEQ2 can go head to head with anything on the market, old or new.

PEQ2 Features:

• Extended output stage on the tail end, just before output transformer, for greater maximum gain.
• Wunder Audio's own "NICO" Western Electric 618B-style transformers (Nickle/Iron/Cobalt).
• High quality custom Grayhill gain and EQ switches with exceptional gold contact per switch position.
• Global EQ bypass button switches EQ totally out of circuit.
• Individual band bypass switch. When EQ is on, each band can be individually by-passed.
• Light pipe pushbuttons, as used in the Wunderbar Console.
• Discrete, active high pass filter.
• Phase switch.
• LED metering with Green signal indicator and Red clip light.
• 78 dB of total gain.
• Thick gauge mu-metal enclosure for superior shielding and RF protection.
• Thick and sturdy faceplate.
• 1% Metal Film resistors for a low noise floor and better matching from channel to channel.
• Sturdy amp compensation / RF rejection capacitors.
• Optimized component layout with thick copper traces.
• RF filtering.

It is recommended that the PEQ2 modules be installed in any Rack or Console that was designed to power up a 1073 module.
