Wunder Audio PEQ2R

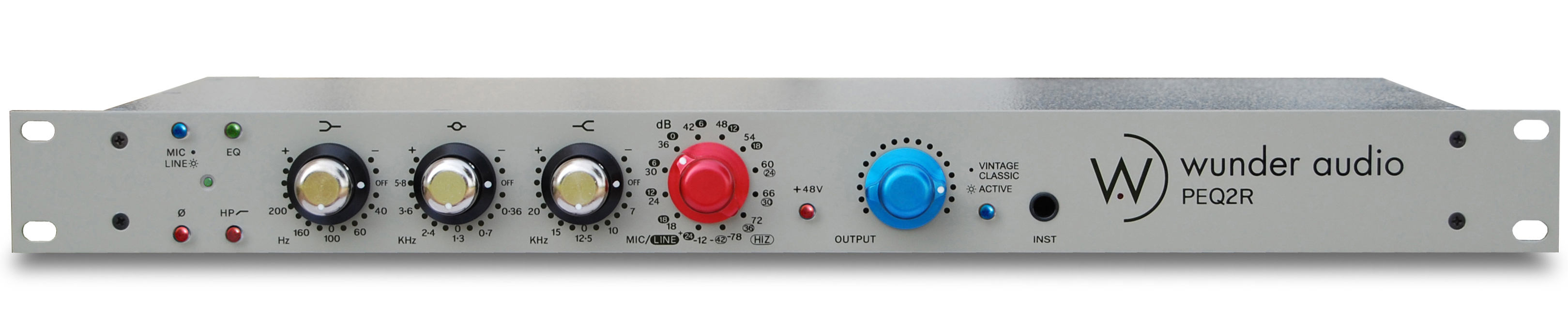

Wunder Audio PEQ2R 19" Rack Mount

The Wunder Audio PEQ2R is a classic-sounding 1073-style mic pre/EQ with high-pass filter. The PEQ2R mic-pre/equalizer is the 19" rack mount version of the PEQ2. It has a conductive plastic logarithmic taper output level potentiometer, which acts as an output fader, a 48V phantom power switch and a quarter inch instrument input jack. Wunder Audio has taken the PEQ1R and enhanced it to make it even better!

PEQ2R New Features:

• NEW output stage added to the tail end, just before output transformer, for greater maximum gain.
• Upgraded "NICO" transformers (Nickle/Iron/Cobalt).
• Improved Gain switches with over 3 x the gold contact area per switch position.
• Improved EQ switches with over 3 x the gold contact area per switch position.
• Light pipe pushbuttons, as used in the Wunderbar Console.
• Discrete, active high pass filter.
• LED metering with Green signal indicator and Red clip light.
• 1/4" instrument input is selectable from Active or Classic Input on PEQ2R.
• Gain knob now has one extra counterclockwise position to achieve -6db less gain (-24dB instead of -18dB like on old units).
• Totally redesigned enclosure with thicker gauge metal for superior shielding and better RF protection.
• Thicker faceplate on PEQ2R.
• 1% Metal Film resistors for lower noise floor and better matching from channel to channel.
• Sturdier amp compensation or RF rejection capacitors.
• New PCB with revised and optimized component layout with beefier traces.
• RF filtering.

Click here for the Wunder Audio PEQ2R product page.
