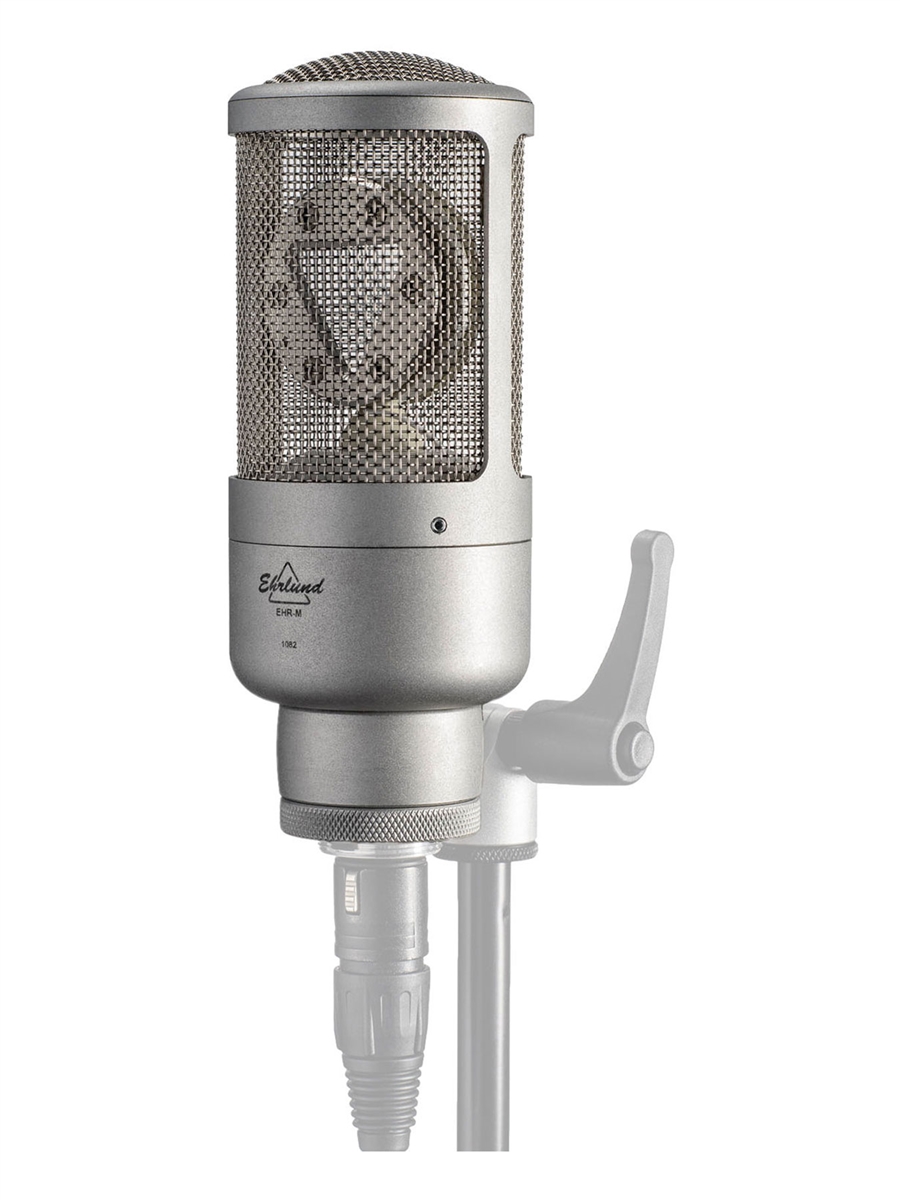

Ehrlund Microphones EHR-M

DESCRIPTION

The EHR-M is a Swedish manufactured condenser microphone for studio use, it has been designed to deliver the cleanest sound possible. Its patented triangular membrane design has been allied to a patented very low noise and low power phantom feed amplifier. The EHR-M has both broad and smooth pickup characteristics, with deep bass and extended treble. This microphone has impressive stats in self-induced noise, sensitivity and frequency range. The output signal is strong and usually does not need much amplification.

Characteristics

• Large diaphragm condenser microphone
• Patented triangular membrane
• Patented internal amplification and power circuits
• Optimised for studio environments
• Transparent and natural sound
• Great low-noise performance
• Phase and frequency linear internal amplifiers
• Excels at distance miking
• Broad pickup range, linear frequency response even at distance or off axis
• Bass frequencies are picked up in an accurate way even at some distance
• Natural reproduction of fast transients
• Colouring of sound is negligible and true to the original source
• Frequency range spans from infrasonic bass to ultrasonic treble
• Low energy consumption, ~2.0 mA
• Strong output signal; usually doesn’t need any external amplification
• No pre-filtering needed, Ehrlund microphones are made for flat EQs
• Each and every Ehrlund microphone is stereo matched with its own model
• Handles all impedances without altering frequency or phase

Specifications

Type Condenser microphone Membrane type Triangular membrane, combines the characteristics of both large and small membranes Pickup pattern Cardioid Frequency range 7 – 87,000 Hz Sensitivity at 1kHz -33 dBV/Pa (23 mV/Pa) Impedance Handles all impedances Equivalent noise level < 7 dBA Signal-to-noise 87 dBA Dynamic range 115 dB Max​ SPL (peak) 0.5% THD 116 dB 1% THD 122 dB Power supply 48 V Phantom power Current consumption 2.0 mA Connector XLR 3-pin Materials Aircraft-grade aluminium body, hardened nickel-plated stainless-steel net Finish Glass bead blasting Dimensions Ø60 mm x 155 mm Weight 340 grams
