Warm Audio Tone Beast TB12

KEY FEATURES

What you need to know

• Like the original 12-series American preamps, the TB12 includes all the features that deliver a complete and professional recording experience.
• The classic Warm Audio “tone” control alters the input transformer to add “air” or “sheen” to the top end - great for ribbons or “darker” mics.
• The TB12 allows selection between two output transformer materials, delivering a more rolled-off tone (steel setting) for tighter mids, or a more flat tone (nickel setting) exposing more lows and highs.
• The TB12 provides different op-amp flavors that are more vintage or clean-voiced. This is especially noticeable as the preamp is driven into higher gain and more saturation. Experience more clarity in the clean setting and more harmonics in vintage.
• The switchable 80 Hz high pass filter makes it easy to remove unruly bass noise from sources before you even hit record.

TECHNICAL SPECIFICATIONS

Product Description & External Specs

• Dual-Voice American Mic Pre
• Transformer Selection Provides Both Steel And 50% Nickel Cinemag Output Transformers For Varying Character
• Transformer Bypass Switch Allows For Removal Of The Output Transformer From The Circuit
• Discrete Op-Amp Selection Enables Switching Between A 1731 (Vintage Tone) & 918 (Cleaner, Modern Tone) Style Op-Amps.
• Classic Warm Audio Tone Control Alters Input Impedance To 150 From 600 Ohms For Further Tonal Experimentation
• 80hz High Pass Filter
• Polarity Reverse
• +48v Phantom Power
• Output Attenuation Allows For Saturation Flexibility Of Both Op-Amps And Transformers
• ¼" Insert For The Use Of Inline Compressors, Eq's Etc

• Balanced Xlr Mic (Front And Back), Balanced Trs Line, And ¼" Unbalanced Instrument Inputs
• Balanced Xlr And Trs Outputs
• -20db Pad
• LED VU Meter
• Switchable 115/230 Volt Iec Power Inlet.
• Capacitor Selection Between Tantalum And Electrolytic For Different Characters
• Chassis Depth: 6” | 15 cm
• 5-Year Warranty

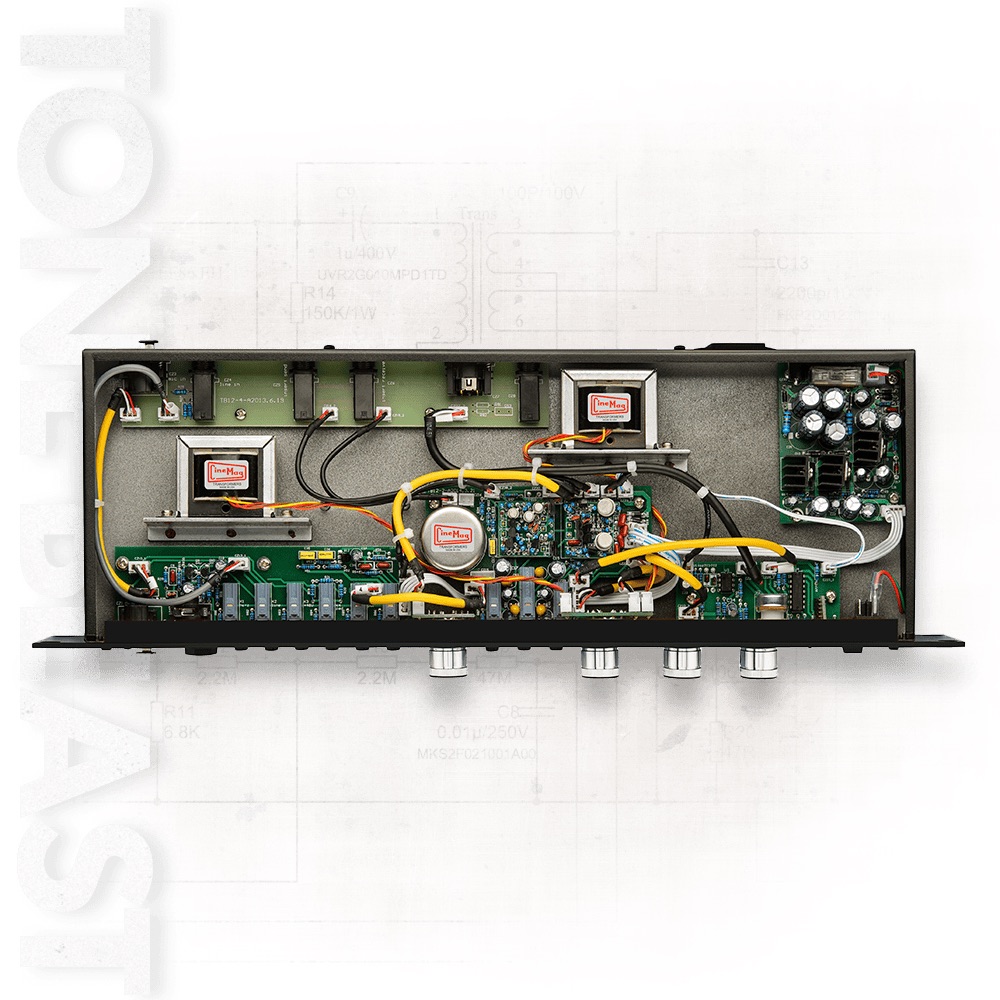

Components & Internal Specs

• Utilizes Premium CineMag USA Transformers
• Op-Amps Are Swappable With Your Choice Of 2520 6-Pin Footprint Op-Amps
• True Hi-Z Input On Front Panel Sends Instrument Signal Through Entire Circuit Including Transformers

Performance Specs

• 71dB Of Gain
