Warm Audio WA273 | LPA special | Price only for current stock

KEY FEATURES

What you need to know

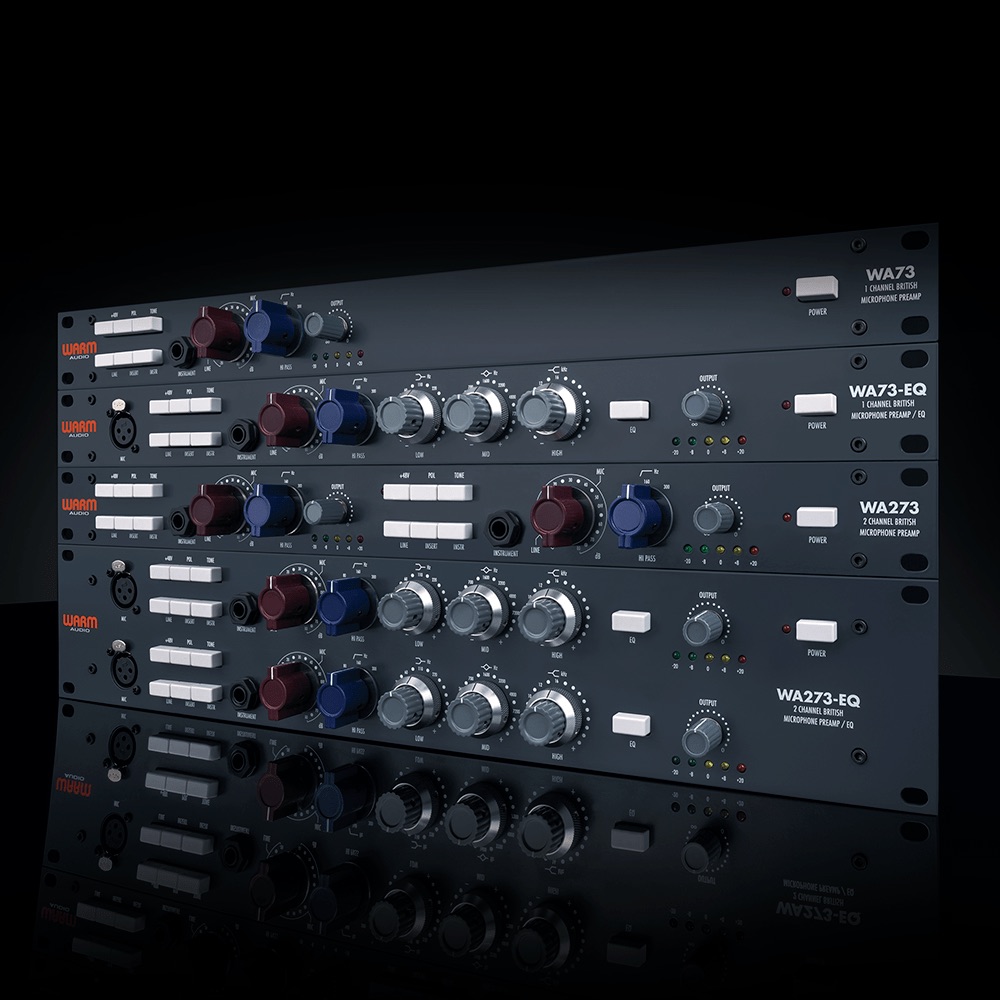

• Like the original 73-series British console preamp, the WA73 series pres include all the features that deliver a complete and professional recording experience.
• The high-pass filter makes it easy to remove unwanted noise from the bass frequencies that plague recording and mixing.
• Switchable unbalanced send/return inserts make it possible to add a compressor, EQ, or your favorite processing gear before hitting the output transformer.
• The classic Warm Audio “tone” control alters the input transformer impedance from 1200Ω to 300Ω, adding “air” or “sheen” to the top end - great for ribbons or “darker” mics.
• The WA73 also includes critical preamp features like 48V phantom power, instrument & line-level inputs, XLR/TRS input/output options, and polarity inversion to handle varying recording demands.

TECHNICAL SPECIFICATIONS WA273

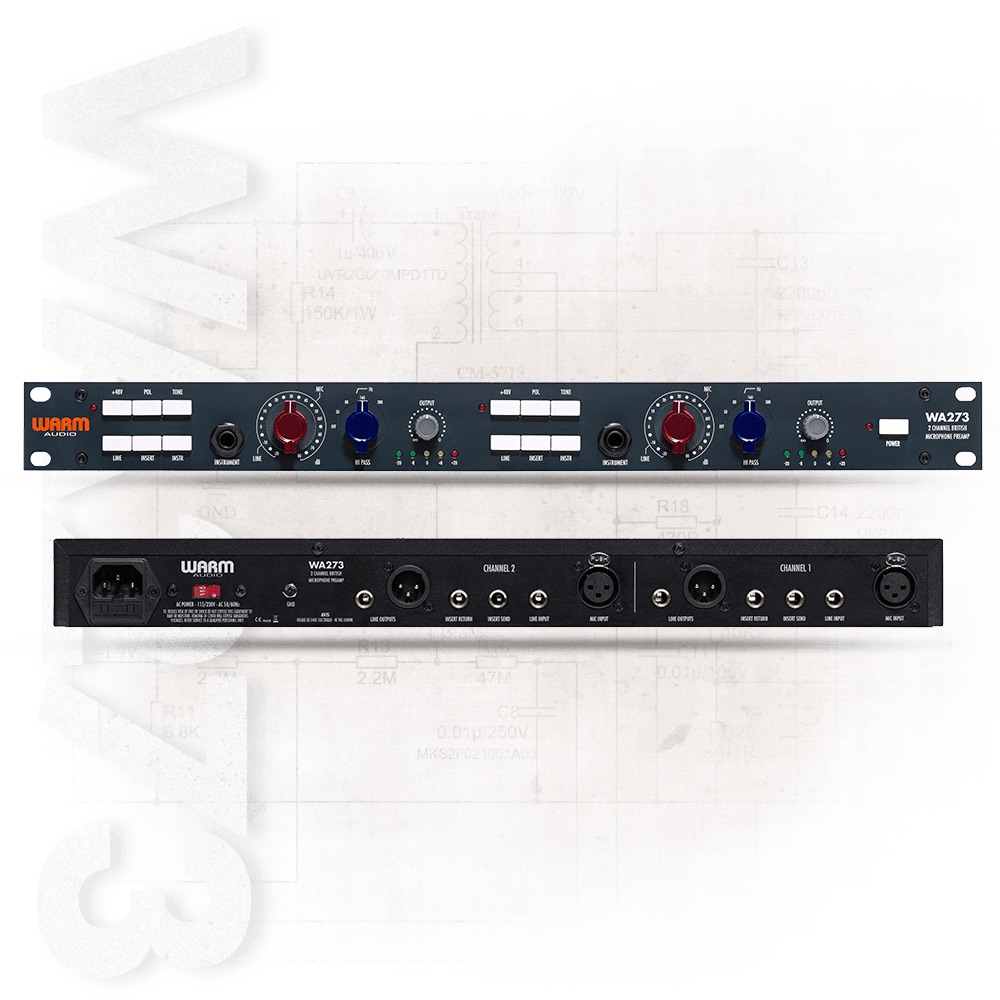

Product Description & External Specs (Per Channel)

• Dual-Channel, Class A, '73-Style British Console Microphone Preamp
• Polarity Switch
• 48v Phantom Power
• 4 Position Inductor Based High Pass Filter - 50, 80, 160, 300 Hz
• XLR Mic Input
• Line Level TRS Input
• TS (Unbalanced) Send/Receive Insert Jacks
• XLR & TRS Line Level Outputs
• Direct In, Instrument Input
• Output Control
• LED Level Indication
• 19" Rack-Mountable
• Ground Lift Switch
• Internal IEC 115v/230v Power Inlet
• Dual Chassis Depth: 11” | 27.5 cm
• 5-Year Warranty

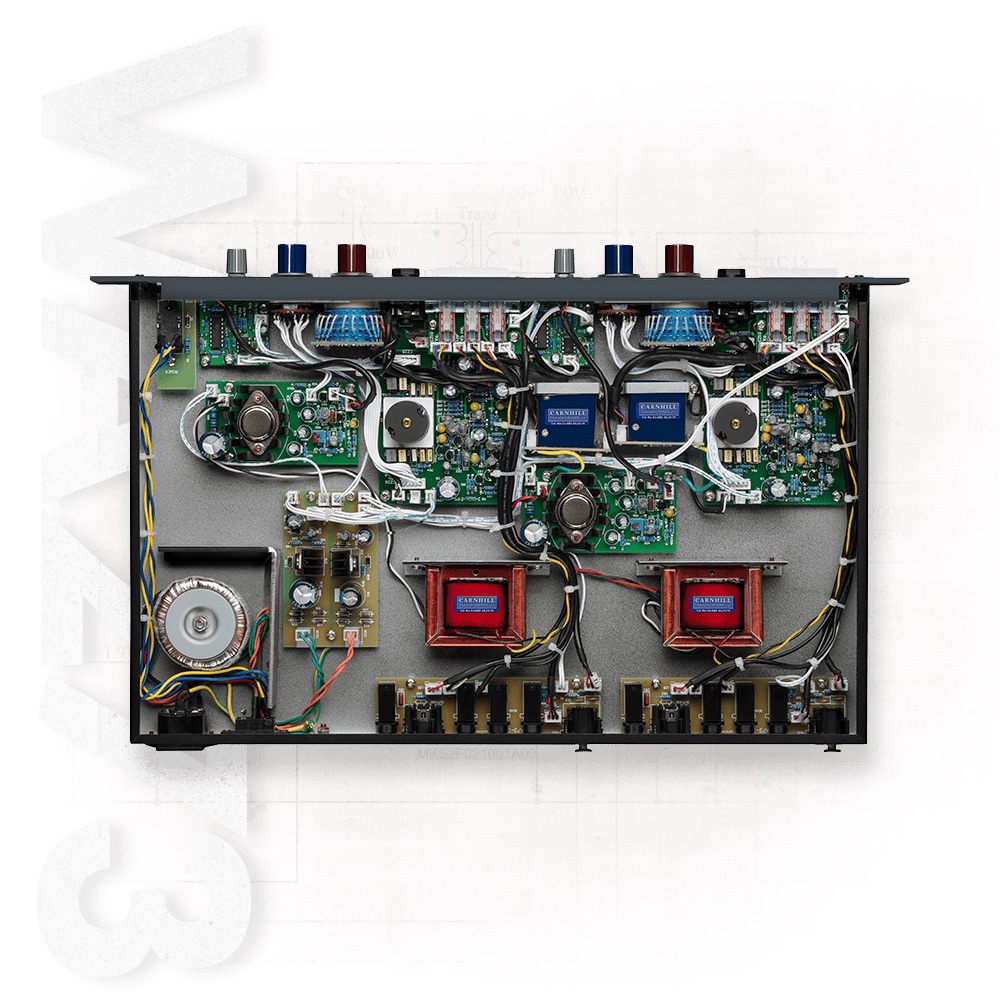

Components & Internal Specs (Per Channel)

• UK-Made Carnhill Transformers
• Hand-Wired, Hand-Assembled, Fully Discrete

Performance Specs (Per Channel)

• 80 dB Of Gain - Resistor Stepped Gain Switch
• Frequency Response 20 Hz - 20 kHz +/-.5 dB
• Tone Button - Changes Input Transformer Impedance For Varying Tone
• Polarity Switch
